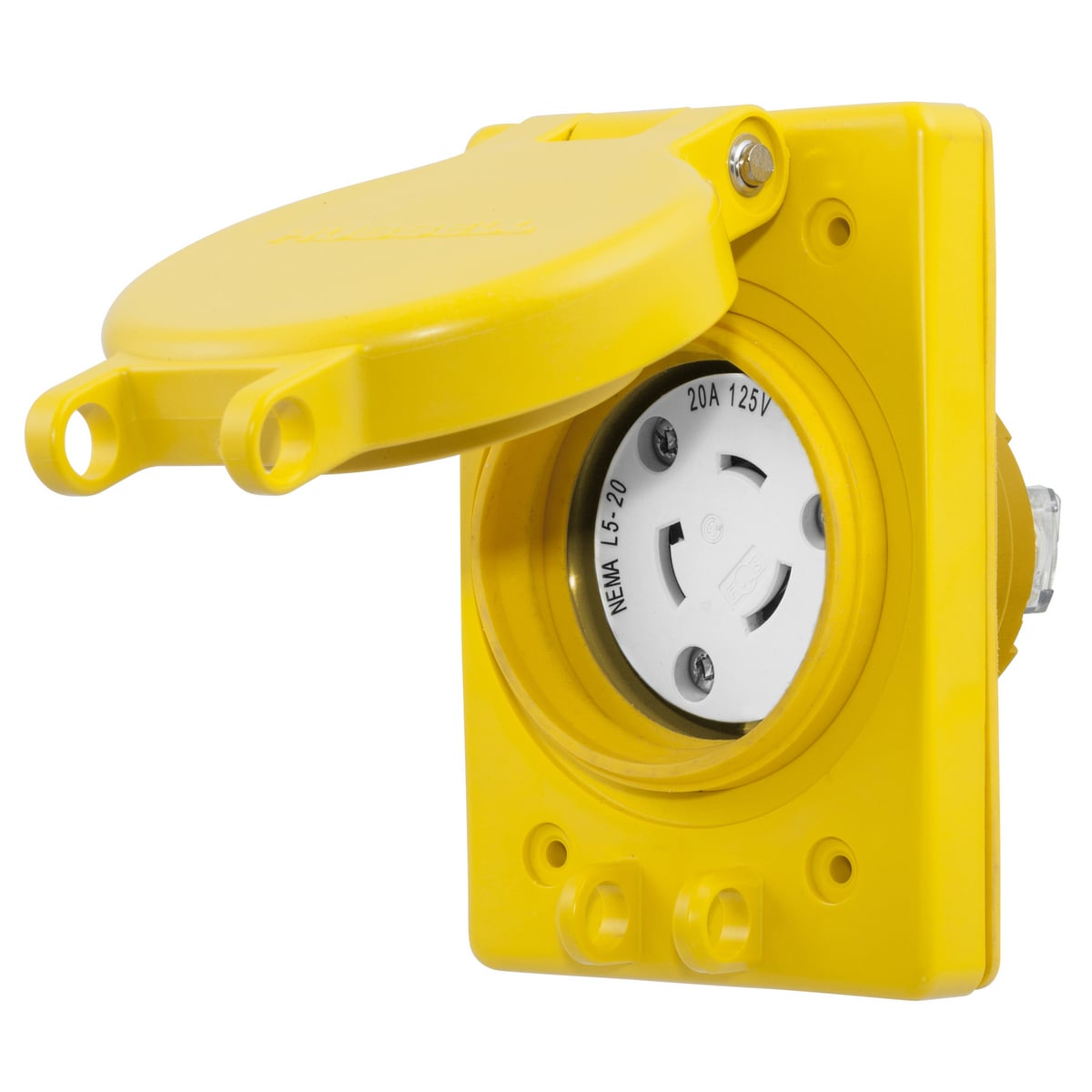

HBL67W47 1-Phase Grounding Standard Single Watertight Screw Mount Locking Receptacle With Lift Cover, 125 V AC, 20 A, 2 Poles, 3 Wires, Yellow
- MFR:
- Hubbell Wiring Device-Kellems
- MFR #:
- HBL67W47
- UPC:
- 783585456669
- Item #:
- 331005
HBL67W47 1-Phase Grounding Standard Single Watertight Screw Mount Locking Receptacle With Lift Cover, 125 V AC, 20 A, 2 Poles, 3 Wires, Yellow
- MFR #:
- HBL67W47
- UPC:
- 783585456669
- Item #:
- 331005
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$210.53
each
Hubbell Watertight receptacles with lift covers provide an impact resistant UL Type 4X seal combined with corrosion resistant metallic components. These universal covers can house any NEMA listed straight blade receptacles as well as any NEMA listed Twist-Lock receptacles. The Watertight receptacles can either be mounted to FD/FS boxes (see page C-9) or panel mounted to a flat surface. Combined, this makes a diversified product with the high quality needed in industrial, wet and wash down applications.
Manuals and Documentation
| Catalog Number | HBL67W47 |
| Manufacturer | Hubbell Wiring Device-Kellems |
| Brand | Hubbell Wiring Device - Kellems |
| Country of Origin | United States |
| Made in USA | Yes |
| Amperage Rating | 20 |
| Application | Industrial/Commercial |
| Color | Yellow |
| Connection | Screw Terminals |
| Material | Elastomer/Composite |
| Mounting | Screw |
| NEMA Rating | 5 |
| Number of Poles | 2 |
| Number of Wires | 3-Wire |
| Phase | 1 |
| Special Features | Standard Product |
| Standard | IP69K In Use;Meets NEMA WD-1, WD-6 And ANSI Standards |
| UPC | 783585456669 |
| GTIN | 00783585456669 |
| Item Type | Receptacle |
| Size | 4.56 in x 3.10 in x 2.92 in |
| Environmental Conditions | Watertight |
| Voltage Rating | 125 |
| Wattage | 2500 W |
| Wire Size | #18 AWG to #8 AWG |
