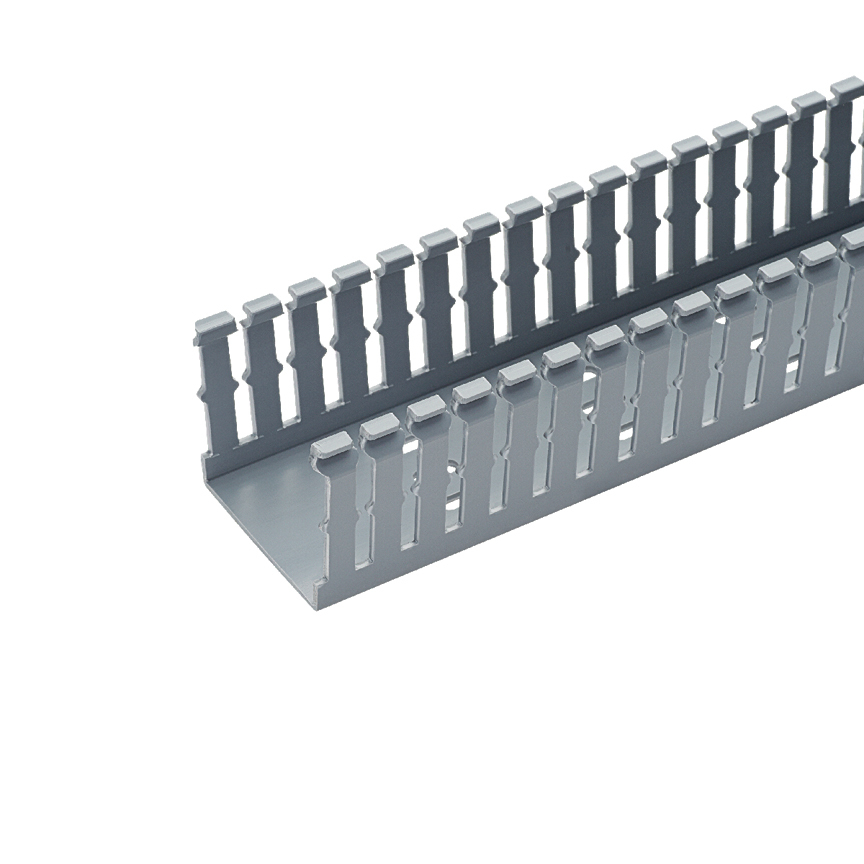

The F1.5X1.5LG6-A Panduct Lead-Free PVC Narrow Slot Adhesive Wiring Duct features a narrow slot/finger design that closely matches the spacing of high-density components. Upper and lower scorelines allow for easy finger/sidewall section removal. UL 94 flame class of V-0 with a UL recognized continuous-use temperature up to 122F (50C). Mounting holes provided. Lead-free PVC. 1.5 x 1.5 (38.1 mm x 38.1 mm) and 6' (1.83 m) long. Cover sold separately. Color Light Gray.
Manuals and Documentation
| Catalog Number | F1.5X1.5LG6-A |
| Manufacturer | Panduit |
| Brand | Panduit |
| Country of Origin | United States |
| Made in USA | Yes |
| Application | Narrow slot/finger design provides more slots to fit the spacing of high-density terminal block applications |
| Color | Light Gray |
| Connection | Mounting Holes with Adhesive |
| Material | PVC |
| Mounting Holes | On Centerline |
| Slot Pitch | 0.2 IN |
| Slot Style | Slotted |
| Standard | RoHS Compliant, UL Recognized, CE Compliant |
| UPC | 074983338115 |
| GTIN | 00074983338115 |
| Item Type | Base Wiring Duct |
| Width | 1.75 |
| Width UOM | Inch |
| Size | 1.50 x 1.50 |
