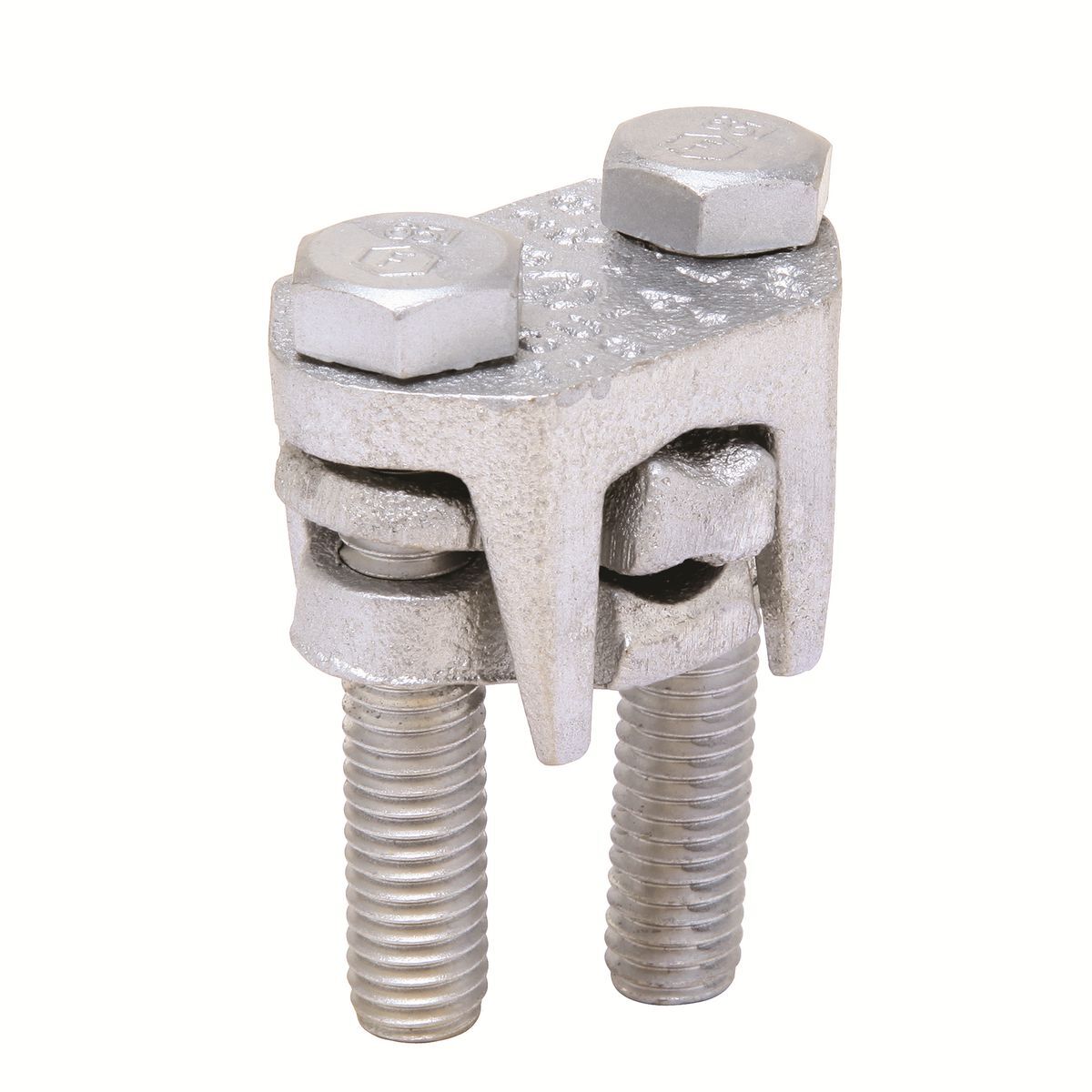

KVSU34 Compact High Strength Universal Mechanical Connector, 336.4 to 500 kcmil, 4 AWG Solid to 500 kcmil Commercial Aluminum/Solid/Stranded Copper Conductor, 1/2 in Bolt, Copper Alloy
- MFR:
- Burndy, a Hubbell affiliate
- MFR #:
- KVSU34
- UPC:
- 781810083307
- Item #:
- 330677
KVSU34 Compact High Strength Universal Mechanical Connector, 336.4 to 500 kcmil, 4 AWG Solid to 500 kcmil Commercial Aluminum/Solid/Stranded Copper Conductor, 1/2 in Bolt, Copper Alloy
- MFR #:
- KVSU34
- UPC:
- 781810083307
- Item #:
- 330677
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$285.19
each
Manuals and Documentation
| Catalog Number | KVSU34 |
| Manufacturer | Burndy, a Hubbell affiliate |
| Brand | BURNDY |
| Country of Origin | Mexico |
| Made in USA | No |
| Application | For All Combinations Of Copper, Aluminum, ACSR, AAAC And 5005 |
| Special Features | Features: Compact, Tin Plated High Strength Copper Alloy Two-Piece Connector With Spacer And Tin-Plated Silicon Bronze DURIUM Hardware, Recommended For Heavy Duty Connections, Spacer Separates Dissimilar Conductors And Provides Long Contact Length, Neoprene Ring Prevents Loss Of Shorter Bolt During Installation, Longer Peened Bolt Permits Swivel Action For Easier Installation, Use Of PENETROX Joint Compound Recommended With Aluminum And ACSR, Conductor Type: Run And Tap: Commercial Stranded Copper, Commercial Stranded Aluminum, ACSR, Solid Copper, 5005, Solid Copperweld, AAAC, Steel, Nominal Diameter, Stud/bolt Size: 1/2 IN, Installation Torque: 375 IN-LB, Length: 1-1/2 IN, Width: 2-1/4 IN, Height: 3 IN |
| UPC | 781810083307 |
| GTIN | 00781810083307 |
| Item Type | KVS, Compact, Universal |
