XUB2BKSNM12T XU Series 3-Wire Axial Corrosion-Resistant Dusttight/Watertight Photo Electric Sensor, Cylindrical Shape, 65.62 ft, 1 ms Response, Solid State Output
- MFR:
- Telemecanique Sensors
- MFR #:
- XUB2BKSNM12T
- UPC:
- 785901791799
- Item #:
- 33027
XUB2BKSNM12T XU Series 3-Wire Axial Corrosion-Resistant Dusttight/Watertight Photo Electric Sensor, Cylindrical Shape, 65.62 ft, 1 ms Response, Solid State Output
- MFR #:
- XUB2BKSNM12T
- UPC:
- 785901791799
- Item #:
- 33027
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |

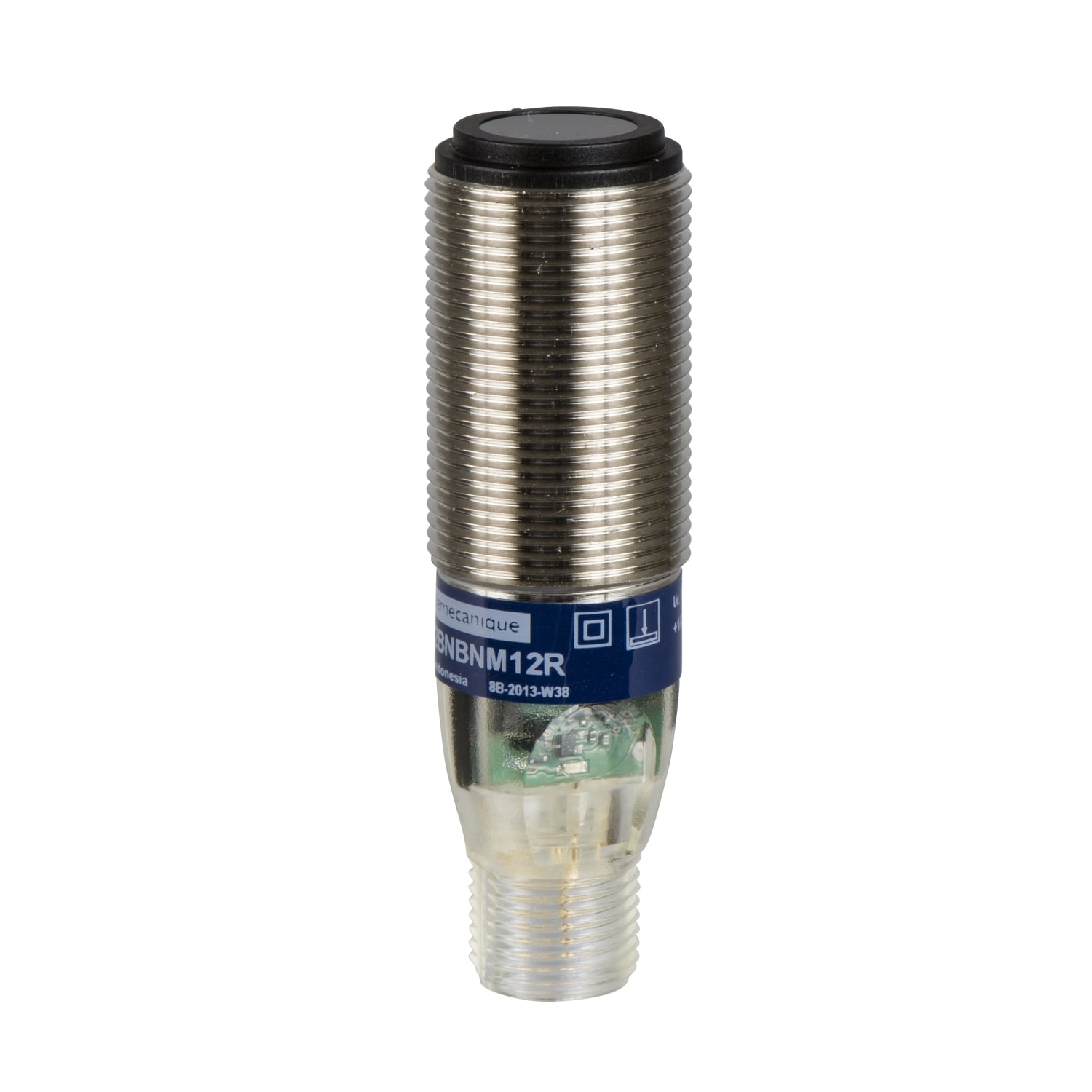

This design 18 single mode (thru-beam system) photo-electric transmitter has a nickel plated brass case. It has a supply voltage of 12V to 24V DC. This mono-mode cylindrical photoelectric emitter has a metallic body, is mountable directly on a surface or bracket, thanks to its outer thread and twin nuts. Corrosion-resistant and non-magnetic nickel plated brass provides high robustness to the sensor. 1 LED display allows to identify status of the sensor. IP65, IP67 and IP69K protection makes this product ready for the harshest environments. It can operate in very cold (-25C) and hot environments (+55C). It has a standard M12 connector, compatible with all existing market sensor cabling. It provides double insulation for better people and system protection from electrical shocks. It is CSA and UL certified.
Manuals and Documentation
| Catalog Number | XUB2BKSNM12T |
| Manufacturer | Telemecanique Sensors |
| Brand | Telemecanique |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Mexico |
| Made in USA | No |
| Application | - |
| Connection | 1 male connector M12, 4 pins |
| Enclosure | IP65 DOUBLE INSULATION CONFORMING TO IEC 60529-IP67 DOUBLE INSULATION CONFORMING TO IEC 60529-IP69K DOUBLE INSULATION CONFORMING TO DIN 40050,NICKEL PLATED BRASS |
| Operating Cycles | <= 500 Hz |
| Output | Discrete;Solid state |
| Sensing Range | 15-15 M THRU BEAM NEED A RECEIVER,> 16.4...49.21 FT (> 5...15 M) |
| Special Features | 1 LED green)supply on |
| Standard | IP65 DOUBLE INSULATION IEC 60529-IP67 DOUBLE INSULATION IEC 60529-IP69K DOUBLE INSULATION DIN 40050,UL-CSA-CE |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=872820&lang=en-us |
| UPC | 785901791799 |
| GTIN | 03389110149616 |
| Item Type | General purpose single mode;Thru beam;Cylindrical M18;Photo-electric sensor transmitter |
| Size | 0.71 |
| Environmental Conditions | WATER TIGHT, DUST TIGHT AND CORROSION RESISTANT (INDOOR) |
| Operating Temperature | -25-55 A Degrees C |
| Voltage Rating | 12...24 V DC reverse polarity protection |
