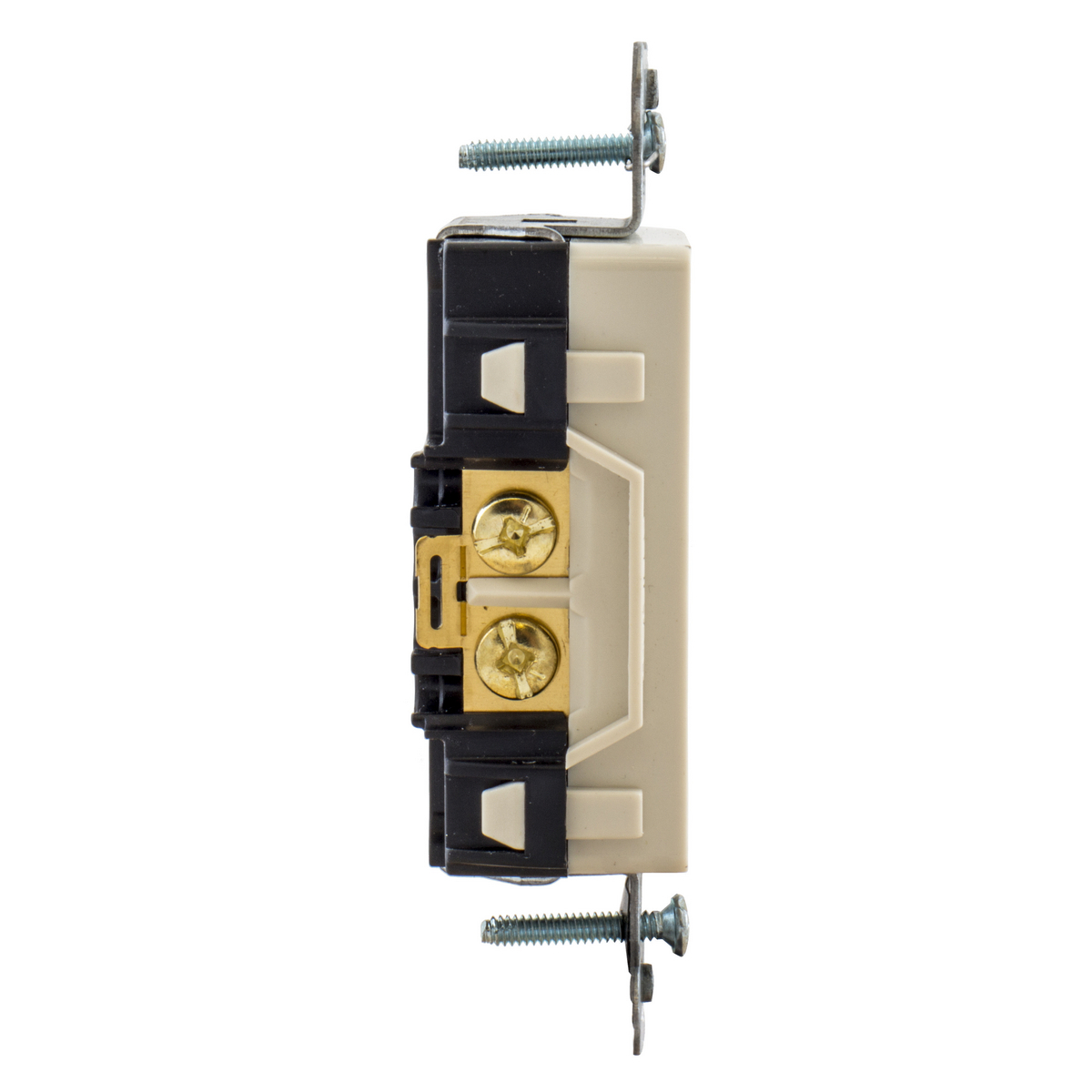

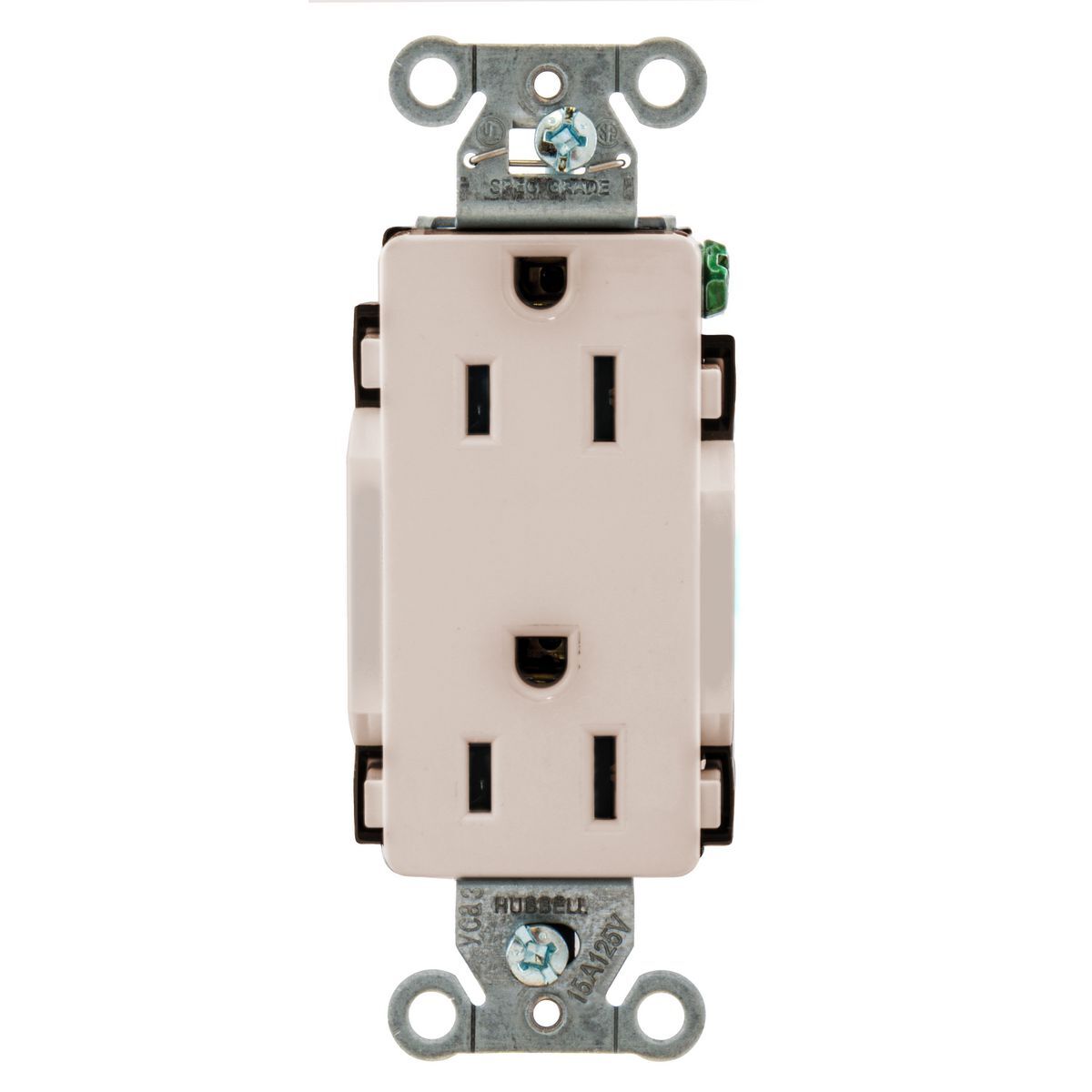

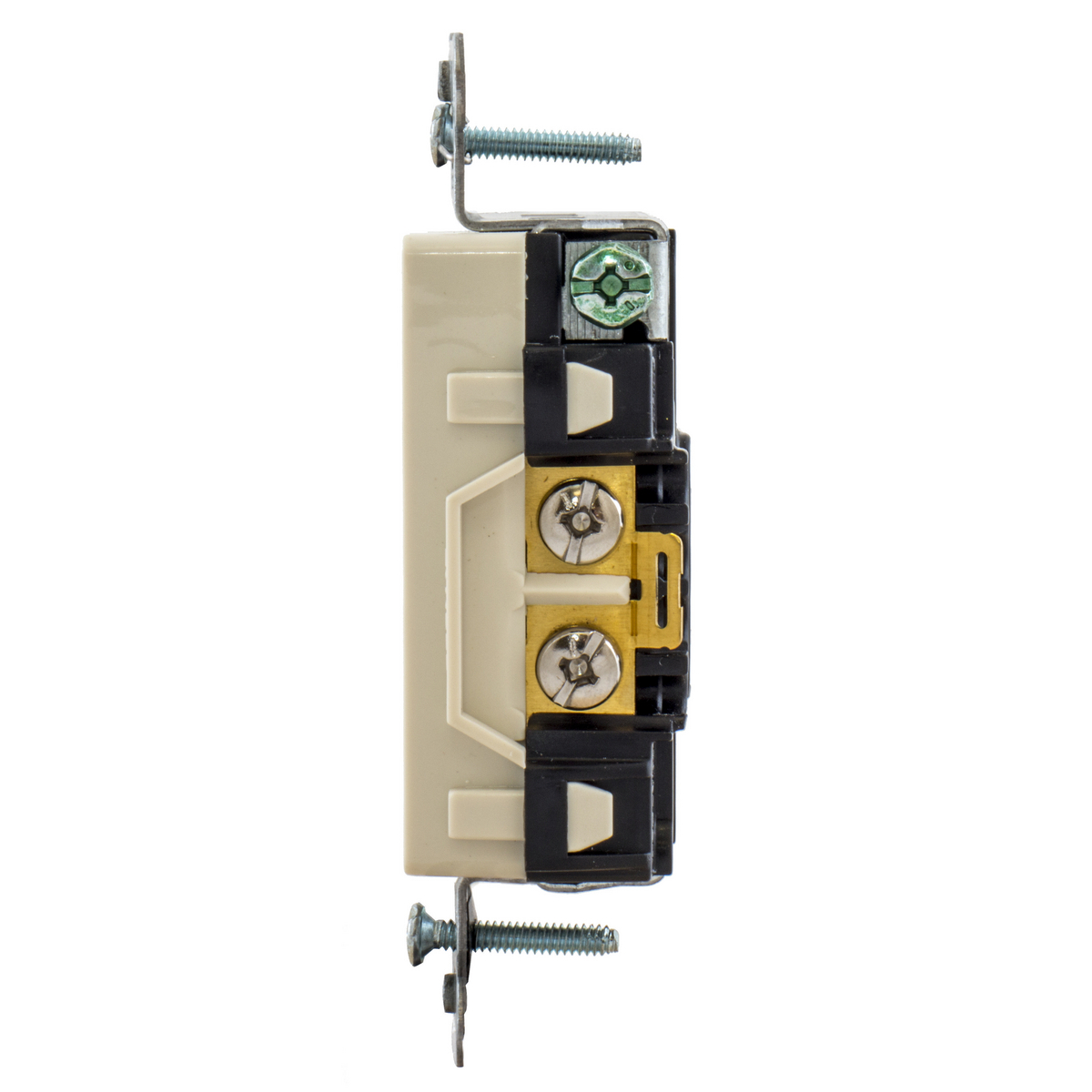

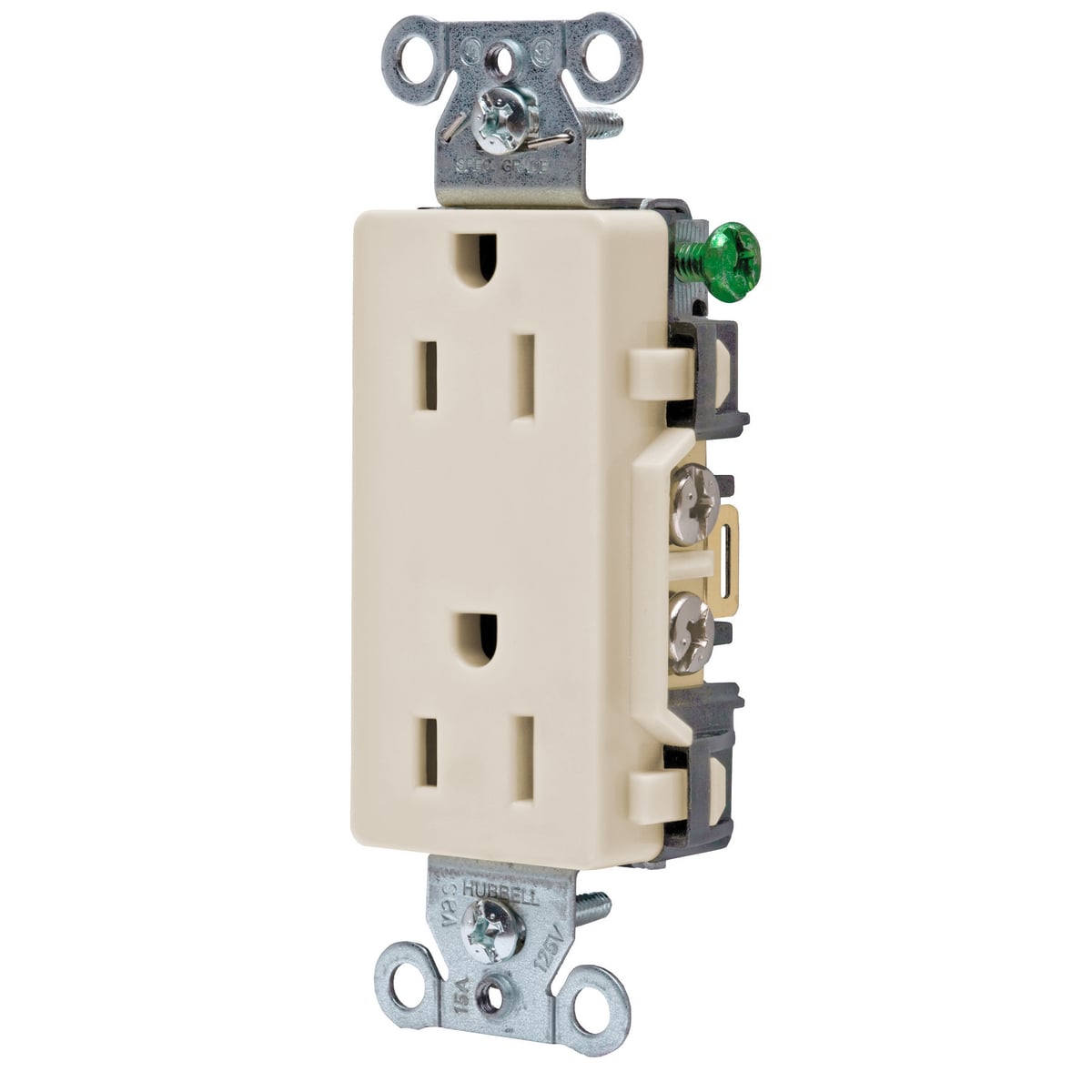

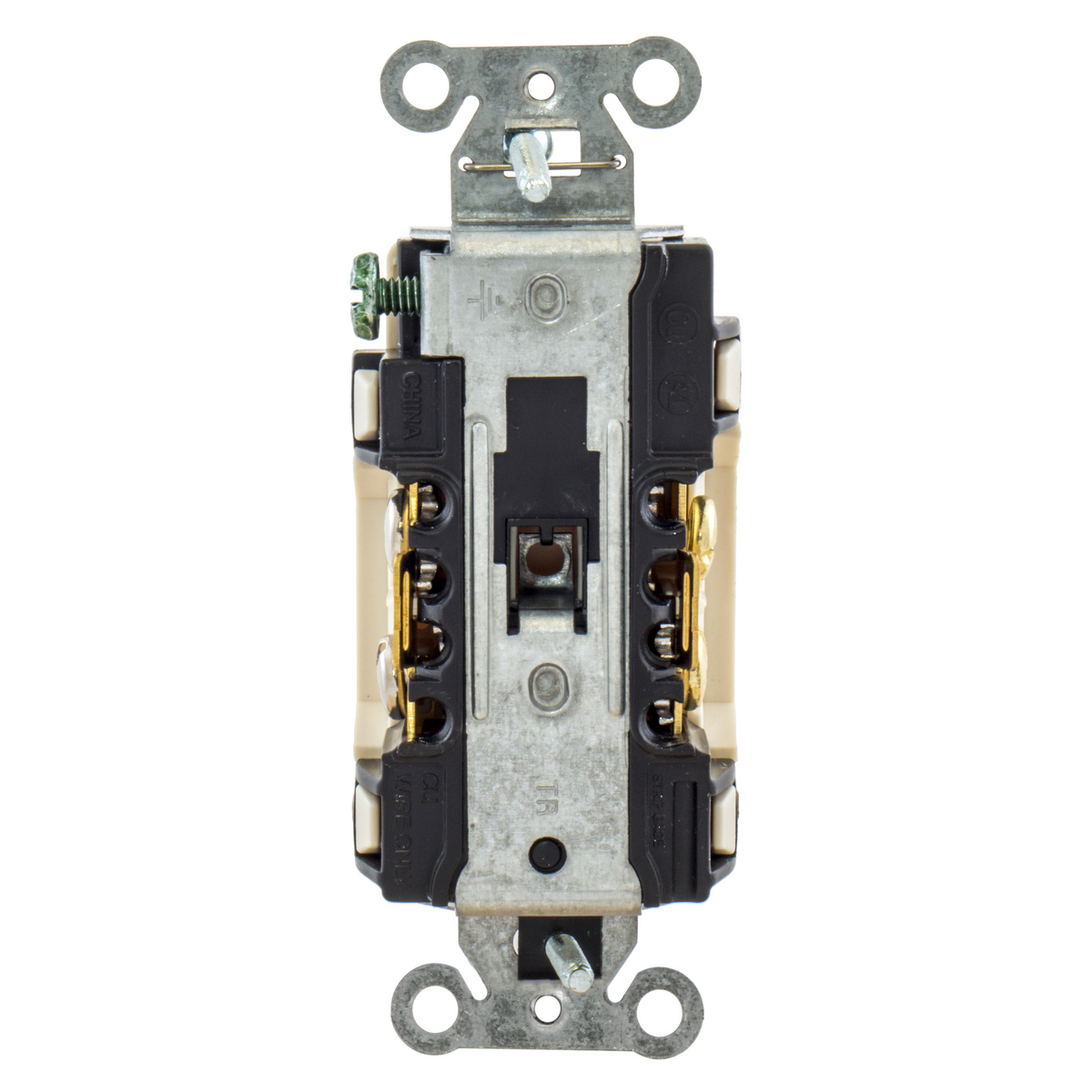

DR15LA 1-Phase Decorator Duplex Standard Screw Mount Straight Blade Receptacle, 125 V AC, 15 A, 2 Poles, 3 Wires, Light Almond
- MFR:
- Hubbell Wiring Device-Kellems
- MFR #:
- DR15LA
- UPC:
- 783585127859
- Item #:
- 330226
DR15LA 1-Phase Decorator Duplex Standard Screw Mount Straight Blade Receptacle, 125 V AC, 15 A, 2 Poles, 3 Wires, Light Almond
- MFR #:
- DR15LA
- UPC:
- 783585127859
- Item #:
- 330226
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
Manuals and Documentation
| Catalog Number | DR15LA |
| Manufacturer | Hubbell Wiring Device-Kellems |
| Brand | Hubbell Wiring Device - Kellems |
| Country of Origin | China |
| Made in USA | No |
| Amperage Rating | 15 |
| Application | Commercial Specification Grade |
| Color | Light Almond |
| Connection | Back and Side Wired |
| Material | Nylon |
| Mounting | Screw |
| NEMA Rating | 5 |
| Number of Poles | 2 |
| Number of Wires | 3-Wire |
| Phase | 1 |
| Special Features | Self Grounding |
| Standard | Certified to CSA, C22.2, No. 42;Fed. Spec. W-C-596;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186 |
| UPC | 783585127859 |
| GTIN | 00783585127859 |
| Item Type | Standard Duplex |
| Size | 1.29 in x 1.06 in x 3.28 in |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Voltage Rating | 125 |
| Wattage | 1,875 W |
| Wire Size | #14 AWG to #10 AWG |
| Cross Reference Products | Bryant DRS15LA|EatonWD 6252LA|Leviton 16252-T |
