Telemecanique

XS8C2A1MAU20 OsiSense XS Fixed Flat Form Proximity Sensor, Inductive, Discrete Output, 1NO Contact, 20 to 264 VAC/VDC, 24 to 240 VDC, 24 to 240 VAC

MFR:
Telemecanique Sensors
MFR #:
XS8C2A1MAU20
UPC:
785901975434
Item #:
330211

Availability

Location Available Qty
Available Available to Order
$206.29 each

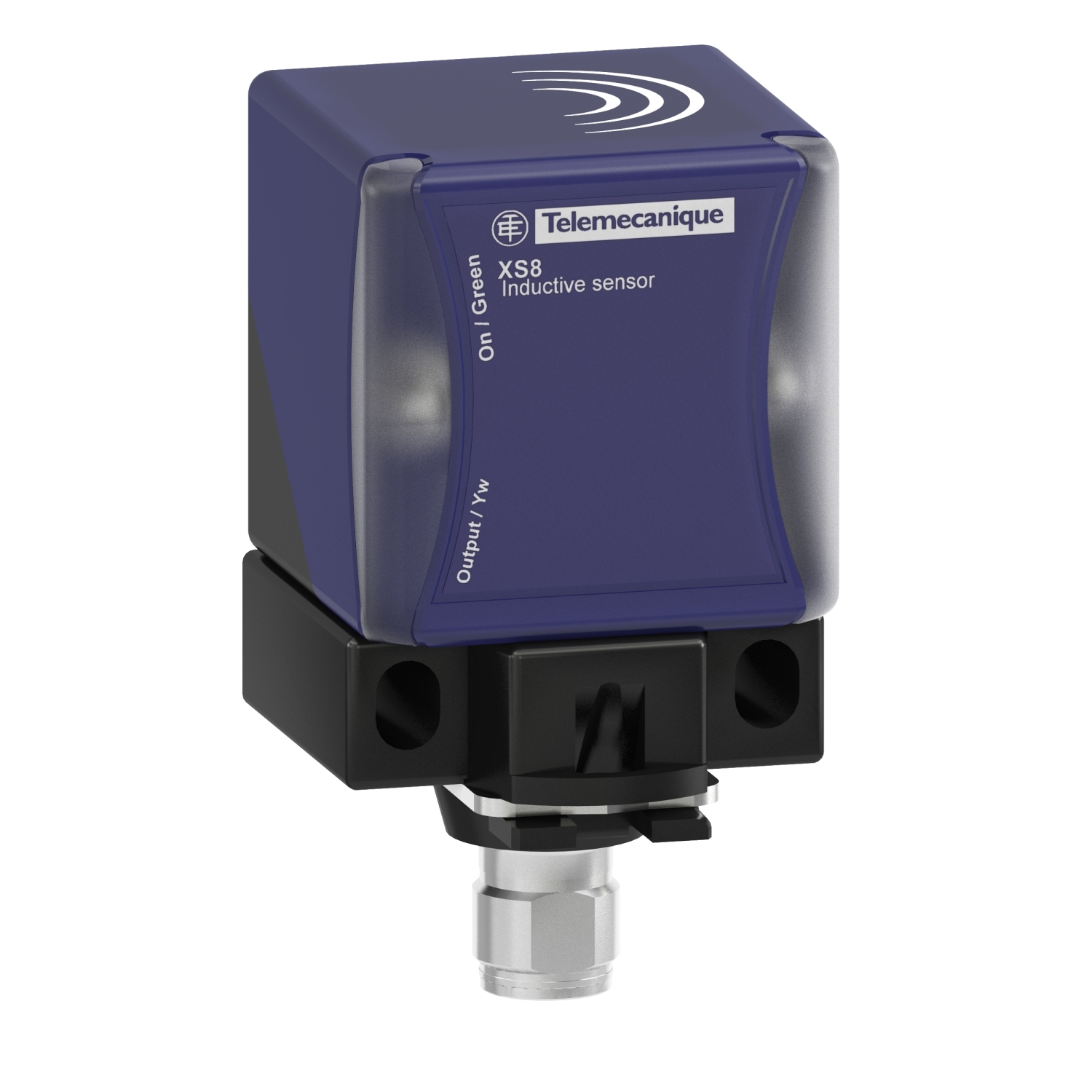

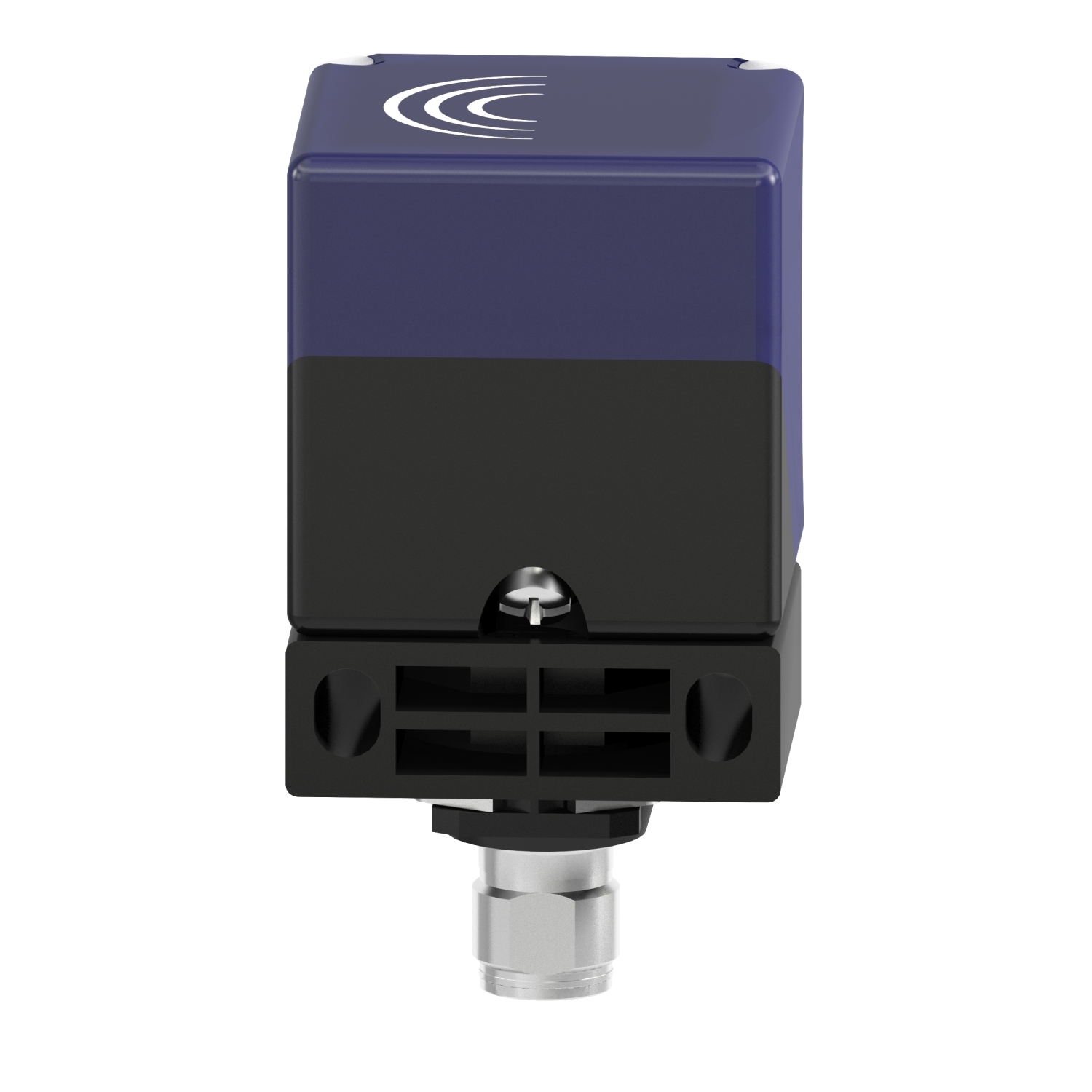

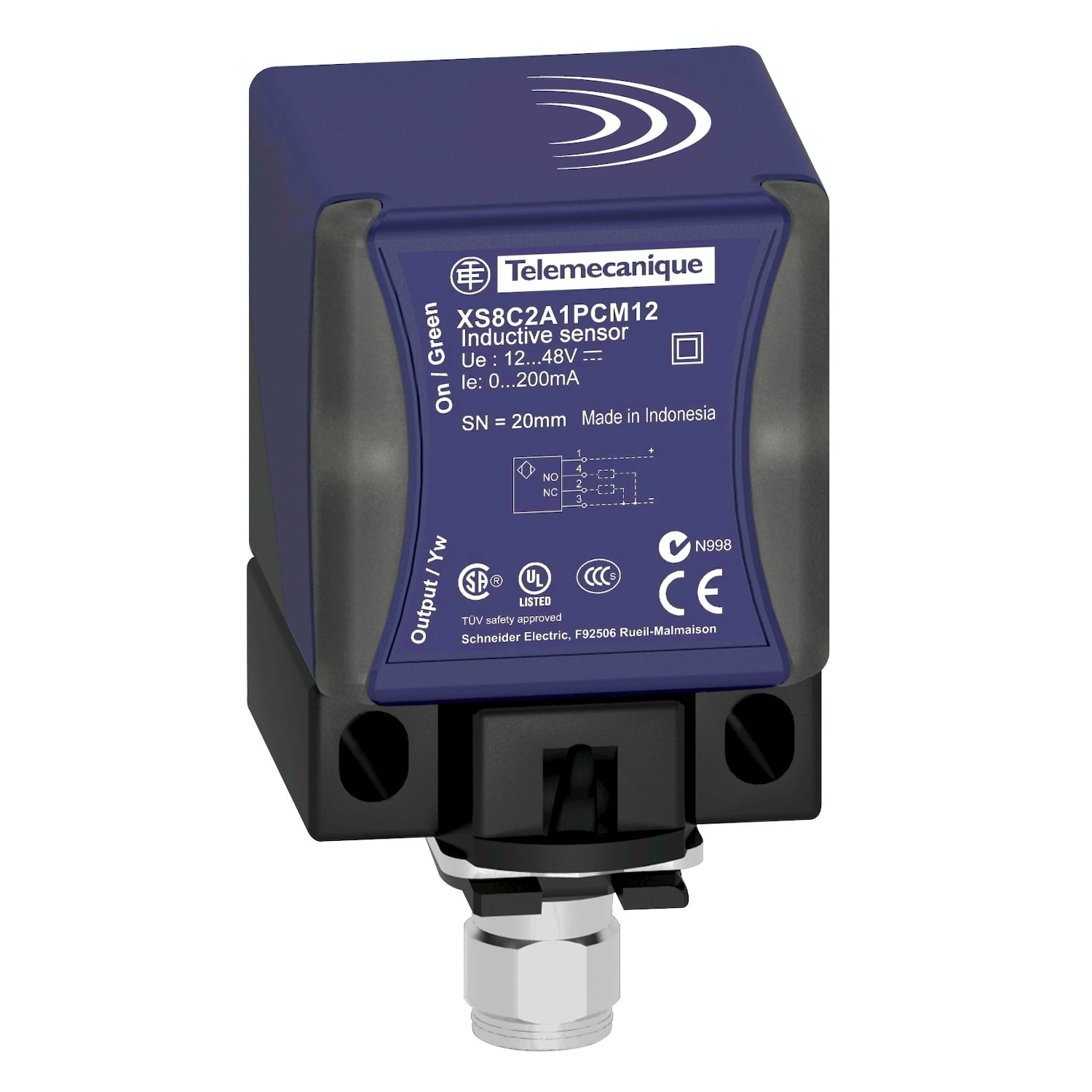

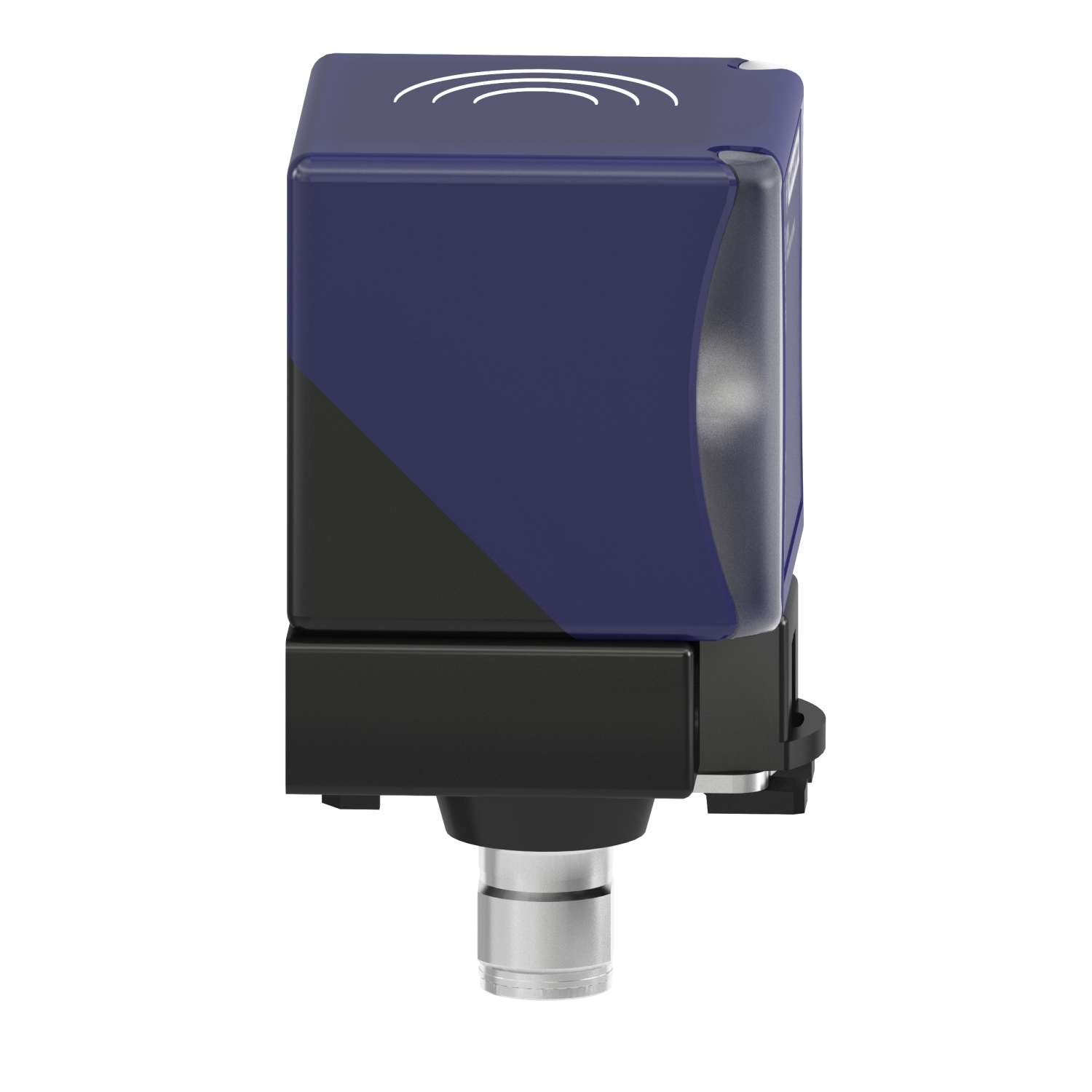

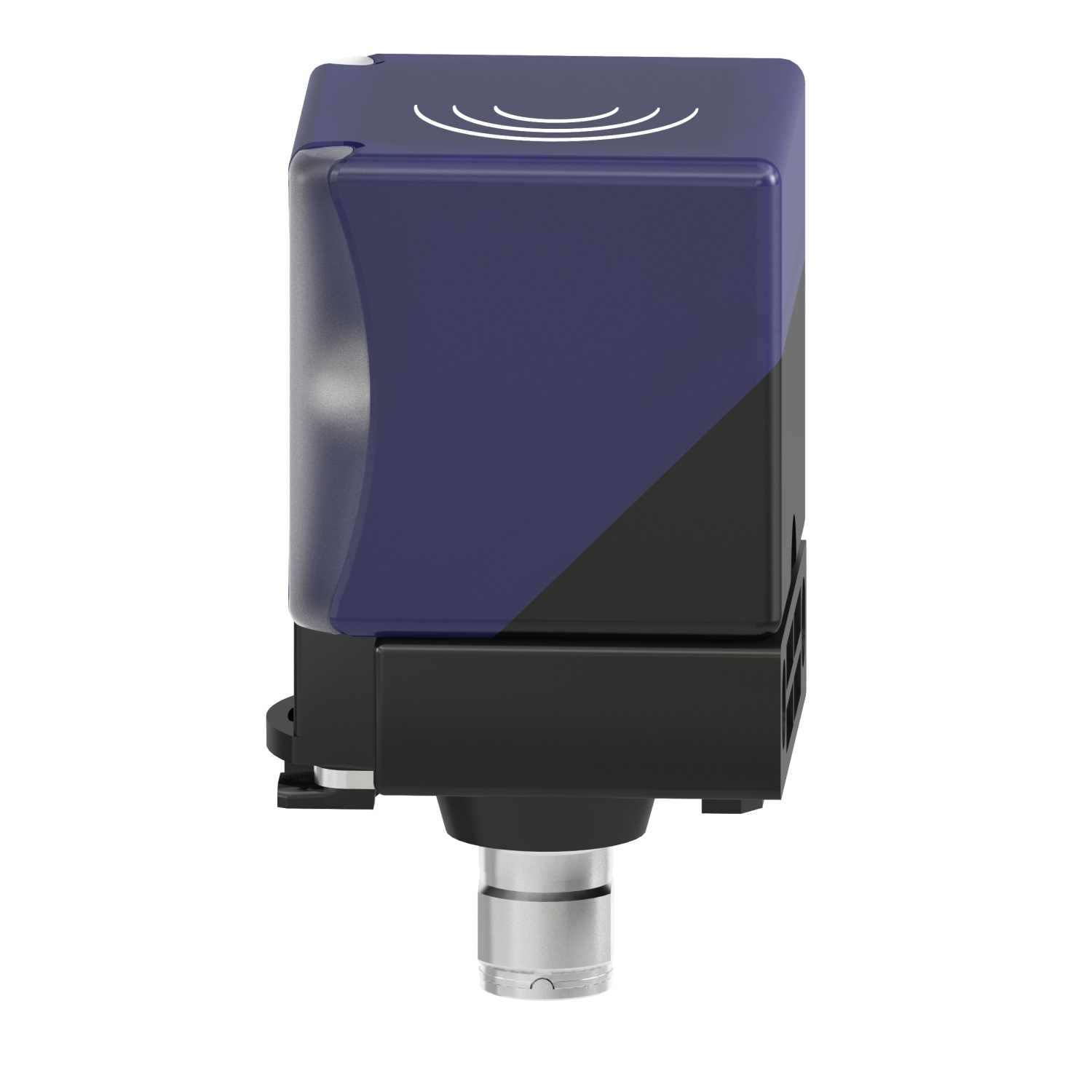

This XS turret head (40 x 40 x 70 mm) with an inductive proximity sensor has a PBT case. It has a supply voltage of 24V to 240V AC/DC. This general purpose flat inductive proximity sensor has an increased range. It is mountable directly on a surface, thanks to 4 screws fixing points. It provides mechanical resistance and chemical withstand thanks to PBT case. It has a yellow LED for output status indication for easier sensor setup and troubleshooting. IP67 protection makes this product ready for the harshest environments. It can operate in very cold (-25C) and hot environments (+70C). It features double insulation for better people and system protection from electrical shocks. Its increased sensing range makes it ideal for process where precise circulation of objects is not possible. It is CCC, ECOLAB, CSA, UL certified.

Manuals and Documentation
Catalog Number XS8C2A1MAU20
Manufacturer Telemecanique Sensors
Brand Telemecanique
Warranty Description Contractual Warranty:18 months
Country of Origin France
Made in USA No
Application -
Connector Male connector 1/2"20 UNF, 3 pins
Enclosure PBT
Indicator Supply on 1 LED green);output state 1 LED yellow)
Material Plastic
Mounting Flush
Sensing Range 20 MM,> 0.59...1.57 IN (> 15...40 MM)
Sensor 40 MM,40 MM,INDUCTIVE PROXIMITY SENSOR
Special Features PLASTIC
Standard IP67 conforming to IEC 60529;IP65 conforming to IEC 60529;IP69K conforming to DIN 40050;CE
Supply Voltage 24...240 V AC 50/60 Hz;24...240 V DC
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=181658550&lang=en-us
UPC 785901975434
GTIN 03389119057929
Item Type Inductive proximity sensor;Form 40 x 40 x 70
Operating Temperature -25-70 A Degrees C
