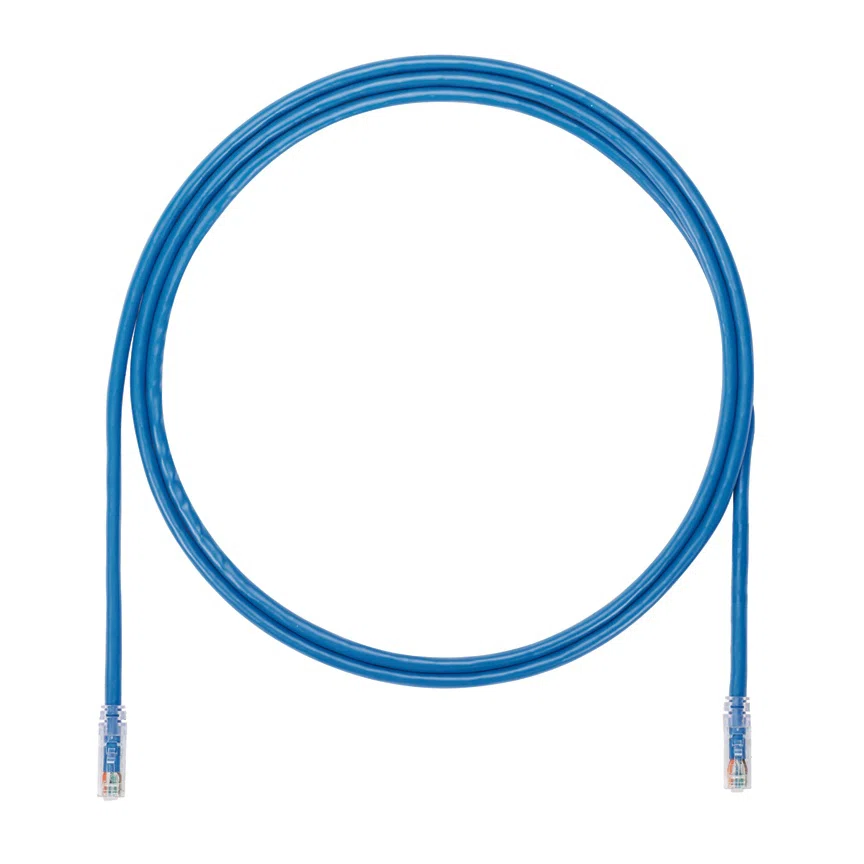

UTP6A2MBU PanNet TX6A 10Gig Patch Cord, Cat 6A Class EA, 24 AWG U/UTP Copper Conductor, Modular Plug Connector, 2 m L Cord, Blue

MFR:
Panduit
MFR #:
UTP6A2MBU
UPC:
074983190539
Item #:
330184

Availability

Location Available Qty
Available Available to Order

Category 6A/Class EA, UTP patch cords shall be constructed of 24 AWG stranded copper cable with an enhanced performance modular plug on each end. Copper conductors in patch cable shall be twisted in pairs and separated by a quadrant separator. All four pairs shall be surrounded by MaTriX tape and a flame retardant jacket. The patent pending MaTriX tape shall suppress alien crosstalk and allow 10 Gbps transmission. Patch cord cable shall be offered in multiple colors and lengths for design flexibility with a strain relief boot on each modular plug. All patch cords shall be compatible with both T568A and T568B wiring schemes.

Manuals and Documentation

Features

  • 100% performance tested for wire map, next and return loss
  • Centered de-embedded plug
  • Integral pair manager
  • Flexible stranded cable
  • Robust 600 VAC rated construction
  • MaTriX technology
  • Superior headroom warranty
  • Flexible cable design
  • Center de-embedded plug
  • Integral pair manager
  • Patented tangle free latch
  • Slender strain relief boot
  • Robust construction
  • Provides identification of performance level, length and quality control number for future traceability
Manufacturer Part Number UTP6A2MBU
Brand Panduit®
Manufacturer Panduit
UPC 074983190539
EAN 0074983190539
Category Type Cat 6A Class EA
Color Blue
Conductor Size 24 AWG
Conductor Type U/UTP Copper
Connector Type Modular Plug
Cord Length 2 m
Jacket Color Blue
Temperature Rating 140 deg F
Type U/UTP CM
Alternative Part Number 10600299 | 10883645
Manufacturer Item Status Active
Country USA/Canada
Standards Approvals ANSI/TIA-1096-A | ANSI/TIA-568.2-D Category 6A | ARRA Compliant | BAA Compliant | CE Marked | CM Flammability Rated | IEC 60603-7 | IEEE 802.3af/802.3at/802.3bt Type 3 and Type 4 for PoE Compliant | RoHS Compliant | UL 1863 | Buy American Act Compliant | ISO 11801 Class EA | IEEE 802.3af, 802.3at, 802.3bt Type 3, Type 4 for PoE Compliant | CE Certified | CSA Approved
Application 10GBASE-T Ethernet, Data Center I/O Consolidation, Data Center Server Virtualization, Consolidation of Network Interconnects, Backbone Aggregation, Parallel Processing and High Speed Computing
