Telemecanique

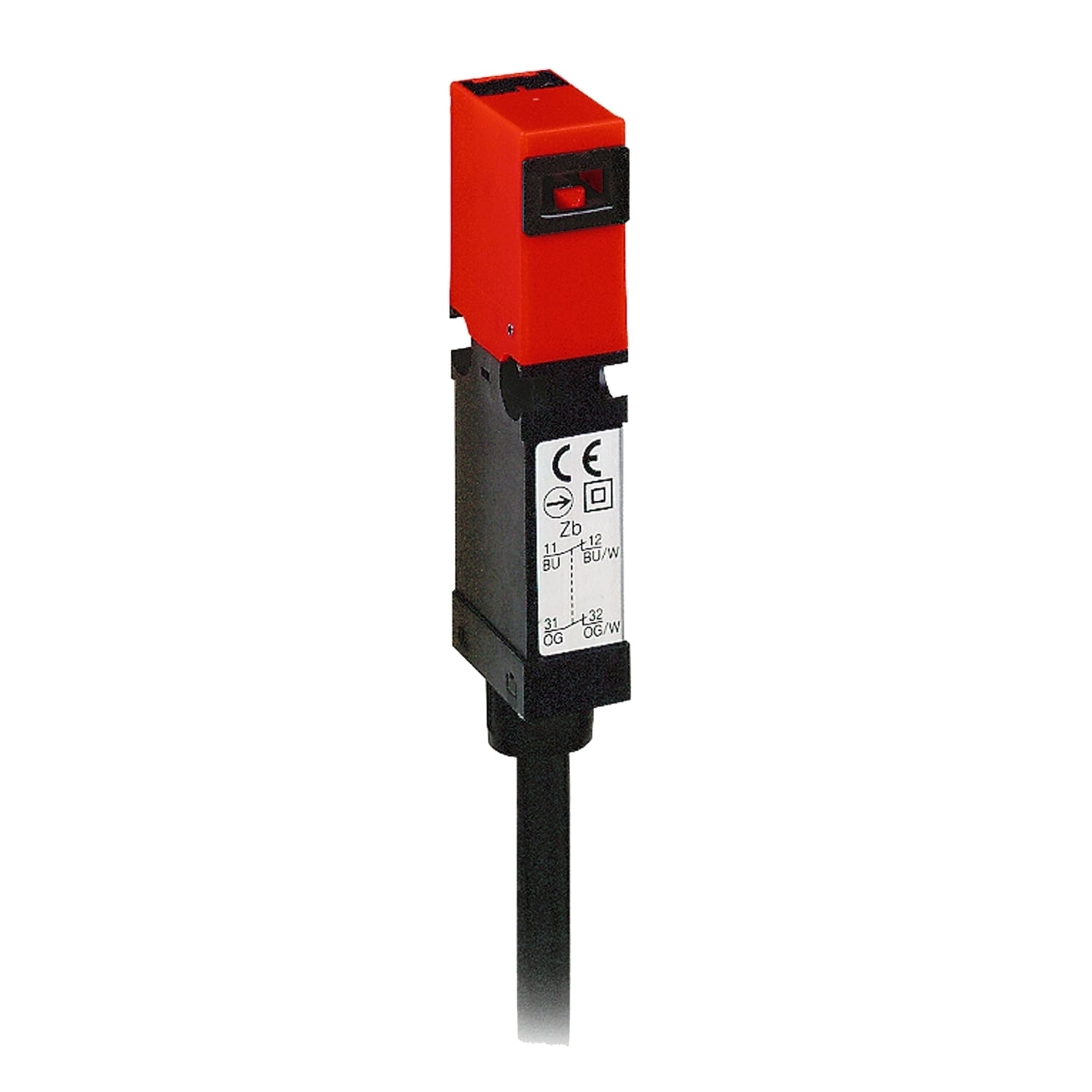

XCSMP70L5 Preventa Fixed Head Safety Interlock Switch, 300 V AC, 2.5 A, 50/60 Hz, 3 Poles

MFR:
Telemecanique Sensors
MFR #:
XCSMP70L5
UPC:
785901567912
Item #:
329769

Availability

Location Available Qty
Available Available to Order
$205.53 each

This XCSMP Key Operated Safety Switch for guard doors has a fixed head and a robust red coated polyamide compact body with a 5 meter pre-cabled, allowing for flexible installation. It has 1 normally open and 2 normally closed break-before-make (slow break) contacts. Its B10D reliability data is 5 000 000. Its IP67 degree of protection makes it ideal for heavy duty use in harsh conditions. It also complies with EN/ISO 14119, EN/IEC 60204-1, EN/IEC 60947-5-1, UL 508, CSA C22.2 No 14 standards. When associated and correctly connected to an appropriate safety control unit, it conforms to Category 4, performance level PL e, SIL 3 as described in EN/ISO 13849-1, EN/IEC 61508.

Manuals and Documentation
Catalog Number XCSMP70L5
Manufacturer Telemecanique Sensors
Brand Telemecanique
Warranty Description Contractual Warranty:18 months
Country of Origin France
Made in USA No
Action Slow-break, break before make
Application KEY OPERATED FIXED HEAD
Connection Pre-cabled
Contact Configuration 2 NC + 1 NO
Insulation Double insulated
Number of Poles 3
Operating Cycles 20 CYC/MN FOR MAXIMUM DURABILITY
Special Features PLASTIC,WITHOUT LOCKING OF ACTUATOR
Standard 50 GN 11 MS IEC 60068-2-27,6 GN 10-55 HZ)IEC 60068-2-6,EN/ISO 12100-CSA C22.2 NO 14-EN 1088/ISO 14119-EN/IEC 60947-5-1-UL 508-EN/IEC 60204-1,IP67 EN/IEC 60529 AND EN/IEC 60947-5-1,UL-CSA-CUL,CLASS II EN/IEC 61140
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=859750&lang=en-us
UPC 785901567912
GTIN 03389110107234
Item Type Safety switch
Size 1.18
Operating Temperature -25-70 A Degrees C
Voltage Rating 0.55 A 125 V, DC-13, Q300 EN/IEC 60947-5-1-0.27 A 250 V, DC-13, Q300 EN/IEC 60947-5-1-0.75 A 240 V, AC-15, C300 EN/IEC 60947-5-1-1.5 A 120 V, AC-15, C300 EN/IEC 60947-5-1
