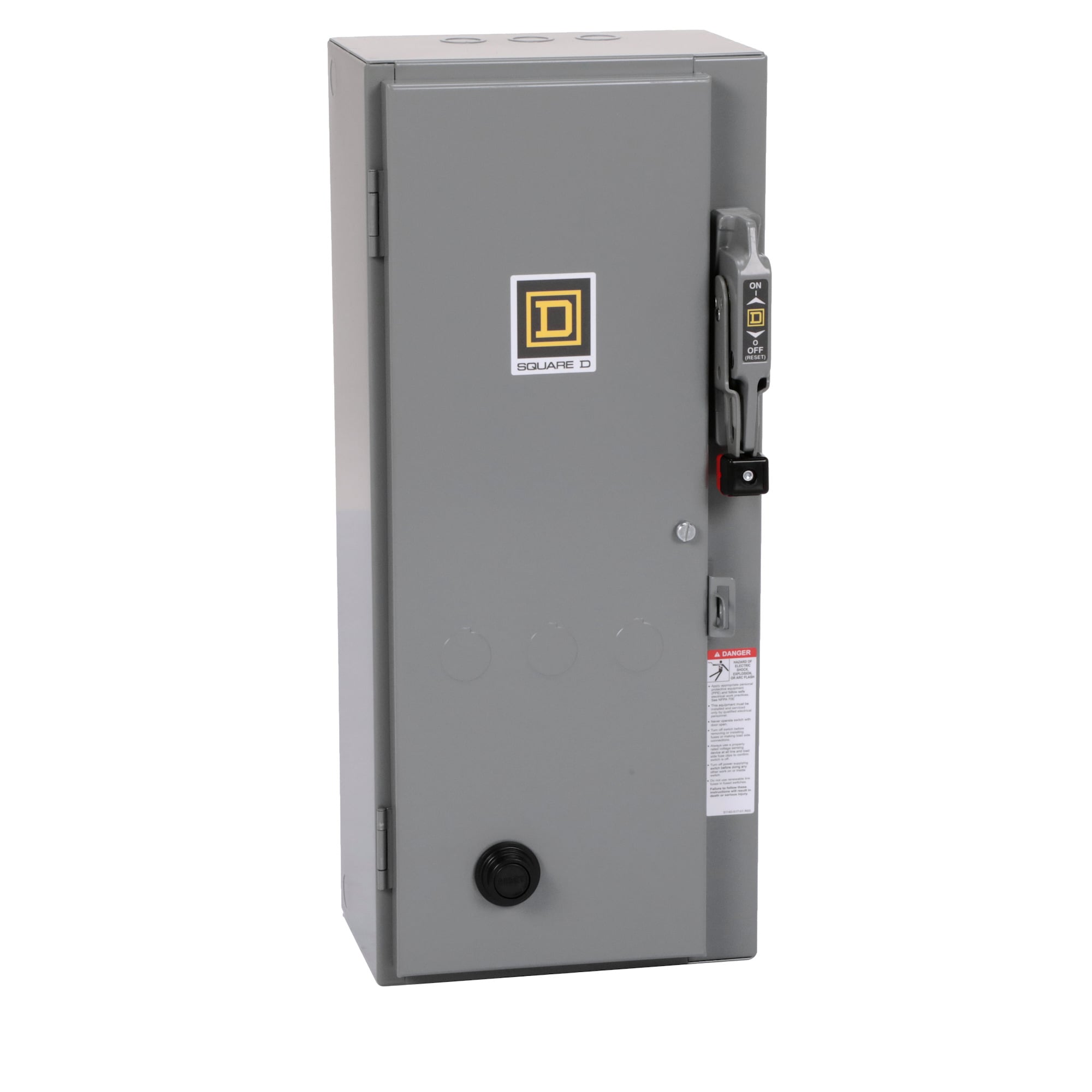

8538SCG61V02 Type S Full Voltage Size 1 NEMA Combination Magnetic Starter With Non-Fusible Disconnect Switch, 110/120 VAC V Coil, Non-Reversing Action, 2 Poles, NEMA 1 Enclosure
- MFR:
- Schneider Electric
- MFR #:
- 8538SCG61V02
- UPC:
- 785901959496
- Item #:
- 329734
8538SCG61V02 Type S Full Voltage Size 1 NEMA Combination Magnetic Starter With Non-Fusible Disconnect Switch, 110/120 VAC V Coil, Non-Reversing Action, 2 Poles, NEMA 1 Enclosure
- MFR #:
- 8538SCG61V02
- UPC:
- 785901959496
- Item #:
- 329734
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
Thermal units are intended to protect motors, controllers, and branch-circuit conductors against excessive heating due to prolonged motor over-currents up to and including locked rotor currents. Protection of the motor and the other branch circuit components from higher currents, due to short circuits or grounds, is a function of the branch circuit fuses or circuit breakers. Class 20 thermal units respond to overload current conditions according to trip curves. This 2 pole starter is for single phase applications. These thermal units have a one piece construction. The motor current passes through a small heater winding within these thermal units. Under overload conditions, the heat causes a special solder to melt allowing a ratchet wheel to spin free thus opening the control circuit contacts and opening the motor contacts.
Manuals and Documentation
| Catalog Number | 8538SCG61V02 |
| Manufacturer | Schneider Electric |
| Brand | Square D |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Mexico |
| Made in USA | No |
| UPC | 785901959496 |
| GTIN | 00785901959496 |
