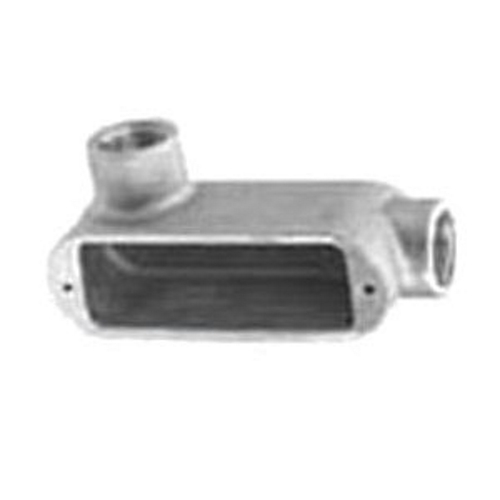

LL19 Unilets Type LL Conduit Outlet Body, 1/2 in Hub, Form 9, 5.3 cu-in, Copper Free Aluminum, Natural
- MFR:
- Appleton Electric
- MFR #:
- LL19
- UPC:
- 781381094245
- Item #:
- 328967
LL19 Unilets Type LL Conduit Outlet Body, 1/2 in Hub, Form 9, 5.3 cu-in, Copper Free Aluminum, Natural
- MFR #:
- LL19
- UPC:
- 781381094245
- Item #:
- 328967
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$37.24
each
FM9 UNILETS Type LL Conduit Outlet Body, Hub Size: 1/2 IN, Form: 9, Length: 4.59 IN, Width: 2.13 IN, Height: 1.56 IN, Material: Aluminum, Finish: Natural Aluminum, Connection: Tapered Female Threaded, Standard: UL 514A, UL 514B, UL File Numb
Manuals and Documentation
| Catalog Number | LL19 |
| Manufacturer | Appleton Electric |
| Brand | Appleton |
| Country of Origin | Mexico |
| Made in USA | No |
| Application | For Use With Rigid Steel, Rigid Aluminum Conduit And IMC |
| Connection | Tapered Female Threaded |
| Finish | Natural Aluminum |
| Form | 9 |
| Hub Size | 1/2 IN |
| Material | Aluminum |
| Special Features | Serve as pulling fittings; Make bends in conduit system; Provide openings for splicing; Connect and change direction of conduit runs; Allow connections for branch runs; Permit access to conductors for maintenance; Smooth, rounded integral bushings in hubs protect conductor insulation; Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity; Roomy interiors: deep body cavity provides increased volume allowing higher wiring capacity; Completely interchangeable with Crouse-Hinds Mark9 bodies, gaskets and covers; Equivalent FM9 and Mark 9 units have identical applications and installation dimensions; Aluminum Unilets: produced from a high-strength copperfree aluminum alloy, for light weight and high corrosion resistance; Smooth hub openings allow easy conduit joining; Hub size, body style, compliance data, maximum wire number/size and cubic capacity molded into body; Flat back design fits flush against flat surfaces for more stable installation and provid |
| Standard | UL 514A, UL 514B, UL File Number E2527, CSA C22.2 No. 18.3, CSA 065183, NEMA FB-1 |
| UPC | 781381094245 |
| GTIN | 00781381094245 |
| Item Type | Type LL Conduit Outlet Body |
| Length | 4.59 |
| Length UOM | Inch |
| Width | 2.13 |
| Width UOM | Inch |
| Height | 1.56 |
| Height UOM | Inch |
