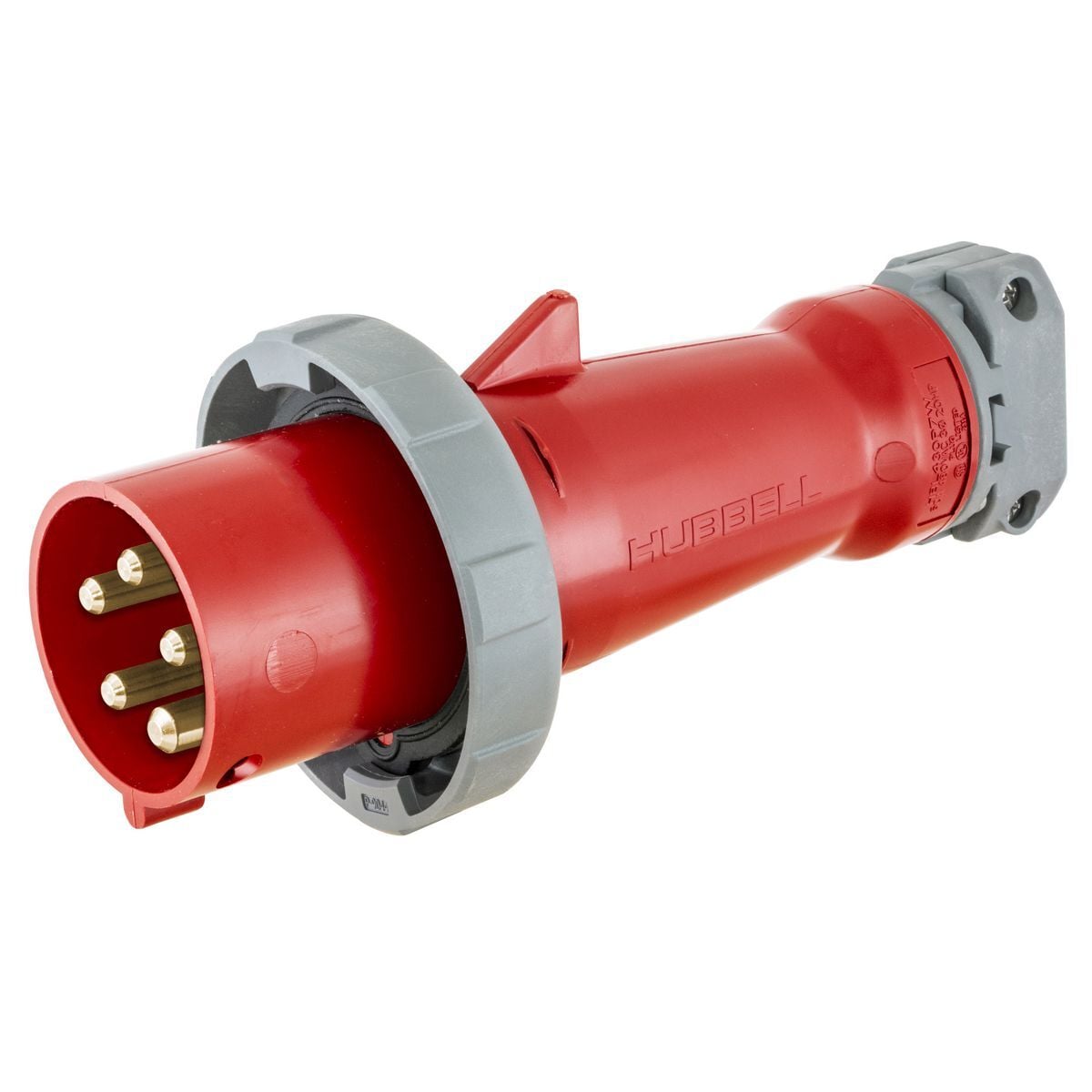

HBL5100P7W 3-Phase Grounding Male Non-NEMA Standard Watertight Cord Mount Pin and Sleeve Plug, 277/480Y V AC, 100 A, 4 Poles, 5 Wires, Red
- MFR:
- Hubbell Wiring Device-Kellems
- MFR #:
- HBL5100P7W
- UPC:
- 783585405087
- Item #:
- 32839
HBL5100P7W 3-Phase Grounding Male Non-NEMA Standard Watertight Cord Mount Pin and Sleeve Plug, 277/480Y V AC, 100 A, 4 Poles, 5 Wires, Red
- MFR #:
- HBL5100P7W
- UPC:
- 783585405087
- Item #:
- 32839
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
Watertight Devices - Hubbells IEC 60309 Pin and Sleeve plugs, connectors, inlets and receptacles are the highest performing products available. The HBL series of IEC pin and sleeve were designed for the demanding North American market. Hubbell was the first and is still only manufacturer of IEC 60309 devices in the USA and have numerous innovative features noted below. The IEC line of plugs and connectors are made with a rugged super tough, one-piece housing. The thermoset polyester contact carrier provides a high resistance to electrical tracking. They withstand higher temperatures which may result from overload or arcing. The heavy-duty, external cord grip provides superior strain relief on the conductors. Hubbells horsepower rated plugs and receptacles meet NEC 430.109(F) requirements and recognized as an approved disconnecting line of sight disconnecting means.
Manuals and Documentation
| Catalog Number | HBL5100P7W |
| Manufacturer | Hubbell Wiring Device-Kellems |
| Brand | Hubbell Wiring Device - Kellems |
| Country of Origin | United States |
| Made in USA | Yes |
| Amperage Rating | 100 |
| Application | High Ampacity Connections |
| Color | Red |
| Connection | Pressure Terminal Screws |
| Material | Composite |
| Mounting | Cord |
| Number of Poles | 4 |
| Number of Wires | 5-Wire |
| Phase | 3 |
| Special Features | Watertight |
| Standard | CSA Certified File LR280C;UL Classified to IEC Standards 60309-1;UL Listed, File E146033 |
| UPC | 783585405087 |
| GTIN | 00783585405087 |
| Item Type | Watertight Plug |
| Size | Standard Sized Product |
| Environmental Conditions | Watertight |
| Voltage Rating | 3 Phase Y 277/480 |
| Wire Size | #3 AWG to #1/0 AWG |
