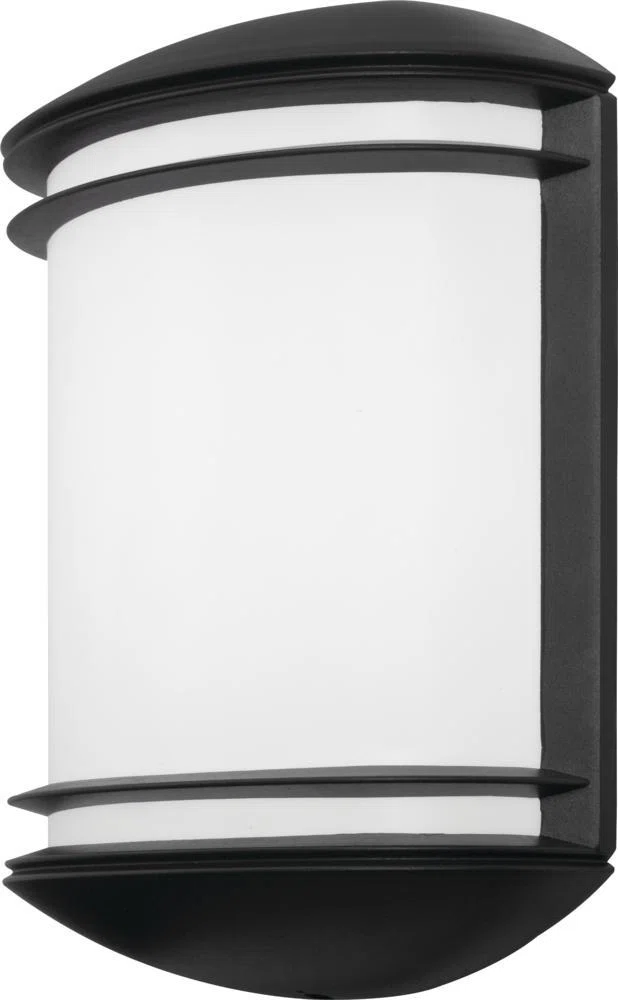

OLCS 8 DDB M4 OLCS Type III Outdoor Wallpack, LED Lamp, 8.9 W Fixture, 120 VAC, Bronze Housing
- MFR:
- Acuity Brands
- MFR #:
- OLCS 8 DDB M4
- UPC:
- 753573525059
- Item #:
- 326138
OLCS 8 DDB M4 OLCS Type III Outdoor Wallpack, LED Lamp, 8.9 W Fixture, 120 VAC, Bronze Housing
- MFR #:
- OLCS 8 DDB M4
- UPC:
- 753573525059
- Item #:
- 326138
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$268.21
each
Defined by its smooth, clean lines, the OLCS LED luminaire delivers a fresh, chic look to any building's exterior. Equipped with sophisticated microDrive technology, the luminaire requires no driver which significantly reduces the product's complexity while greatly extending its longevity. Available in white and bronze finishes, the OLCS LED luminaire features a polycarbonate diffuser which produces bright, glare free illumination and rugged durability ideal for use around walkways, entryways and stairwells.
Manuals and Documentation
Features
- Defined by its smooth, clean lines, the OLCS LED luminaire delivers a fresh, chic look to any building's exterior
- Equipped with sophisticated microDrive technology, the luminaire requires no driver which significantly reduces the product's complexity while greatly extending its longevity
- 48 high-performance LEDs produce up to 513 lumens with 8.9 Wand a 2.5kV surge protection
- Fixture operates at 120 V and 60 Hz. mounting easily to recessed junction box
- Maintains 70 Percent of light output at 50,000 hr of service
- Rugged cast-aluminum top-plate and outer-ring are protected by a thermoset powder coat finish that provides superior resistance to corrosion and weathering
- No emergency battery back-up available in this version
| Manufacturer Part Number | OLCS 8 DDB M4 |
| Brand | Lithonia Lighting® |
| Manufacturer | Acuity Brands |
| UPC | 753573525059 |
| Country Of Origin | CN |
| Amperage Rating | 1 A |
| Average Life | 50000 hr |
| Color Rendering Index CRI | 83 |
| Color Temperature | 4000 K |
| Dimensions | 12-9/16 in H x 8-7/8 in W x 3-1/2 in D |
| Fixture Wattage | 8.9 W |
| Housing Material | Aluminum |
| Lamp Type | LED |
| Lumens | 513 Lumens |
| Mounting Type | Ceiling |
| Series | OLCS |
| Type | Type III |
| Voltage Rating | 120 V AC |
| Alternative Part Number | 214F9R | 13130228 | 13091833 |
| Manufacturer Item Status | Discontinued |
| Country | USA/Canada |
| Warranty | 5 Years Limited |
| Standards Approvals | UL/cUL Listed | IESNA LM-79 | LM-80 |
| Application | For residential and commercial outdoor applications such as walkways, doorways/entrances, columns and stairways |
| Includes | Photocell |
