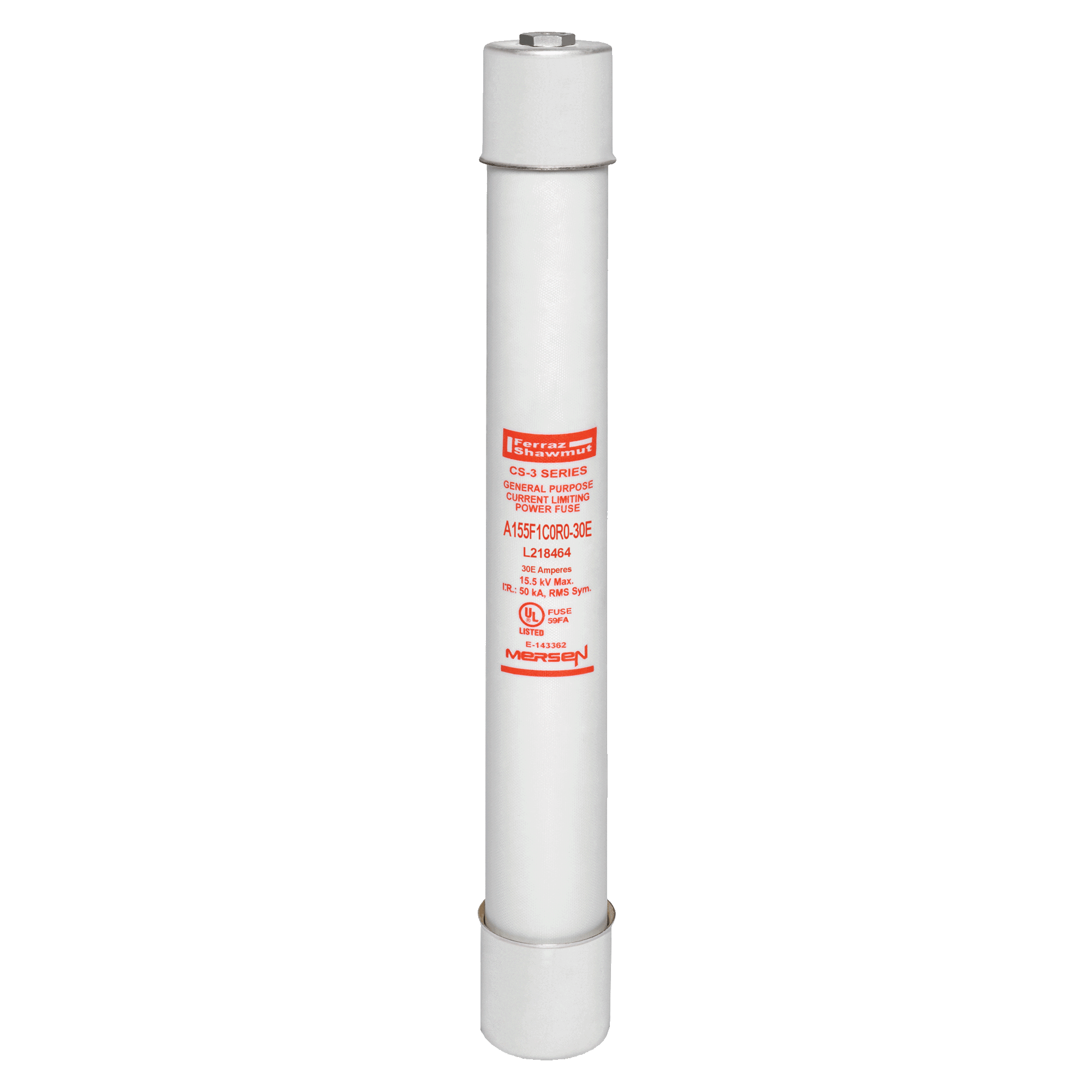

A155F1C0R0-30E Amp-Trap CS-3 Current Limiting General Purpose Medium Voltage General Purpose Fuse, 30 A, 15.5 kV AC, 50 kA Interrupt, Class: E, Ferrule Body
- MFR:
- Mersen
- MFR #:
- A155F1C0R0-30E
- UPC:
- 782001804794
- Item #:
- 324648
A155F1C0R0-30E Amp-Trap CS-3 Current Limiting General Purpose Medium Voltage General Purpose Fuse, 30 A, 15.5 kV AC, 50 kA Interrupt, Class: E, Ferrule Body
- MFR #:
- A155F1C0R0-30E
- UPC:
- 782001804794
- Item #:
- 324648
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
Medium Voltage E-Rated Fuse 15500VAC 30A Ferrule, Series: C0R0 Visual Indicator Amp-Trap
Manuals and Documentation
| Catalog Number | A155F1C0R0-30E |
| Manufacturer | Mersen |
| Brand | Mersen |
| Country of Origin | Mexico |
| Made in USA | No |
| Amperage Rating | 30 |
| Application | Protection for 12 kV to 15.5 kV transformers or distribution systems. |
| Connection | Ferrule |
| Interrupt Rating | 50 KA |
| Mounting | Clip |
| Special Features | Amp-Trap CS-3 and 9F62 series are UL listed for compatibility with UL listed equipment Ferrule mounting for standard clips and interchangeability with other brands of fuses Current-limiting for superior equipment protection Non-venting for silent operation Metal embossed catalog number and manufacturing date for lasting identification Outdoor usage for the 9F62 and 9F60 type EJO Blown-fuse indicator to give positive identification of open fuse: Amp-Trap: 2" Barrel 1 lb tripped force - 0.19 Inch Amp-Trap: 3" Barrel 2 lb tripped force - 0.50 Inch 9F60/9F62: 0.125 lb tripped force – 0.20 Inch |
| Standard | Some UL listed to standard File E143362 |
| UPC | 782001804794 |
| GTIN | 00782001804794 |
| Item Type | General Purpose Ferrule Mount Fuses for Transformer Protection |
| Size | 17.03 x 2 |
| Type of Indicators | Visual Indicator |
| Voltage Rating | 15500 |
