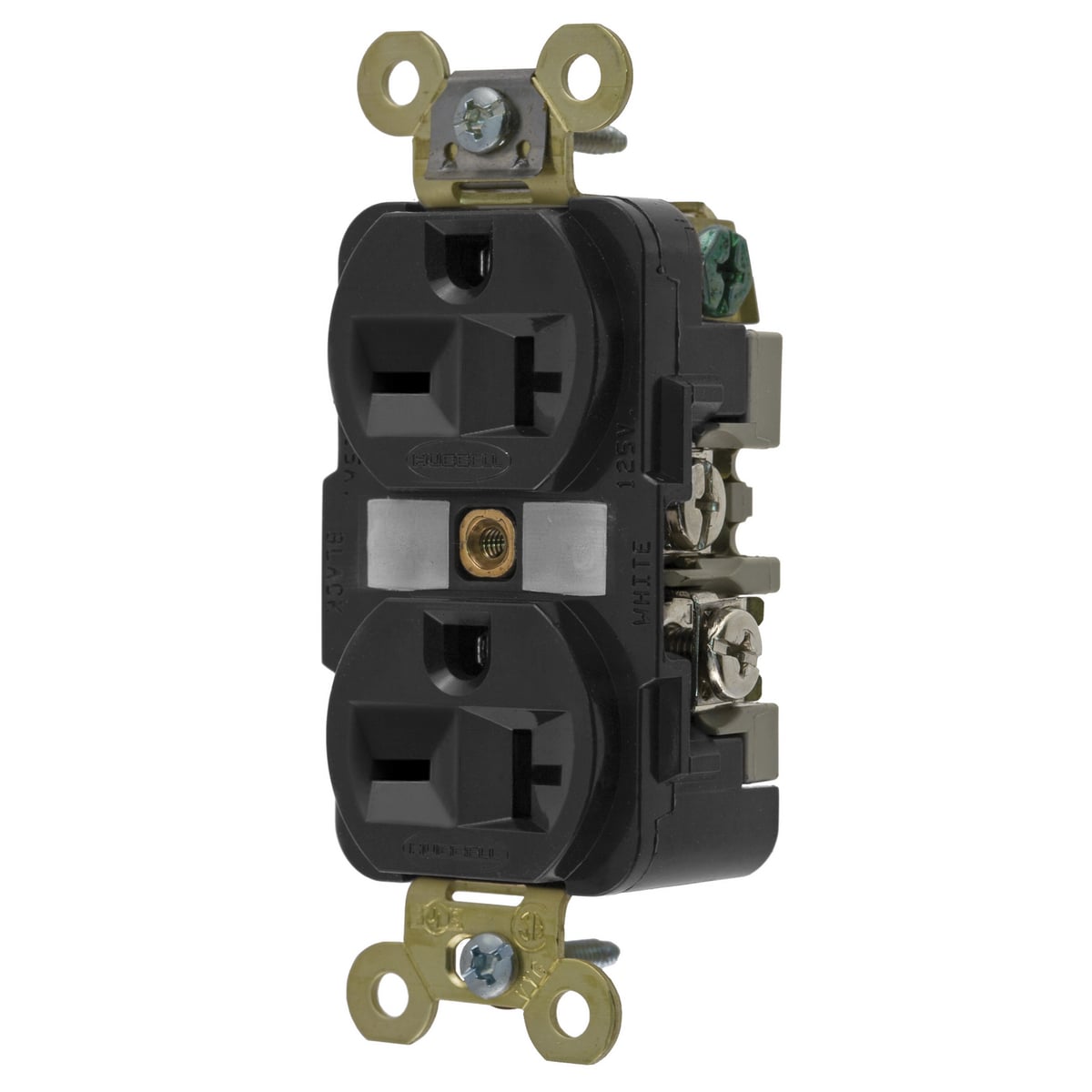

HBL5462BK 1-Phase Duplex Extra Heavy Duty Self-Grounding Standard Traditional Screw Mount Straight Blade Receptacle, 250 V AC, 20 A, 2 Poles, 3 Wires, Black
- MFR:
- Hubbell Wiring Device-Kellems
- MFR #:
- HBL5462BK
- UPC:
- 783585357737
- Item #:
- 32422
HBL5462BK 1-Phase Duplex Extra Heavy Duty Self-Grounding Standard Traditional Screw Mount Straight Blade Receptacle, 250 V AC, 20 A, 2 Poles, 3 Wires, Black
- MFR #:
- HBL5462BK
- UPC:
- 783585357737
- Item #:
- 32422
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$56.66
each
Manuals and Documentation
| Catalog Number | HBL5462BK |
| Manufacturer | Hubbell Wiring Device-Kellems |
| Brand | Hubbell Wiring Device - Kellems |
| Country of Origin | United States |
| Made in USA | Yes |
| Amperage Rating | 20 |
| Application | Extra Heavy Duty |
| Color | Black |
| Connection | Back and Side Wired Screw Terminals |
| Material | Thermoplastic/Composite |
| Mounting | Screw |
| NEMA Rating | 6 |
| Number of Poles | 2 |
| Number of Wires | 3-Wire |
| Phase | 1 |
| Special Features | Self Grounding |
| Standard | Certified to CSA 22.2, No. 42 File 285;Guide RTRT Fed Spec WC596G;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186 |
| UPC | 783585357737 |
| GTIN | 00783585357737 |
| Item Type | Standard Duplex |
| Size | 3.28 in x 1.65 in x 1.19 in |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Voltage Rating | 250 |
| Wattage | 5,000 W |
| Wire Size | #14 AWG to #10 AWG |
