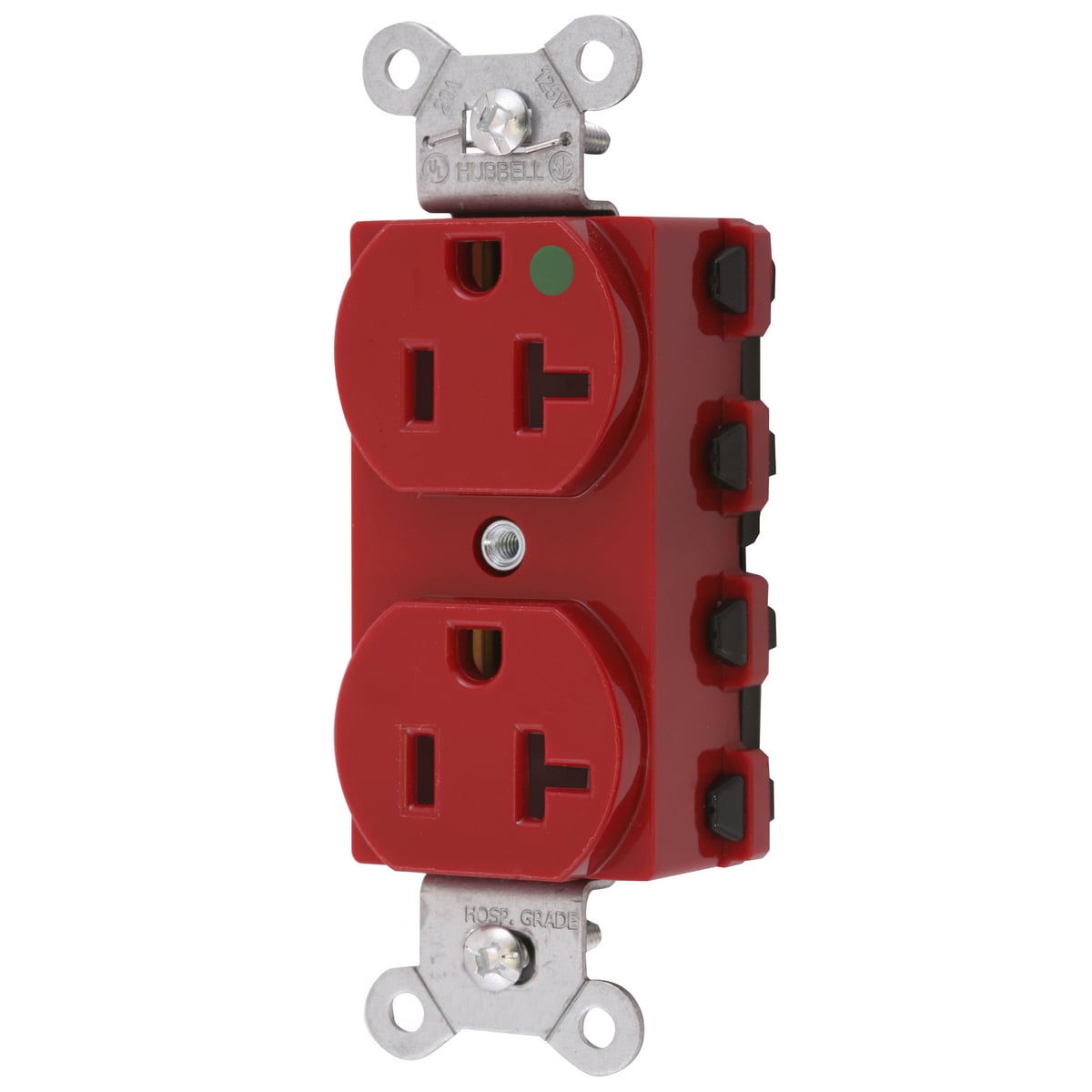

SNAP8300RNA 1-Phase Duplex Extra Heavy Duty Grounding Standard Traditional Screw Mount Straight Blade Receptacle, 125 V AC, 20 A, 2 Poles, 3 Wires, Red
- MFR:
- Hubbell Wiring Device-Kellems
- MFR #:
- SNAP8300RNA
- UPC:
- 783585540733
- Item #:
- 323595
SNAP8300RNA 1-Phase Duplex Extra Heavy Duty Grounding Standard Traditional Screw Mount Straight Blade Receptacle, 125 V AC, 20 A, 2 Poles, 3 Wires, Red
- MFR #:
- SNAP8300RNA
- UPC:
- 783585540733
- Item #:
- 323595
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
SNAPConnect Devices offer superior installation efficiency for new construction and renovations, while delivering safe, reliable connections. Instead of conventional wiring methods, SNAPConnects modular connector is installed during rough-in in lieu of pigtails. Once the walls are up, the protective covering is removed, and the terminal is simply snapped into the SNAPConnect device for a consistent connection every time. Once installed, SNAPConnects modular design enables simple device change-out by maintenance personnel.
Manuals and Documentation
| Catalog Number | SNAP8300RNA |
| Manufacturer | Hubbell Wiring Device-Kellems |
| Brand | Hubbell Wiring Device - Kellems |
| Country of Origin | Mexico |
| Made in USA | No |
| Amperage Rating | 20 |
| Application | Hospital Grade |
| Color | Red |
| Connection | Connectorized |
| Material | Nylon |
| Mounting | Screw |
| NEMA Rating | 5 |
| Number of Poles | 2 |
| Number of Wires | 3-Wire |
| Phase | 1 |
| Special Features | Quick Connect- SNAPConnect, USA Product |
| Standard | CSA Certified, C22.2, No. 42 File 285;Fed. Spec. W-C-596;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186 |
| UPC | 783585540733 |
| GTIN | 00783585540733 |
| Item Type | Standard Duplex |
| Size | 3.28 in x 1.64 in x 1.1 in |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Voltage Rating | 125 |
| Wattage | 2,500 W |
| Wire Size | #12 AWG |
