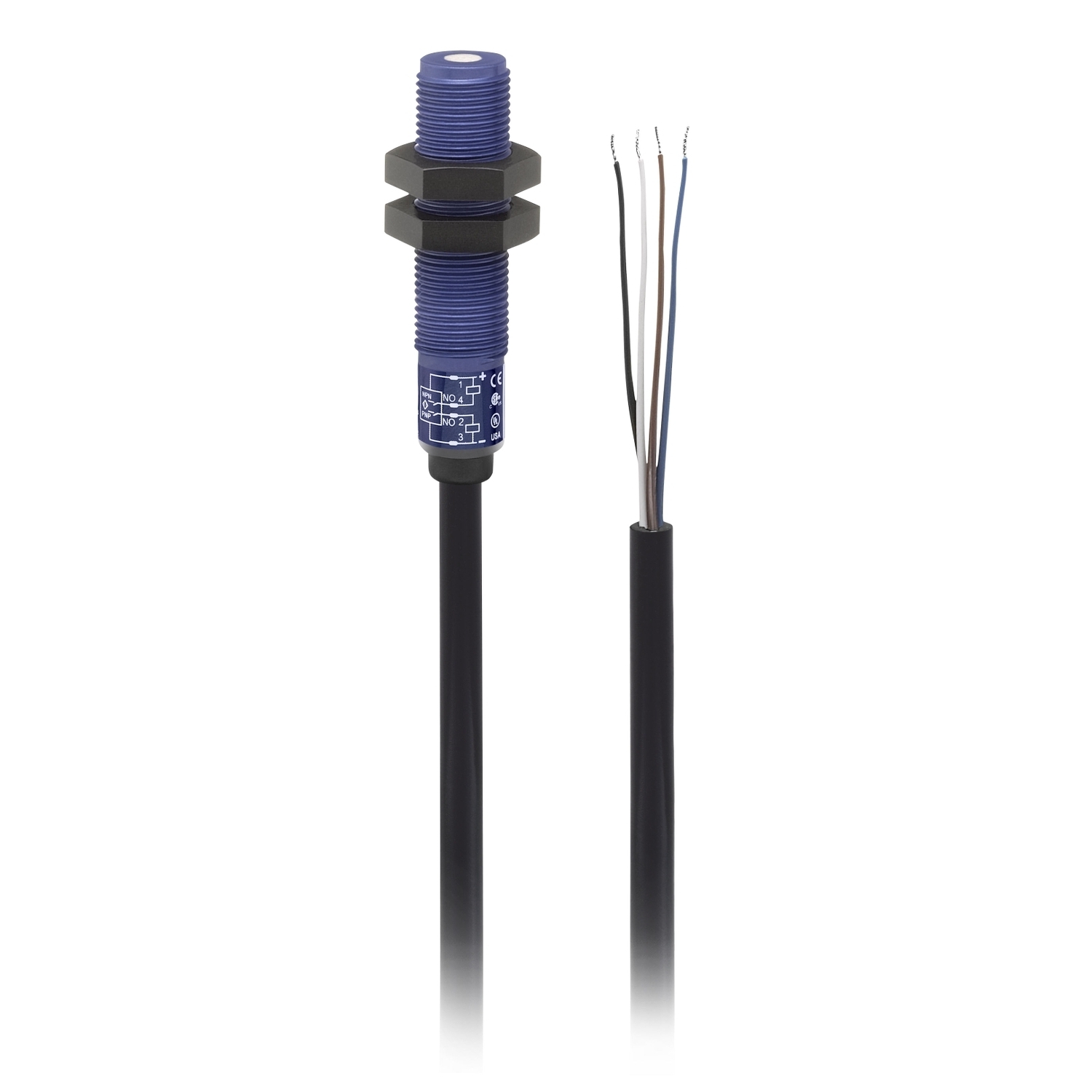

Hyde Park, Ultrasonic sensor, discrete, 12 mm barrel, 12 24 V DC
Hyde Park, Ultrasonic sensor, discrete, 12 mm barrel, 12 24 V DC
| Location | Available Qty |
|---|---|
| Available | Available to Order |
This product is part of the Hyde Park range, an offer of ultrasonic sensors. This ultrasonic sensor in a cylindrical M12 design and fixed sensing type window. It supports 50.8mm nominal sensing distance and 1 NO PNP/NPN discrete output. It is an ultrasonic sensor with a rated supply voltage of 12V to 24V DC with overload, short circuit protection and current consumption of 25mA. It is furnished with 3m cable for electrical connection. It is an IP67 and NEMA 4X rated product. The enclosure is made of ULTEM with glass epoxy front. Its dimensions are 53.08mm (length) x 12mm (width) x 12mm (height). It weighs 0.08kg. It is suitable for packaging, automotive, food and beverage processing applications. This product is certified by CE and UL. The Hyde Park ultrasonic sensors operate in diffuse, reflex and thru beam modes. This range of sensors even includes long distance detection models. Hyde Park ultrasonic sensors perform contactless, reliable and high performance detection regardless of the target's shape, texture, color or transparency.
Manuals and Documentation
- Catalog Number
- SM300A22800
- Manufacturer
- Telemecanique Sensors
- Brand
- Telemecanique
- Warranty Description
- Contractual Warranty:18 months
- Country of Origin
- France
- Made in USA
- No
- Application
- Discrete proximity
- Connector
- Cable, 3 m
- Enclosure
- ULTEM
- Material
- Plastic
- Sensing Range
- 0.25�2.00�in (6.3�50.8�mm)
- Sensor
- 12 MM,53.08 MM,ULTRASONIC SENSOR
- Special Features
- PLASTIC
- Standard
- 1 KV LEVEL 3 IEC 61000-4-4,10 V/M LEVEL 3 IEC 61000-4-3,30 GN IN ALL 3 AXES 11 MS IEC 60068-2-27,CE,IP67,UL
- Supply Voltage
- 12...24 V DC overload and short-circuit protection
- GTIN
- 03389119088510
- Item Type
- Ultrasonic sensor;Cylindrical M12
- Operating Temperature
- -30-70 A Degrees C
- Target Size
- CYLINDER DIAMETER 2.5 MM - UP TO 1 MM SENSING DISTANCE
