Discontinued

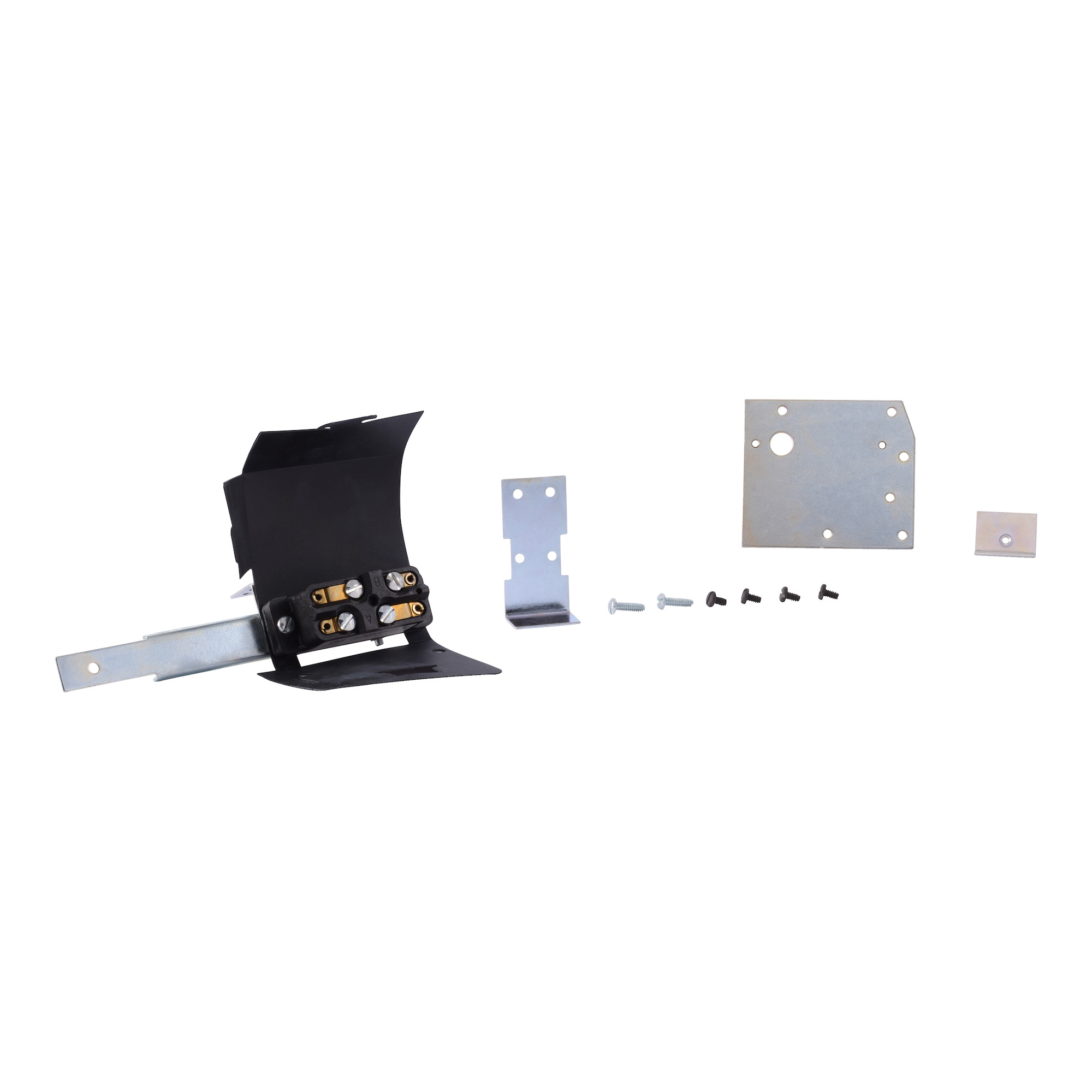

9999R26 Electrical Breaker Interlock Kit, 1 Pole, For Use With Class 8539 and 8739 Type SB/SC/SD/SE/SF/SG Starter
- MFR:
- Schneider Electric
- MFR #:
- 9999R26
- UPC:
- 785901727736
- Item #:
- 321676
Discontinued
9999R26 Electrical Breaker Interlock Kit, 1 Pole, For Use With Class 8539 and 8739 Type SB/SC/SD/SE/SF/SG Starter
- MFR #:
- 9999R26
- UPC:
- 785901727736
- Item #:
- 321676
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
A one pole electrical interlock can be added to a disconnect switch or circuit breaker. This disconnect is used to de-energize a magnetic starter with separate control circuit when the disconnect is switched to the off position. Disconnect switch has one SPDT contact. It has one normally open and one normally closed contact. This disconnect switch is used on 8539 and 8739 circuit breaker combination starter from NEMA Size 0 through 5. It is also used on 8903S combination lighting contactors. 9422R and 9422C circuit breaker operating mechanism also use this disconnect switch.
Manuals and Documentation
| Catalog Number | 9999R26 |
| Manufacturer | Schneider Electric |
| Brand | Square D |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Unknown |
| Made in USA | No |
| UPC | 785901727736 |
| GTIN | 00785901727736 |
