Bussmann

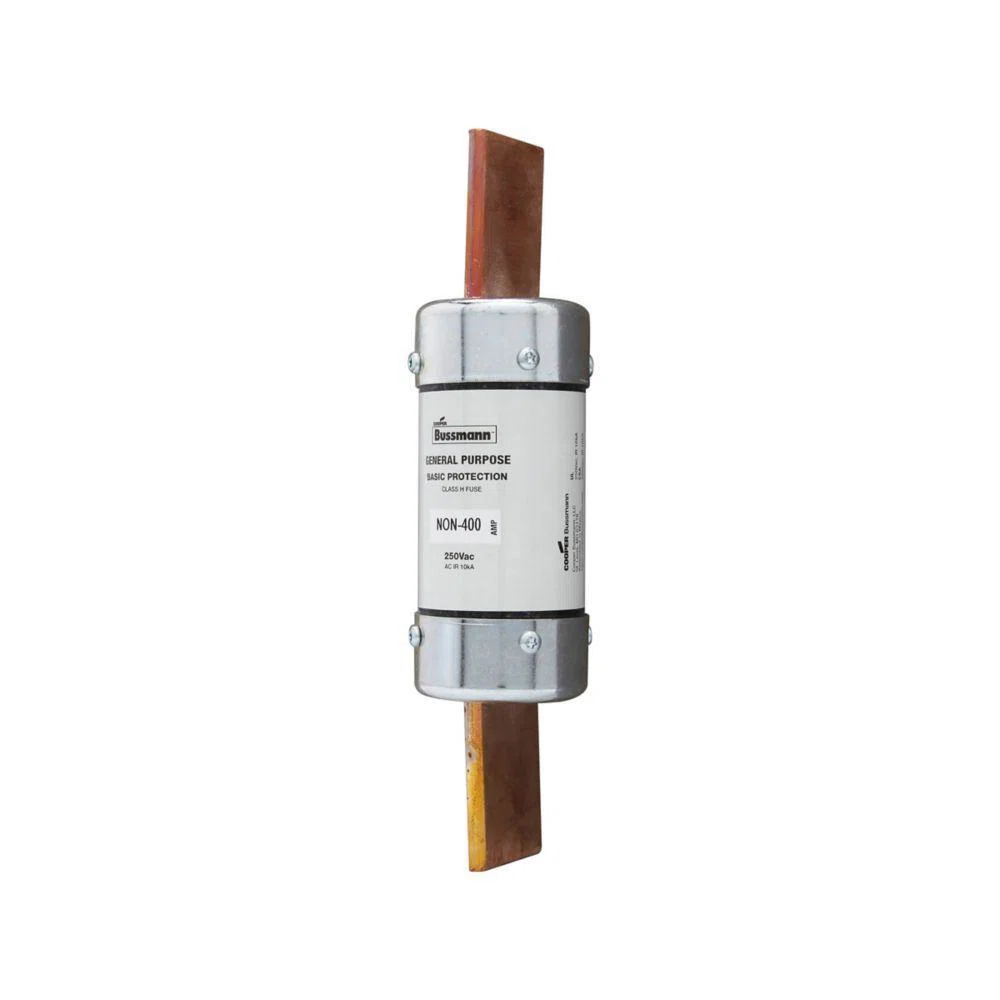

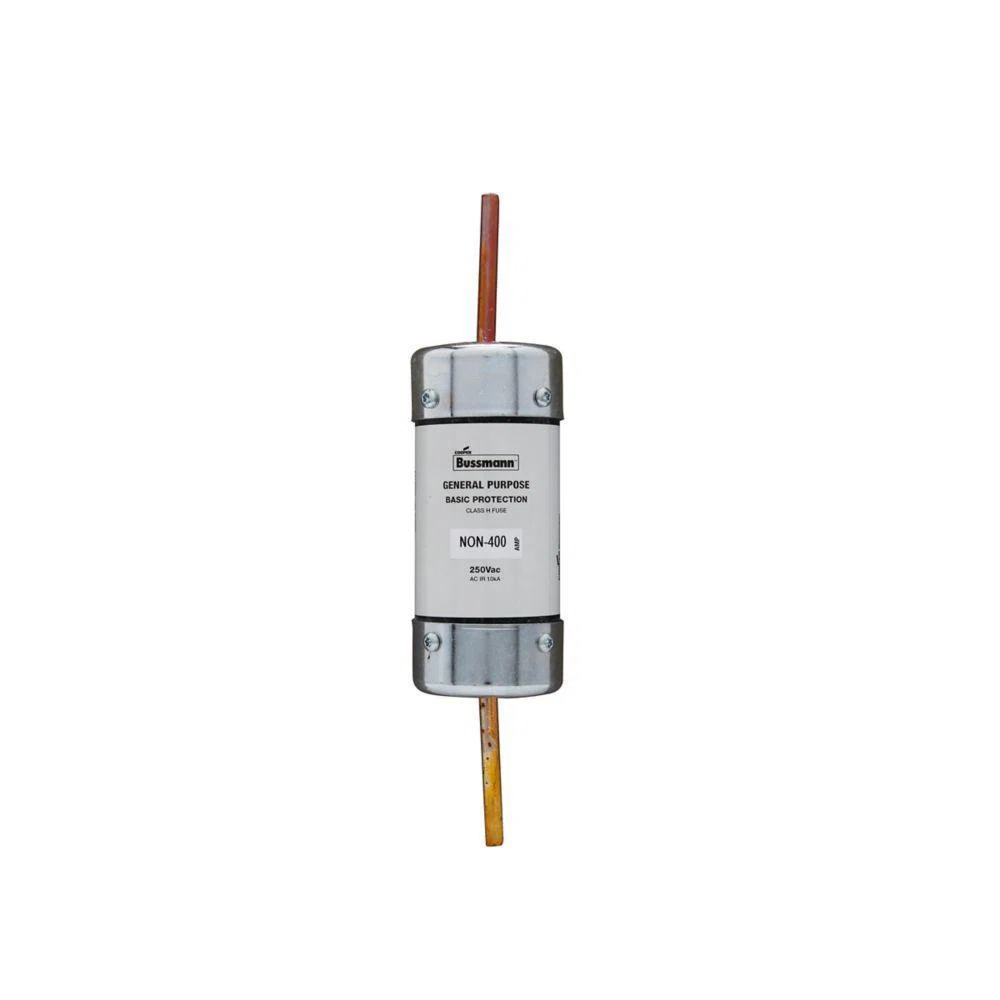

NON-225 One-Time Non-Current Limiting Fuse, 225 A, 250 V AC, 10 kAIC Interrupt, Class: H, Cartridge Body

MFR:
Eaton
MFR #:
NON-225
UPC:
051712302258
Item #:
32038

Availability

Location Available Qty
Available Available to Order
$603.43 each

Bussmann Fuse, One-Time Non-Current Limiting, Series: NON, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Rejection, 225 A, 250 V AC, 10 kAIC Interrupt, Class: H, Blade End Terminal, Holder Mount, Cartridge Body Type, 2.06 in Dia x 8.63 in L Body Size

Manuals and Documentation

Features

  • Original fuse providing circuit protection
  • Protect lighting, heating and other circuits not subject to temporary surges and where available short circuit currents are relatively low
  • Do not have any appreciable degree of time delay and thus should not be specified in circuits where large transients or motor overloads occur
  • Use Bussmann advanced protection Fusetron™ FRN-R or ultimate protection Low-Peak™ LPN-RK dual element, time delay fuses
  • For general purpose circuits, size at amp rating of circuit
  • For motor circuits, size at 300% to 400% according to the NEC motor ampacity tables 430.247/430.250/ 430.6(A)(1)
  • One-time fuse
Manufacturer Part Number NON-225
Brand Bussmann
Manufacturer Eaton
UPC 051712302258
Country Of Origin MX
Amperage Rating 225 A
Mounting Type Holder
Series NON
Type One-Time Non-Current Limiting
Voltage Rating 250 V AC
Alternative Part Number 7611393
Manufacturer Item Status Active
Country USA
Standards Approvals CE Certified | CSA Class 1421-01 File No. 53787 | UL 248-6 Guide No. JDDZ File No. E4273
Application Industrial Facilities and Factory Facility, Safety and Security Systems, Light Duty Circuit Locations Applications
Body Size 2.06 in Dia x 8.63 in L
Body Type Cartridge
Class H
Indicating Non Indicating Non-Indicating
Interrupt Rating 10 kAIC
Rejection Non Rejection Rejection
Terminal Type Blade End
