Telemecanique

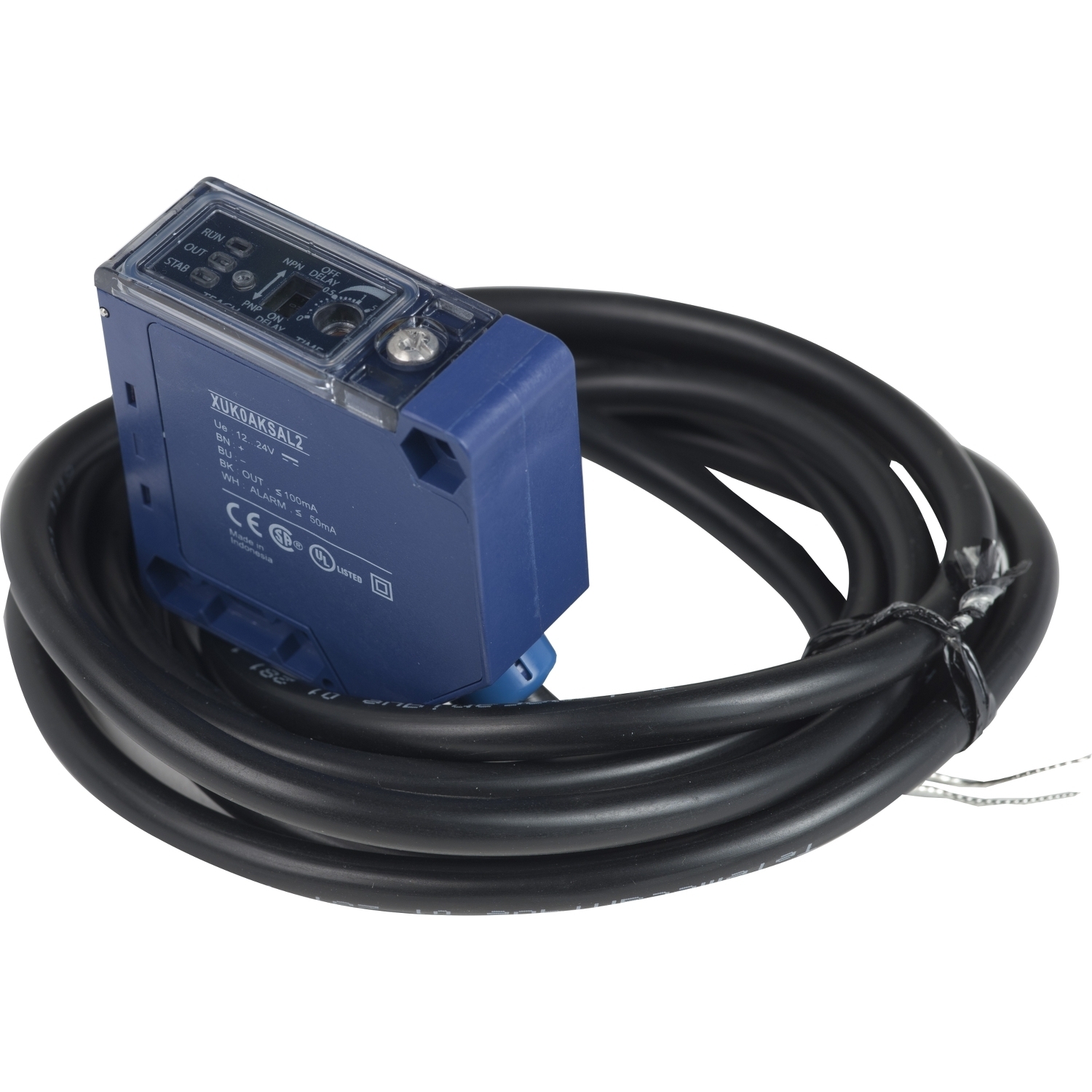

XUK0AKSAL2 OsiSense XU Compact Photoelectric Sensor, Rectangle Shape, 35/0.28/1.2/5.7 m, Infrared Sensing Beam, 2 ms Response, NPN/PNP 1NO-1NC Output

MFR:
Telemecanique Sensors
MFR #:
XUK0AKSAL2
UPC:
785901700197
Item #:
320030

Availability

Location Available Qty
Available Available to Order
$252.36 each

This compact design multi mode photo-electric sensor has a PBT case. It has a supply voltage of 12V to 24V DC. This multi-mode rectangular photoelectric sensor has a plastic body, is mountable directly on a surface or bracket, thanks to its 3 fixing points. It has VALOX PBT high strength case ideal for high temperature environments and PMMA scratch-resistant lens for maximum sensor durability. 3 LED display allows to identify status of the sensor and troubleshoot issues. IP65 protection makes this product ready for the harshest environments. It can operate in very cold (-25C) and hot environments (+55C). It provides double insulation for better people and system protection from electrical shocks. It is CSA and UL certified.

Manuals and Documentation
Catalog Number XUK0AKSAL2
Manufacturer Telemecanique Sensors
Brand Telemecanique
Warranty Description Contractual Warranty:18 months
Country of Origin Indonesia
Made in USA No
Application -
Connection Cable
Enclosure IP65 DOUBLE INSULATION CONFORMING TO IEC 60529,PBT
Operating Cycles <= 250 Hz
Output PNP or NPN;1 NO or 1 NC programmable;Discrete;Solid state
Sensing Range 4-4 M POLARISED REFLEX NEED REFLECTOR XUZC50-30-30 M THRU BEAM NEED A TRANSMITTER XUK0AKSAL2T-0.28-0.28 M DIFFUSE WITH BACKGROUND SUPPRESSION-0.8-0.8 M DIFFUSE,> 0...98.43 FT (> 0...30 M)
Special Features 1 LED green)supply;1 LED red)instability;1 LED yellow)output state
Standard CSA-UL-CE,IP65 DOUBLE INSULATION IEC 60529
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=873586&lang=en-us
UPC 785901700197
GTIN 03389110160383
Item Type General purpose multimode;Multimode;Compact 50 x 50;Photo-electric sensor
Size 1.97
Environmental Conditions WATER TIGHT, DUST TIGHT, OIL TIGHT AND CORROSION RESISTANT (INDOOR)
Operating Temperature -25-55 A Degrees C
Voltage Rating 12...24 V DC reverse polarity protection
