Square D

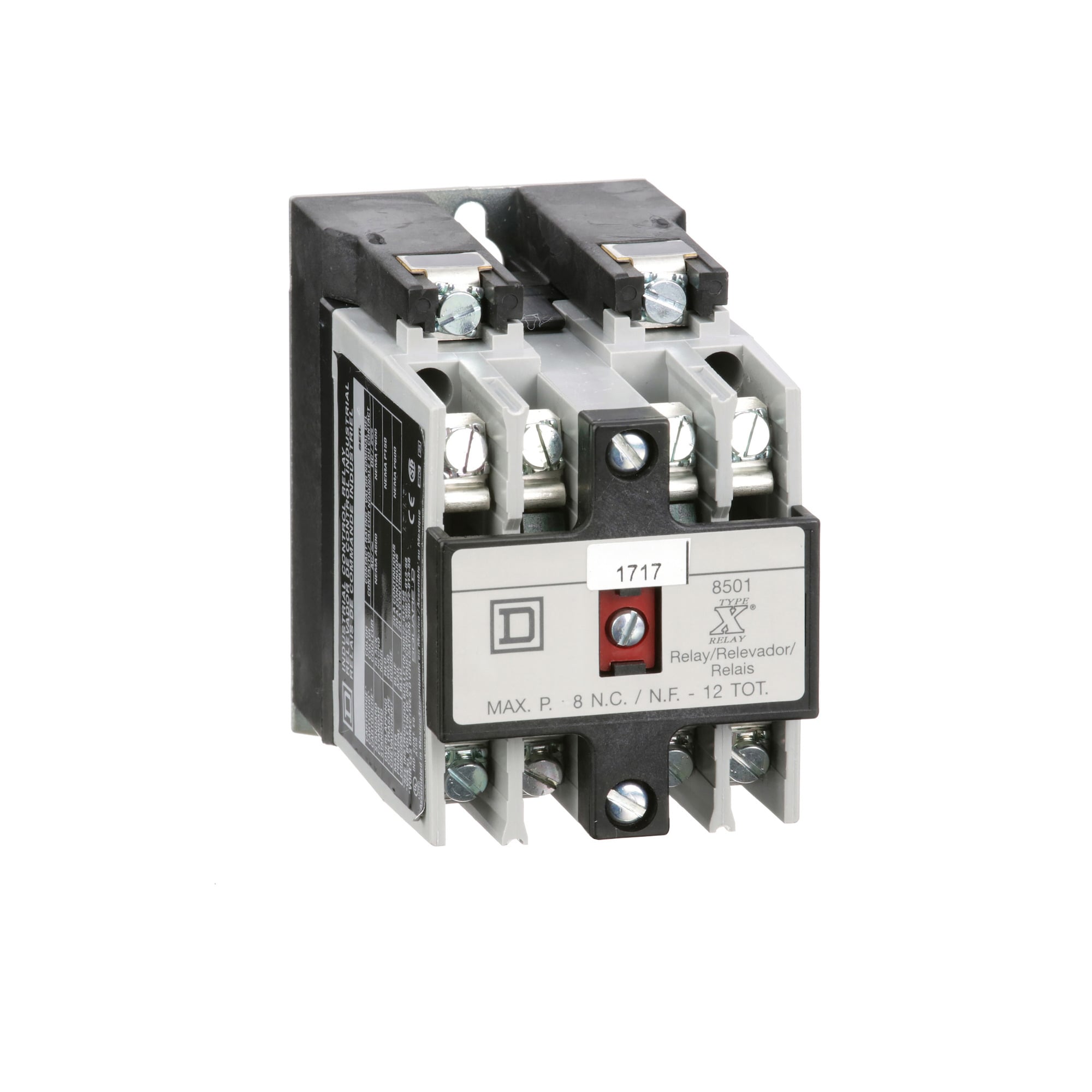

8501XO20V01 Type X Control Relay, 10 A AC/5 A DC, 2NO 2 Form A Contact, 24 V AC at 60 Hz V Coil

MFR:
Schneider Electric
MFR #:
8501XO20V01
UPC:
785901536932
Item #:
31646

Availability

Location Available Qty
Available Available to Order
$187.34 each

8501X NEMA machine tool relays combine a rugged heavy duty design with modular construction for greater flexiblity. They are ideal for applications where long life, high reliability and ease of maintenance are important. This relay has contacts with a 10 ampere resistive current rating at 600 VAC. The contacts also have an A600 inductive contact rating. This relay is supplied with two 8501XC1 contact cartridges. The contact cartridges are installed as normally open contacts. The machine tool relays have straight through wiring. This makes wiring easier. The two plug in contact cartridges in this relay make contact conversion or replacement very easy. Contact conversion or replacement can be done without removing any wiring. Contacts are supplied with pressure wire connectors so wires can be easily terminated. 18 to 12 AWG copper wire can be used with this relay. Relay has a 24 VAC 60 VAC replaceable coil. Relay is UL listed and CSA certified. Relay is UL listed and CSA certified.

Manuals and Documentation
Catalog Number 8501XO20V01
Manufacturer Schneider Electric
Brand Square D
Warranty Description Contractual Warranty:18 months
Country of Origin Mexico
Made in USA No
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=368649&lang=en-us
UPC 785901536932
GTIN 00785901536932
Item Type Relay;Control
Width 2.23
Width UOM Inch
Height 3.5
Height UOM Inch
Depth 3.95 IN
