Leviton®

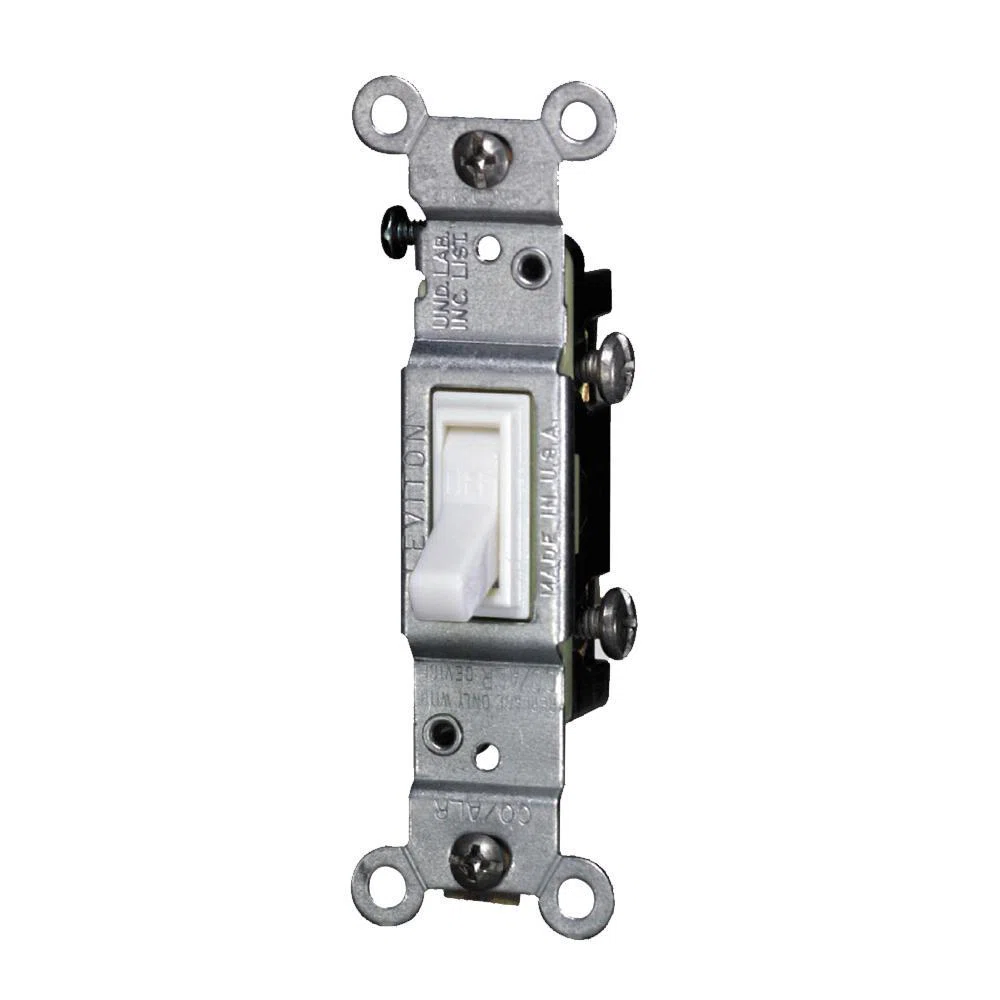

2651-2W Grounding Toggle Switch, 120 V AC, 15 A, 1/2, 2 hp Power Rating

MFR:
Leviton
MFR #:
2651-2W
UPC:
078477851302
Item #:
31417

Availability

Location Available Qty
Available 131 ea
$14.92 each

Tried-and-true toggle designs, Leviton® residential grade AC quiet switches cover all the bases, they install easily and are available in standard and illuminated versions. Their toggles and frames are constructed of impact resistant thermoplastic and they feature large head, hardened triple drive screws for easy installation. Leviton® traditional switches are compatible with a wide range of Leviton® plastic and metal wallplates.

Manuals and Documentation

Features

  • Faster installation with combination of side wiring and quick wire push-in wiring
  • Side wire accepts conductors up to 12 AWG
  • Quickwire accepts conductors up to no 12/14 AWG in Canada
  • Large head, hardened triple drive combination screws (Standard, Phillips or Robertson) for fast wiring installation
  • Impact resistant, durable thermoplastic toggle and frame
  • 1/2 hp at 120 VAC, 2 hp at 240 VAC power rating
Manufacturer Part Number 2651-2W
Brand Leviton®
Manufacturer Leviton
UPC 078477851302
Country Of Origin US
Amperage Rating 15 A
Color White
Dimensions 4.2 in H x 1.31 in W x 11 in D
Material Thermoplastic
Type Grounding
Voltage Rating 120 V AC
Alternative Part Number 7345328
Manufacturer Item Status Active
Country USA/Canada
Warranty 2 years Limited
Standards Approvals UL File No. E7458 | UL94 V-2 Flammability Rating | CSA File No. LR3413 | NOM 057
Application Commercial Applications
Actuator Cam
Contact Rating 1/2 hp at 120 V AC, 2 hp at 240 V AC
Environmental Conditions -40 to 65 deg C Operating Temperature
Mounting Surface
Number Of Poles 1
Power Rating 1/2, 2
Terminal Type Side Wire
