SCHNEIDER ELECTRIC

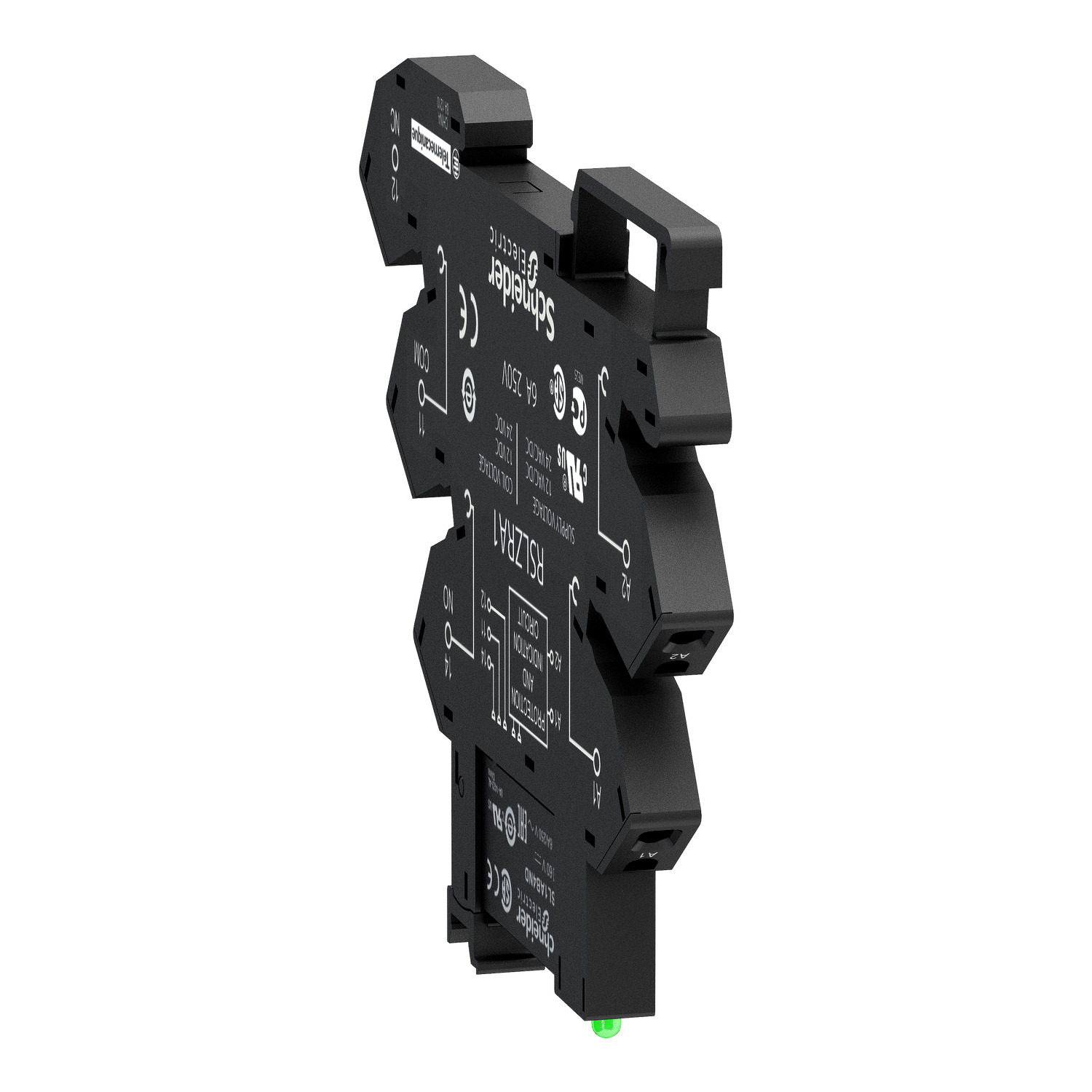

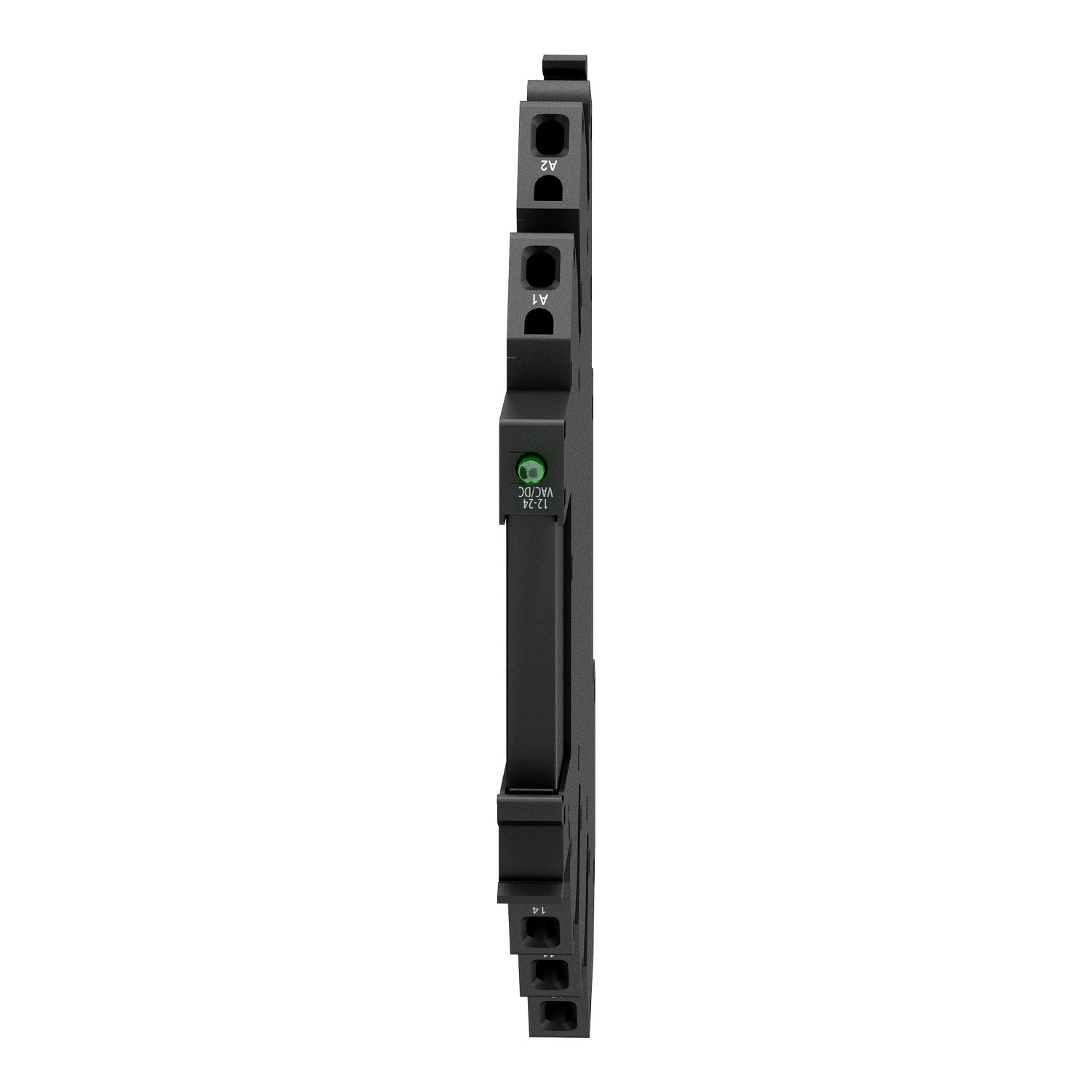

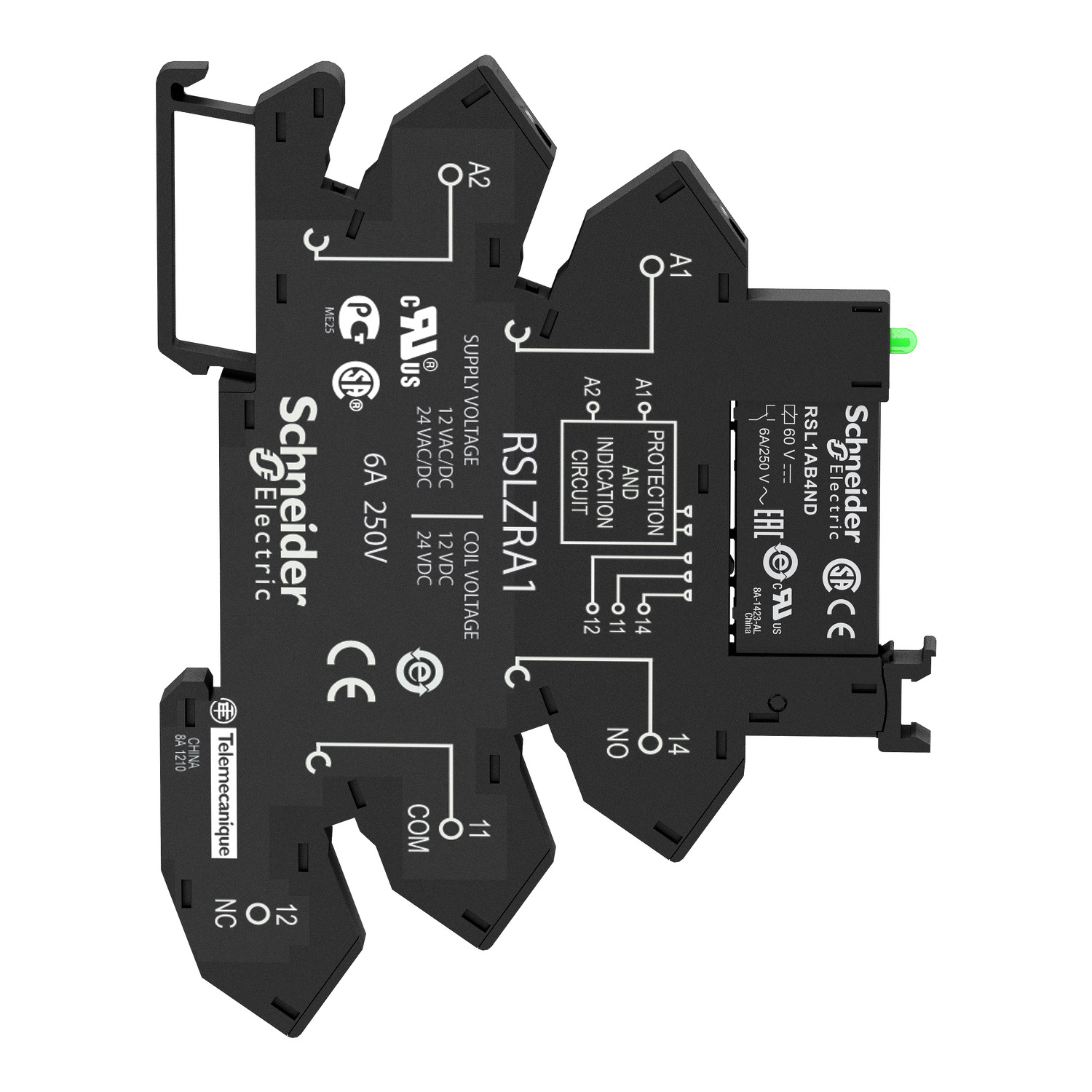

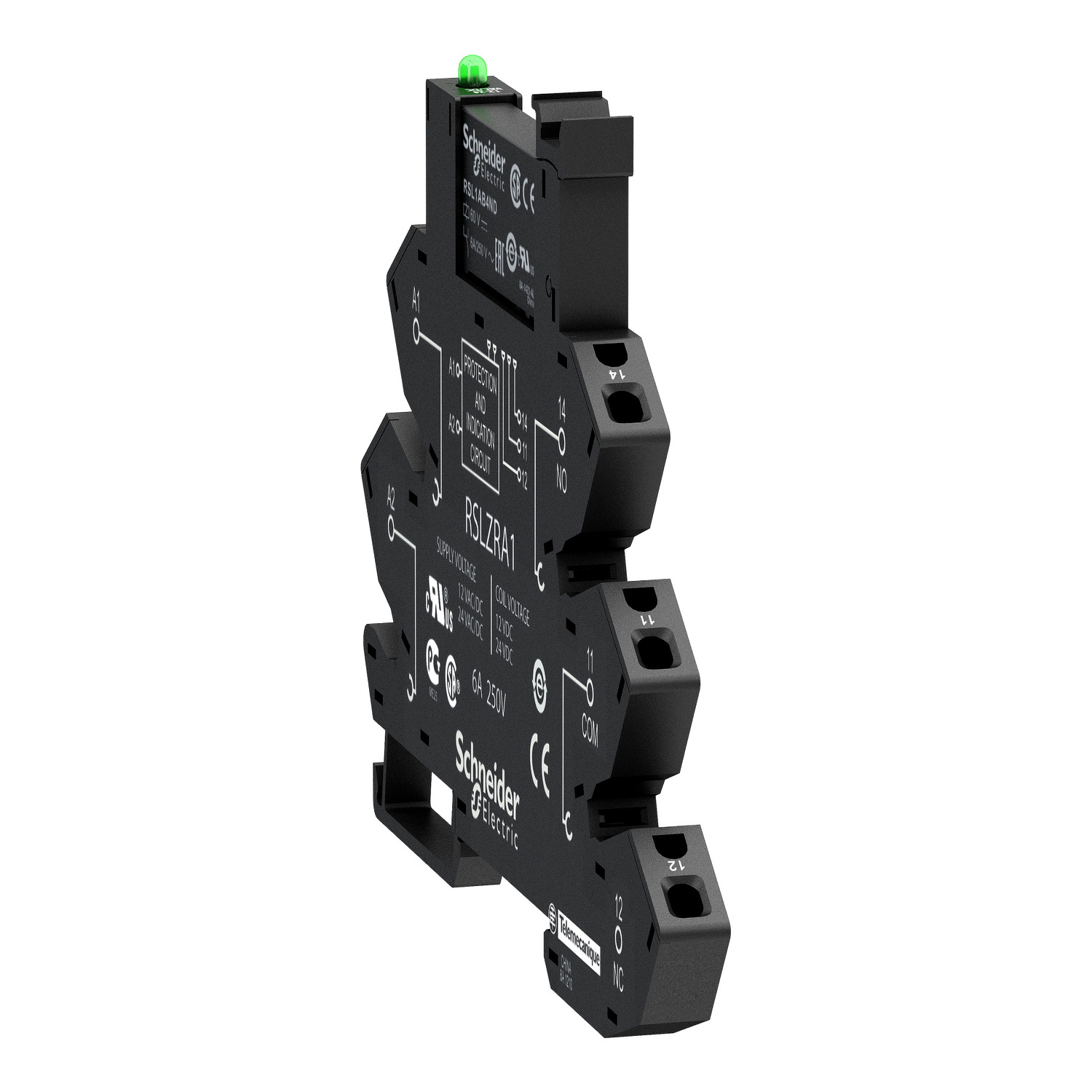

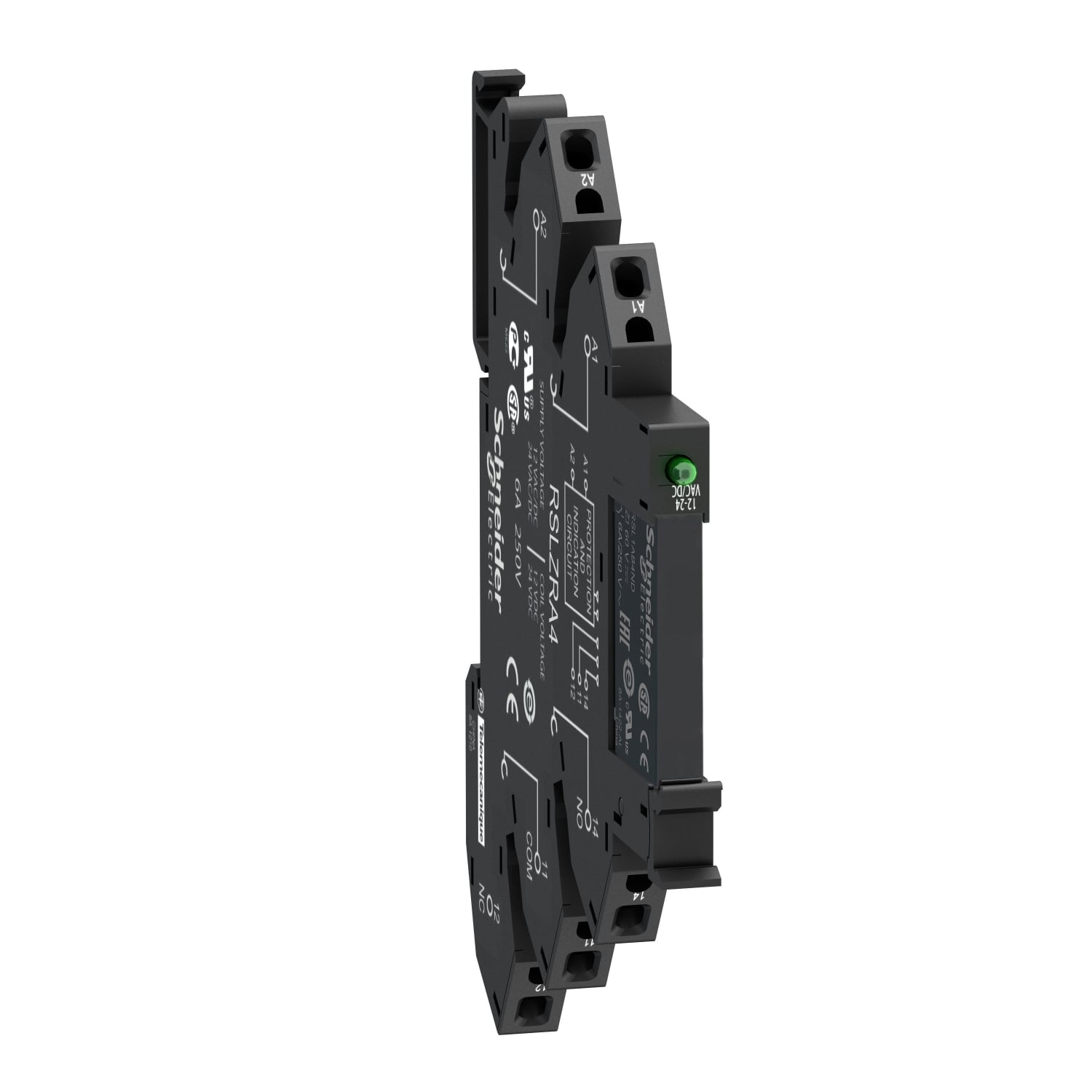

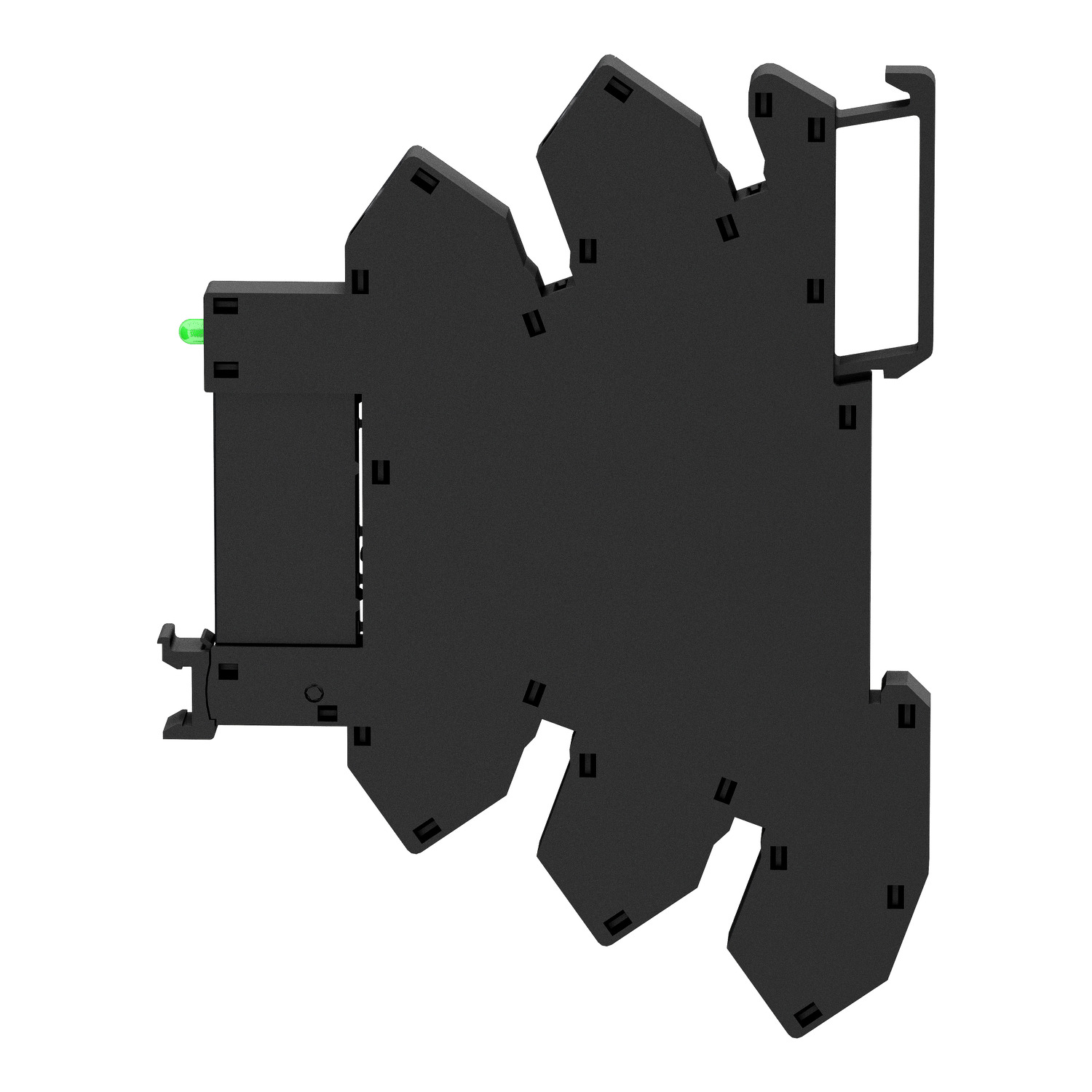

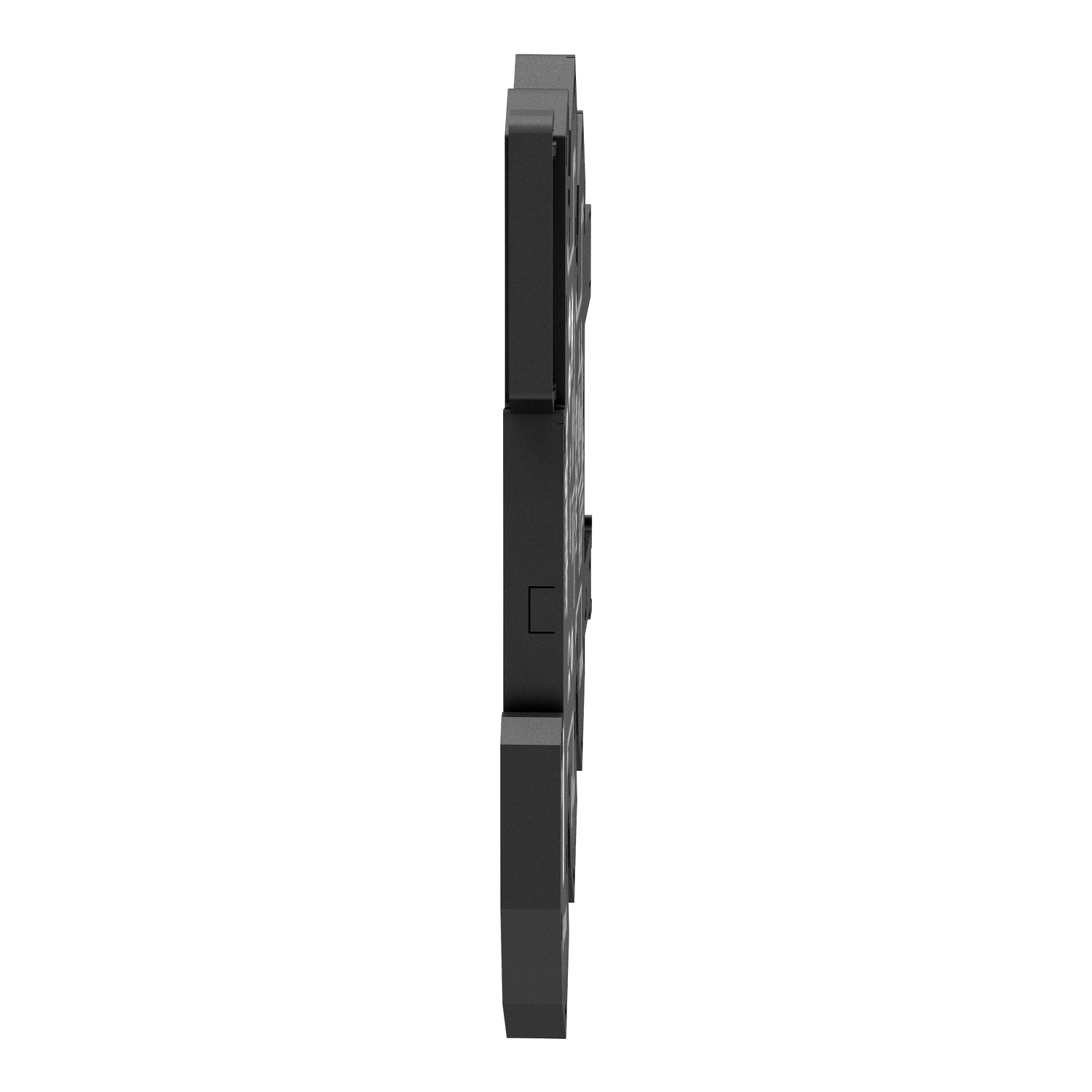

RSL1PRBU Zelio Slim Interface Relay, 6 A, 1NO-1NC 1 Form A/1 Form B Contact, 24 VDC V Coil

MFR:
Schneider Electric
MFR #:
RSL1PRBU
Item #:
313959

Availability

Location Available Qty
Available Available to Order
$30.98 each

This Harmony RSL slim interfacing plug-in relay has a coil control voltage of 24V DC and has 1 changeover contact SPDT (single pole double throw) with a rating of 6A. It has large choice of number of contacts for high rated current use. It also offers LED indicator and protection circuit. It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere. One of the slimiest interface relay on the market, with 6mm width, it can be installed nearly anywhere. It is compatible with high breaking capacity or low-level current application requirements. Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs). Status display with LED, clearly signal both in the day and night. 0 0 0 0 0 0 0 0 0 0

Manuals and Documentation
Catalog Number RSL1PRBU
Manufacturer Schneider Electric
Brand SCHNEIDER ELECTRIC
Warranty Description Contractual Warranty:18 months
Country of Origin China
Made in USA No
Connection Spring terminals, 1 x 0.2...1 x 1.5 mm² AWG 24...AWG 16) flexible with cable end;spring terminals, 1 x 0.2...1 x 1.5 mm² AWG 24...AWG 16) solid without cable end
Contact Configuration 1 C/O
Contact Rating Standard
Mounting Din Rail
Operating Cycles <= 72000 cycles/hour no-load;<= 360 cycles/hour under load
Special Features Any position
Standard CE
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=267967974&lang=en-us
GTIN 03606480077906
Item Type Flat (PCB type);Pre-assembled plug-in relay with socket
