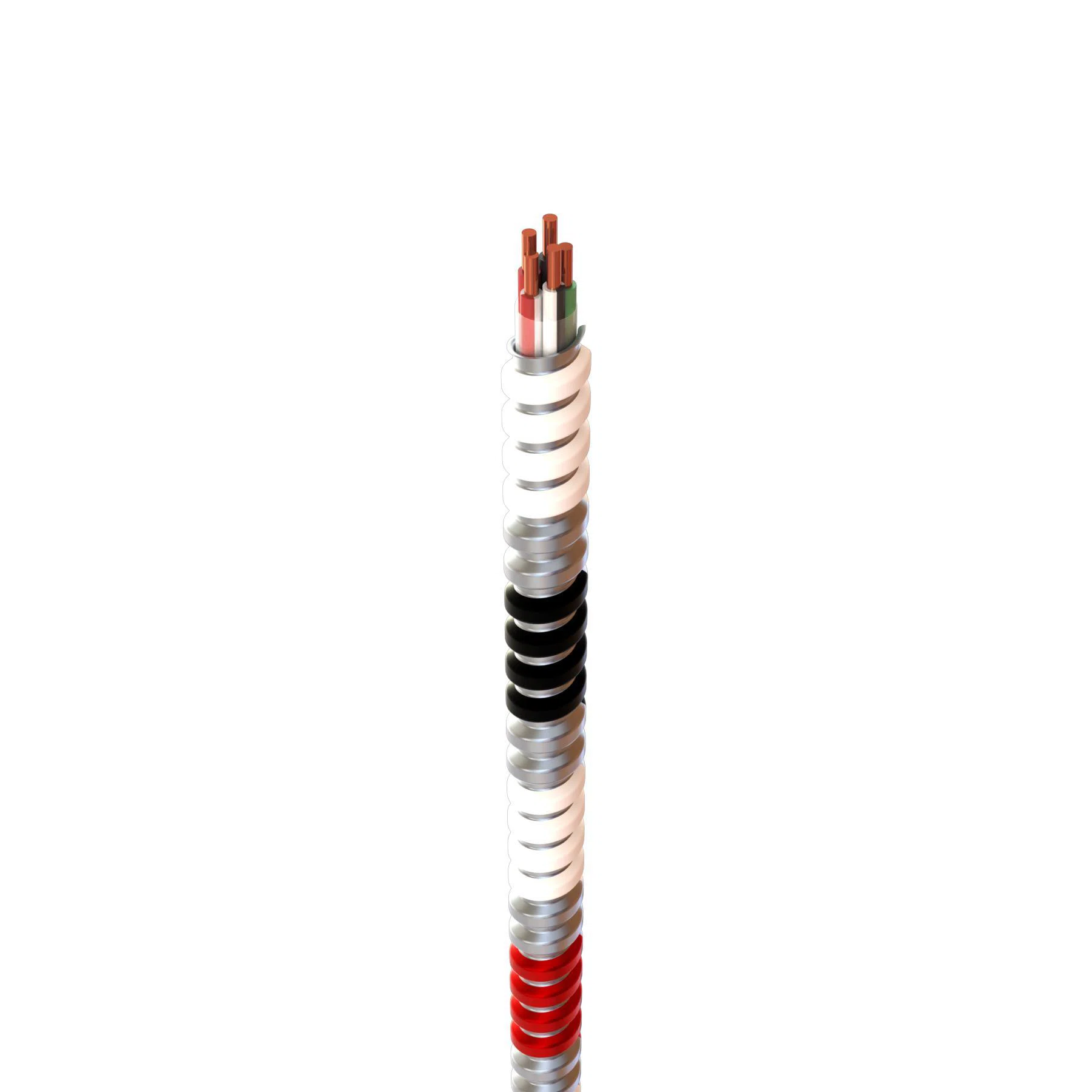

3904-60-00 MC-Plus Lite Type MC Traditional Neutral Per Phase Cable With Grounding and Neutral Conductor, Reel Packaging, 600 V AC, (4) 12 AWG Solid Copper Conductor, 1000 ft L
- MFR:
- Atkore
- MFR #:
- 3904-60-00
- UPC:
- 077680259370
- Item #:
- 313832
3904-60-00 MC-Plus Lite Type MC Traditional Neutral Per Phase Cable With Grounding and Neutral Conductor, Reel Packaging, 600 V AC, (4) 12 AWG Solid Copper Conductor, 1000 ft L
- MFR #:
- 3904-60-00
- UPC:
- 077680259370
- Item #:
- 313832
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$7.067
foot
Atkore's MC Plus is the modern-day Type MC homerun cable that incorporates a neutral per-phase design ideal for multi-wire branch circuit applications and addresses harmonics distortions in power distribution systems. MC Plus's neutral per-phase design eliminates shared neutrals and the risk of overloading. This design also helps quickly identify faulty circuits, reducing outages. The MC Plus cable offers improved safety and efficiency in electrical systems for a range of applications.
Manuals and Documentation
Features
- Technically equivalent and economically superior to traditional raceway and wire installations
- Eliminates shared neutrals and addresses harmonic distortions in power distribution systems
- Decreases the time it takes to identify a faulty circuit because only the affected single-phase breaker will trip thus, allowing the rest of the electrical systems to continue to operate and reducing the length of unnecessary outages
- ColorSpec ID/Color-Trak ID System
- White steel armor with phase and neutral ID painted directly onto the armor for added identification without the added step of opening up the panel to determine circuit type
- Redundant Grounding
- Isolated Ground (I.G.) configuration with 2 Green grounds, 1 solid green, 1 with yellow stripe available upon request
| Manufacturer Part Number | 3904-60-00 |
| Brand | AFC Cable Systems |
| Manufacturer | Atkore |
| UPC | 077680259370 |
| Country Of Origin | US |
| Conductor Size | 12 AWG |
| Conductor Type | Solid Copper |
| Insulation Material | THHN/THWN |
| Jacket Material | Interlocked Galvanized Steel Strip |
| Length | 1000 ft |
| Number Of Conductors | 4 |
| Outside Diameter | 0.586 in |
| Temperature Rating | 90 deg C |
| Type | Type MC Traditional |
| Voltage Rating | 600 V AC |
| Alternative Part Number | 13429117 |
| Manufacturer Item Status | Active |
| Country | USA |
| Standards Approvals | UL 83 | UL 1479 | UL 1569 | UL 1581 | UL 2556 | UL File No. E80042 | NEC® 210.4(B), 230.43, 300.22(C), 330, 392, 396.10(A), 645 | Federal Specifications A-A-59544 (Formerly J-C30B) | Meets OSHA and HUD Requirements | UL Classified 1, 2 and 3 Hour Through (Fire Stop) Penetration Product R-14141 | Cable Tray Rated, Install per NEC® | Environmental Air Handling Space Installation per NEC® 300.22 |
| Application | For branch circuit wiring for a variety of power distribution systems from lighting, to devices and receptacles, branch circuit to computers and other electronic equipment where additive harmonics currents from non-linear switching loads may be present |
| Packaging Type | Reel |
