Hubbell Wiring Device - Kellems

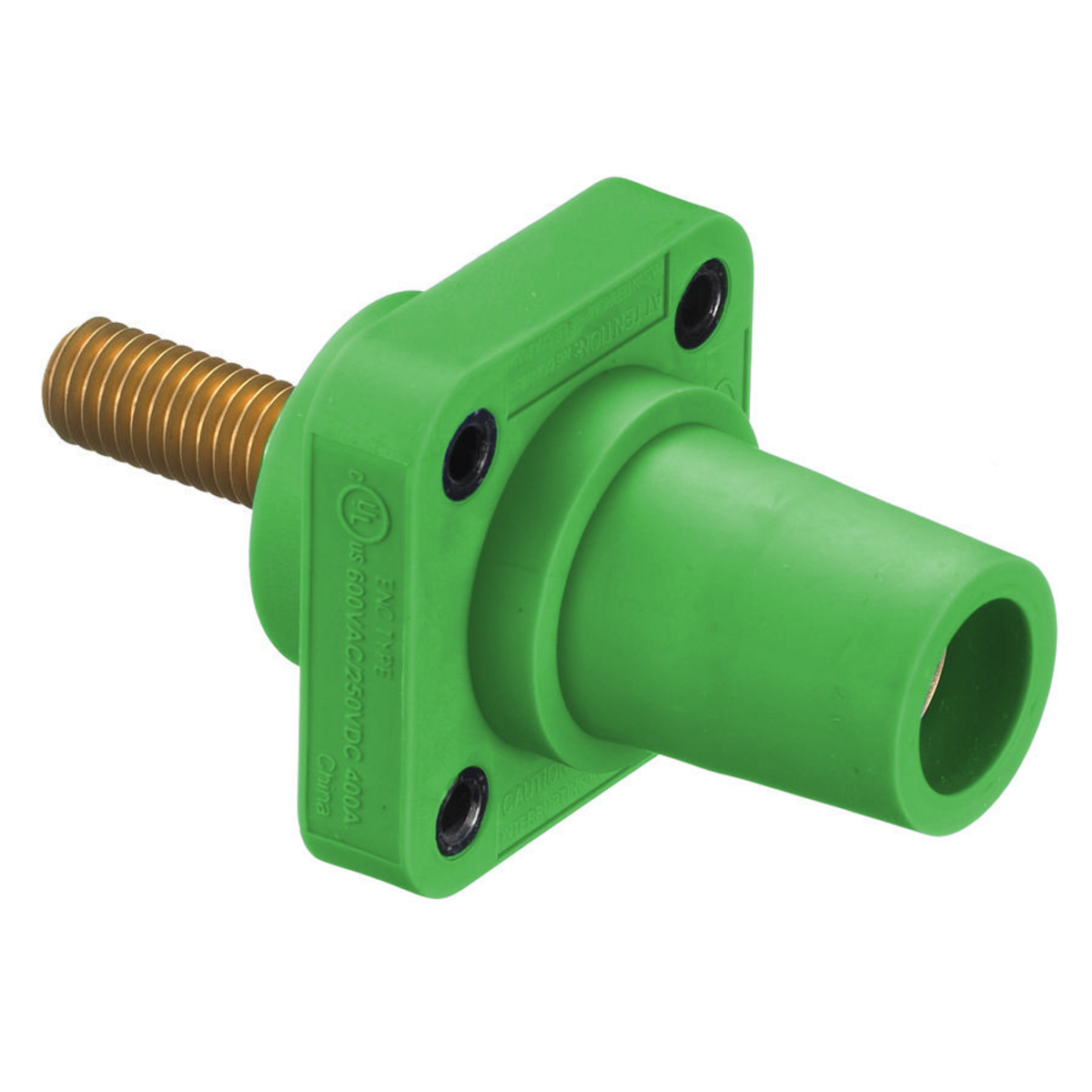

HBLFRSCGN 16 Series 1-Pole Female Heavy Duty Industrial Grade Standard Straight Single Pole Receptacle With 300/400 A Plug, 600 V AC/250 V DC, 400 A, 4 to 4/0 AWG Wire, Stud Connection

MFR:
Hubbell Wiring Device-Kellems
MFR #:
HBLFRSCGN
UPC:
783585093628
Item #:
31369

Availability

Location Available Qty
Available Available to Order
$68.59 each

Hubbell Wiring DeviceKellems offers a full line of innovative, high quality, Series 15 and Series 16 single pole plugs, receptacles and accessories for the most demanding environments. Single pole devices are the right choice for supplying temporary electrical power distribution for entertainment, theme parks, carnival equipment, concerts, movie making and numerous other applications requiring temporary power. Single pole devices have been designed with ease of assembly and disassembly in mind, no special tools are required. A high strength non-conductive retaining screw is all that is needed to securely lock the contacts to the insulated sleeve.

Manuals and Documentation
Catalog Number HBLFRSCGN
Manufacturer Hubbell Wiring Device-Kellems
Brand Hubbell Wiring Device - Kellems
Country of Origin China
Made in USA No
Amperage Rating 400
Application High Ampacity Connections
Color Green
Connection Stud Type
Material Elastomer / Elastomeric
Mounting Mounting Holes
Number of Poles 1
Number of Wires 1-Wire
Phase 1
Special Features Standard
Standard National Electric Code (NEC), ANSI/NFPA 70;UL and cUL Listed;UL Enclosure Types 3R, 4X, 12
UPC 783585093628
GTIN 00783585093628
Item Type Receptacle
Size Standard Sized Product
Environmental Conditions Indoor Dry Unless Protected By Additional Means
Voltage Rating 600 AC, 250 DC Max
Wattage 240,000
Wire Size #4 AWG to #4/0 AWG
