Hubbell Wiring Device - Kellems

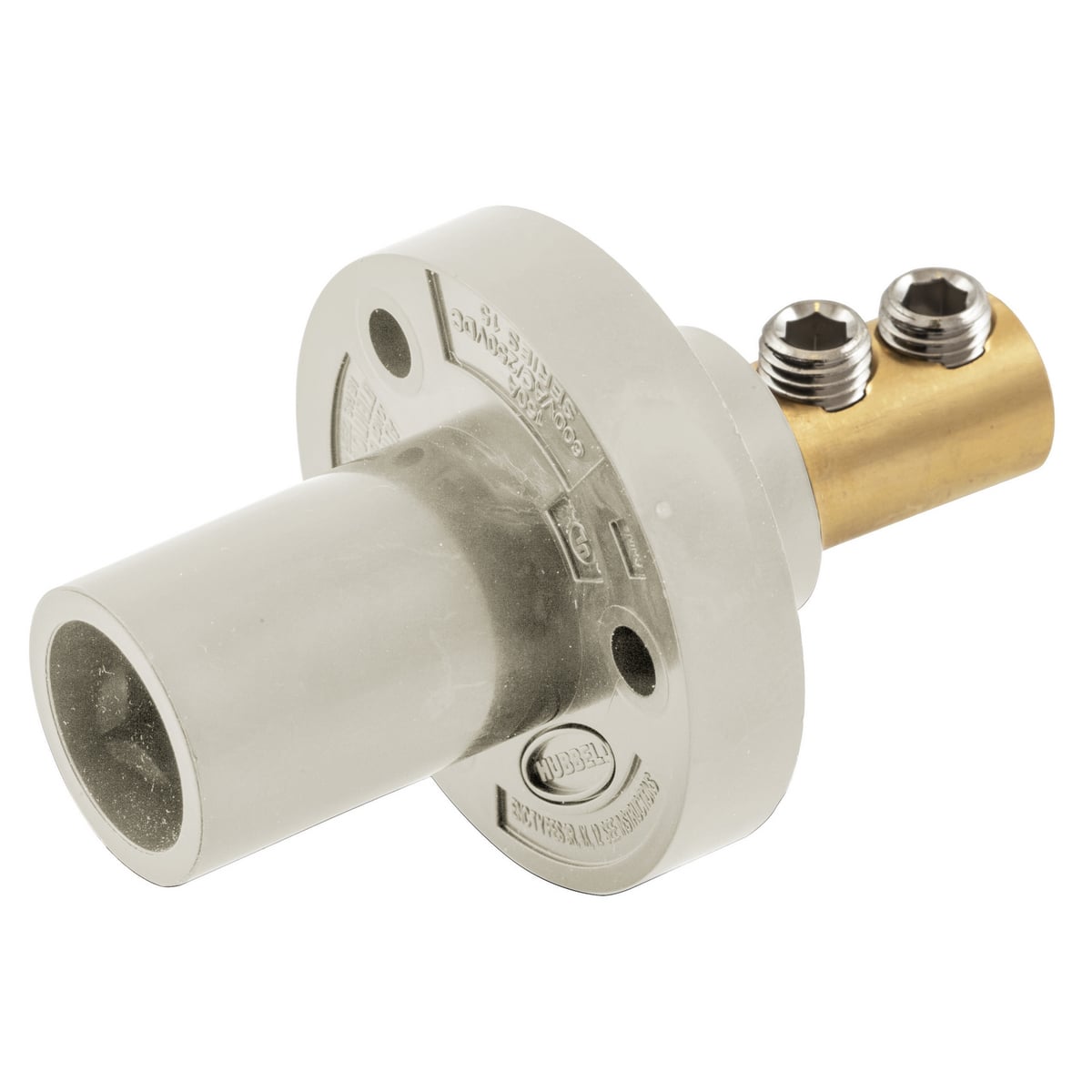

HBL15MRW 15 Series 1-Pole Extra Heavy Duty Male Standard Single Pole Receptacle With SC/PPC Cord and Inlet, 600 V AC/250 V DC, 150 A, 4 AWG Wire, Double Set Screw Connection

MFR:
Hubbell Wiring Device-Kellems
MFR #:
HBL15MRW
UPC:
783585458137
Item #:
311500

Availability

Location Available Qty
Available Available to Order

Hubbell Wiring DeviceKellems offers a full line of innovative, high quality, Series 15 and Series 16 single pole plugs, receptacles and accessories for the most demanding environments. Single pole devices are the right choice for supplying temporary electrical power distribution for entertainment, theme parks, carnival equipment, concerts, movie making and numerous other applications requiring temporary power. Single pole devices have been designed with ease of assembly and disassembly in mind, no special tools are required. A high strength non-conductive retaining screw is all that is needed to securely lock the contacts to the insulated sleeve.

Manuals and Documentation
Catalog Number HBL15MRW
Manufacturer Hubbell Wiring Device-Kellems
Brand Hubbell Wiring Device - Kellems
Country of Origin China
Made in USA No
Amperage Rating 150
Application Extra Heavy Duty Industrial
Color White
Connection Double Set Screw
Material Brass/Thermoplastic
Mounting Screw
Number of Poles 1
Phase 1
Special Features Standard Product
Standard National Electric Code (NEC), ANSI/NFPA 70;UL and cUL Listed;UL Enclosure Types 3R, 4X, 12
UPC 783585458137
GTIN 00783585458137
Item Type Receptacle, Double Set Screw
Size Standard Sized Product
Environmental Conditions Indoor Dry Unless Protected By Additional Means
Voltage Rating 250 DC, 600 AC
Wattage 90,000
Wire Size #4 AWG Type SC/PPC Wire
