Discontinued
Disco-Grip DPF18-206FIB-C Loose Piece Disconnect
MFR: Panduit
MFR #: DPF18-206FIB-C
UPC: 074983203772
Item #: 309438
Discontinued
Disco-Grip DPF18-206FIB-C Loose Piece Disconnect
MFR #: DPF18-206FIB-C
UPC: 074983203772
Item #: 309438
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$1.48
each

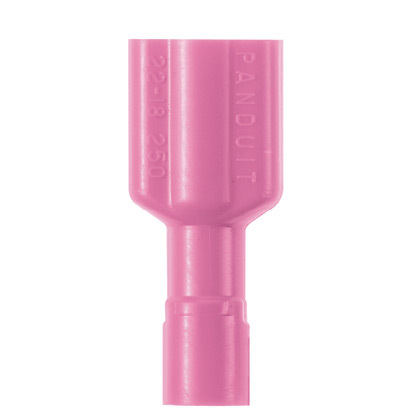

The vibration resistant DiscoGrip female disconnect is made of brass and is tin-plated. It is fully insulated in red premium nylon housing. It has a tab size of 0.205/0.187 x 0.02 (5.2/4.7 x 0.5 mm) and supports a wire range of 22-18 AWG (0.5-1.0 mm). It is 0.78 (19.8 mm) long and 0.31 (7.9 mm) wide. The disconnect has a funnel entry barrel configuration and a butted seam barrel. It comes in bottles of 100.
Manuals and Documentation
- Catalog Number
- DPF18-206FIB-C
- Manufacturer
- Panduit
- Brand
- Panduit
- Country of Origin
- Mexico
- Made in USA
- No
- Color
- Red
- Connection
- Funnel Entry
- Finish
- Tin-Plated
- Insulation
- Premium Nylon
- Material
- Brass
- Standard
- UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153
- UPC
- 074983203772
- GTIN
- 00074983203772
- Item Type
- Disconnect
- Temperature Rating
- 221 Degrees Fahrenheit (105 Degrees Celsius)
- Voltage Rating
- 600
- Wire Size
- #18 AWG
