Killark

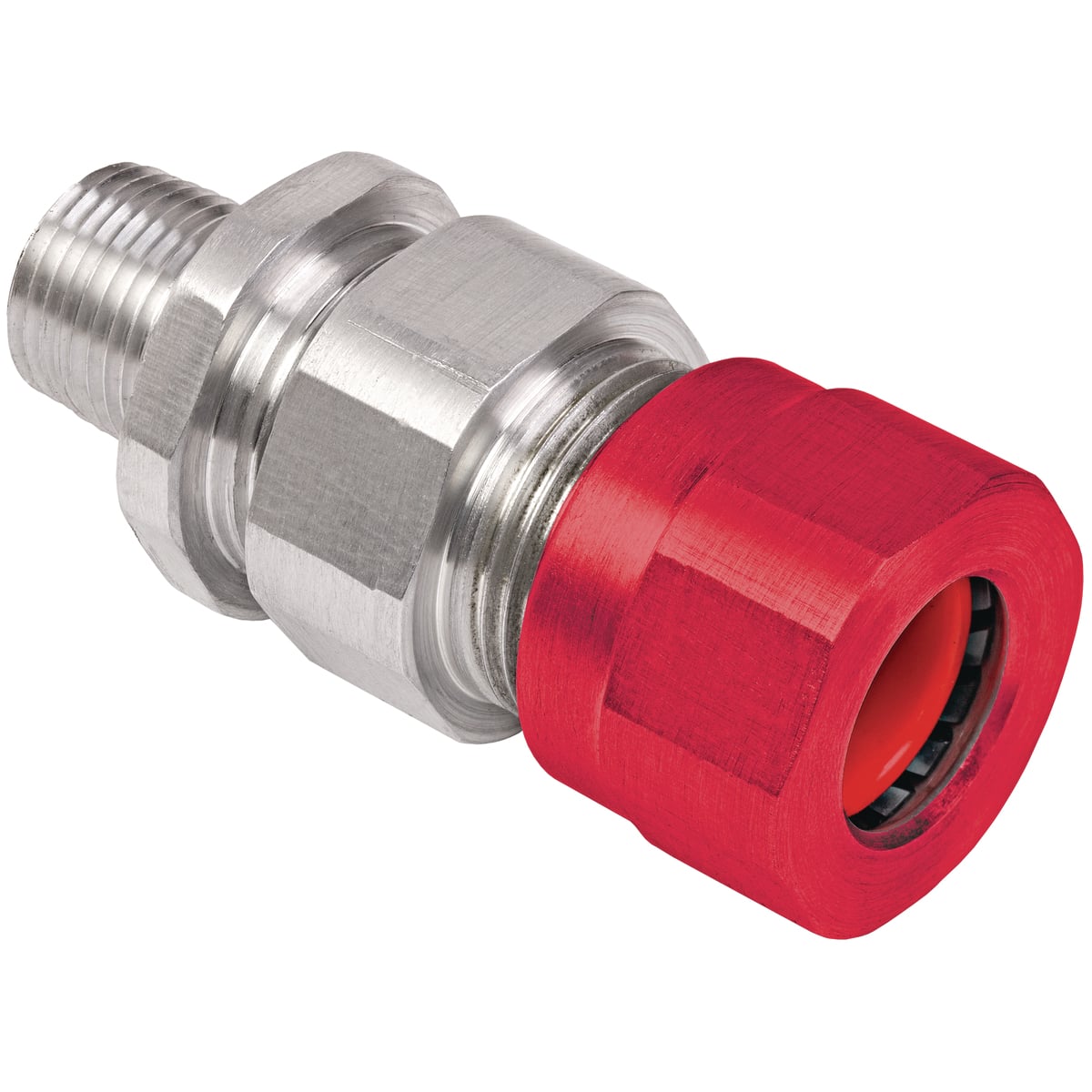

MCX1C Cable Connector, 1/2 in Trade, 0.6 to 0.82 in Cable Openings, Copper-Free Aluminum

MFR:
Killark, a Hubbell affiliate
MFR #:
MCX1C
UPC:
783936960548
Item #:
309065

Availability

Location Available Qty
Available Available to Order
$168.97 each
Manuals and Documentation
Catalog Number MCX1C
Manufacturer Killark, a Hubbell affiliate
Brand Killark
Country of Origin United States
Made in USA Yes
Application Designed for use with jacketed interlocked, continuously corrugated and welded armor cable. Install where it is essential to provide positive grounding to the cable with a complete gas block/explosion proof seal. Also for a Type 3, 4 connection.
Color Silver;red
Material Copper-free aluminum (less than 4/10 of 1%)
NEMA Rating 3, 4
Special Features 360 Degrees armor grounding spring is reuseable. Robust threads and world class seal enables easy installation with minimal torque required. Provides a barrier seal between the individual insulated cores within the cable and prevents entry of the products of an explosion into the cable. Assembly of the cable gland compresses and distributes the compound evenly to create a barrier seal at the point of entry into the enclosure. Provides cable retention and a low smoke and fume, zero halogen seal onto the cable's outer sheath. Design meets and exceeds third party requirements for cable retention. Provides sealing back nut plus inner O-ring seal to prevent moisture ingress to the cable armor and enclosure. Copper-free aluminum construction for harsh, corrosive, and hazardous duty. Back nut is red to indicate hazardous area product.
Standard cCSAus
UPC 783936960548
GTIN 00783936960548
Item Type Aluminum cable connector
Size 3.23" L x 0.82" W x 0.82" H
Environmental Conditions Wet locations
Temperature Rating -50 Degrees C to +60 Degrees C
