LRD1508 LRD Thermal Overload Relay, 2.5 to 4 A
- MFR:
- Schneider Electric
- MFR #:
- LRD1508
- UPC:
- 785901290834
- Item #:
- 30770
LRD1508 LRD Thermal Overload Relay, 2.5 to 4 A
- MFR #:
- LRD1508
- UPC:
- 785901290834
- Item #:
- 30770
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |

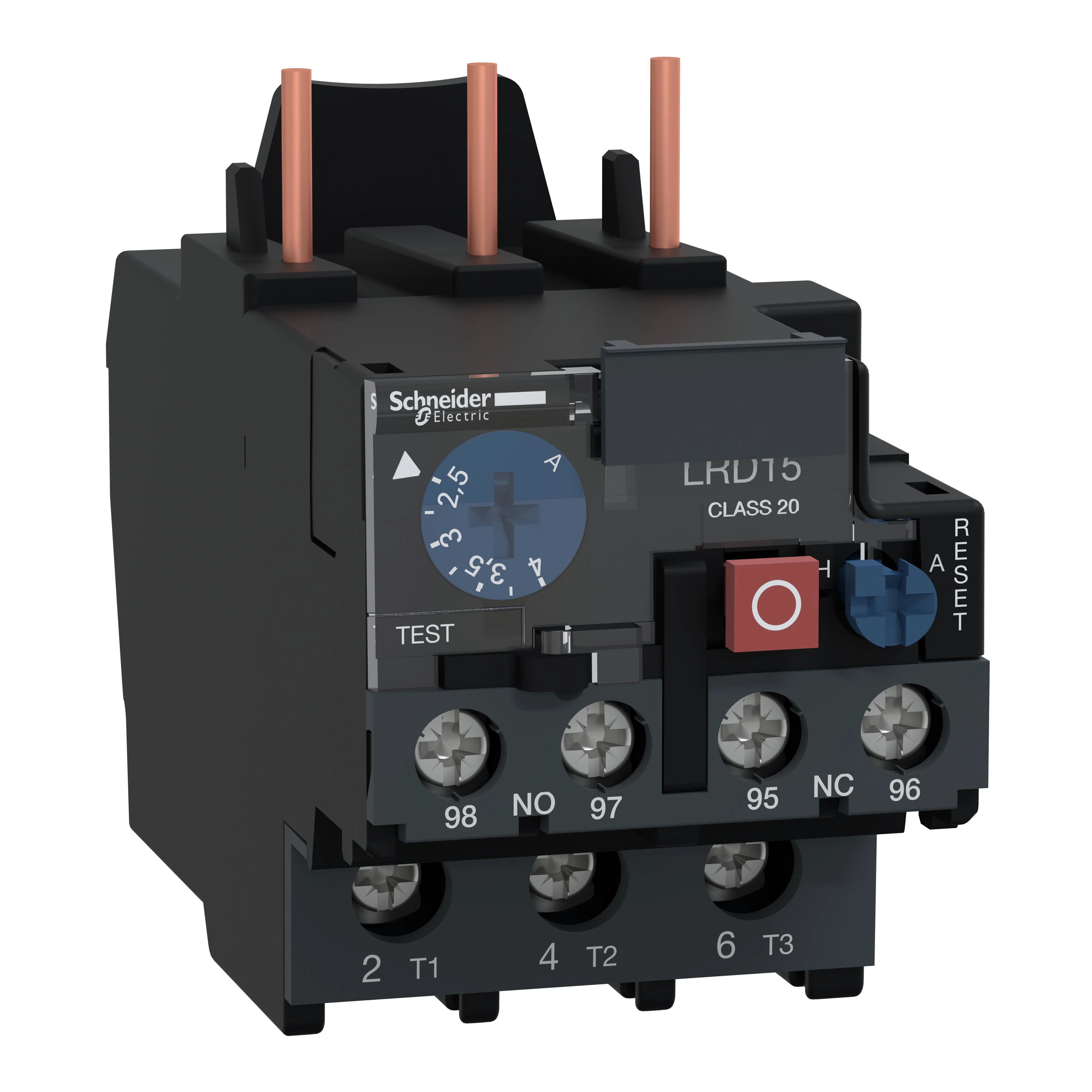

TeSys LRD thermal overload relay, 4A/690V, thermal setting range 2.5-4A, tripping class 20, for protection of 3-phase motors 1.1-1.5kW@400V. Differential device with phase failure and load unbalance detection. It provides a thermal adjustement dial, a manual-automatic reset selector, a test selector for simulation of a tripping, reset and stop buttons, a flag indicator and 2 auxiliary contacts 1NO+1NC for fault signalling. Settings are protected by a transparent cover lockable by sealing. Connection by screw clamp terminals, it connects directly to the bottom terminals of 3-pole contactors LC1D09-D38. Mounting on DIN rail or screw fixing, separated from the contactor, with use of a terminal block LAD7B105 (to be ordered separately). Multi standards certified (IEC, UL, CSA, Marine).
Manuals and Documentation
Features
- Digital customer experience for technical documents
- Tesys D thermal overload relays are designed to protect a.c. circuits and motors against overloads
- New modern look and feel of all machines
- Easier to install and operate with multi-standard screws
- 2.5 - 4 A
| Manufacturer Part Number | LRD1508 |
| Brand | Schneider Electric |
| Manufacturer | Schneider Electric |
| UPC | 785901290834 |
| EAN | 3389110146684 |
| Country Of Origin | FR |
| Amperage Rating | 2.5 to 4 A |
| Dimensions | 1.8 in W x 3.6 in D |
| Enclosure Type | IP20 |
| Mounting Type | Plate/Rail |
| Series | LRD |
| Temperature Rating | -4 to 140 deg F |
| Type | Thermal |
| Alternative Part Number | 23728746 |
| Manufacturer Item Status | Discontinued |
| Country | USA |
| Warranty | 18 Months |
| Standards Approvals | ECCN | REACH | WEEE | EAR99 | IP20 | IEC 60529 | EN/IEC 60947-4-1 | EN/IEC 60947-5-1 | UL 60947-4-1 | UL 60947-5-1 | CSA C22.2 60947-4-1 | CSA C22.2 60947-5-1 | IEC | UL | CSA EAC | DNV-GL LROS LLOYDS REGISTER OF SHIPPING UKCA | IEC60335-1 |
| Contact Rating | 4 A at 690 V AC |
| Frequency Rating | 0 to 400 Hz |
| Number Of Poles | 3 |
| Power Rating | 1.1 to 1.5 kW at 400 V |
| Terminal Type | Screw Clamp |
