Hubbell Wiring Device - Kellems

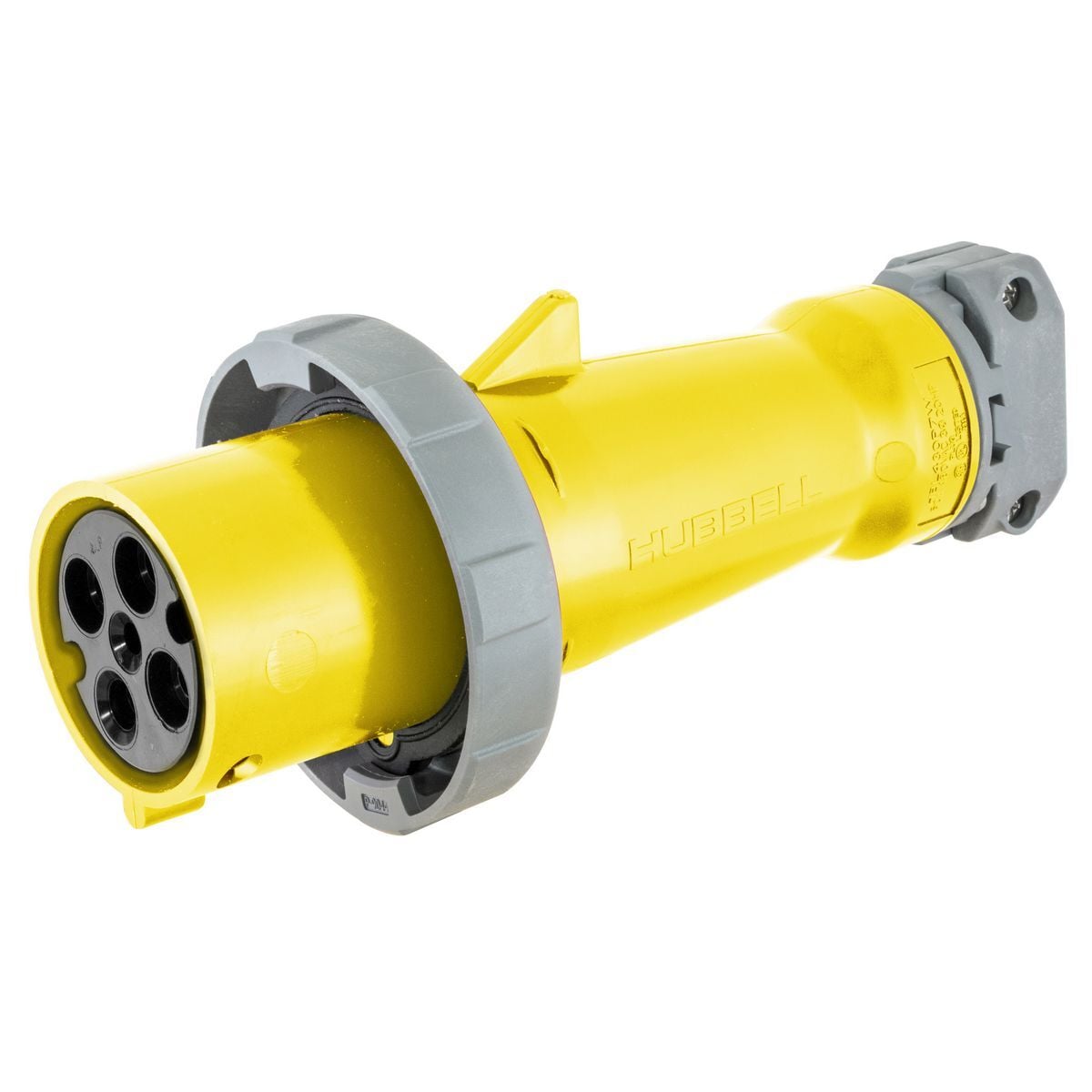

M4100C12R Female Heavy Duty Reversed Service Standard Watertight Cord Mount Pin and Sleeve Connector, 125/250 V AC, 100 A, 3 Poles, 4 Wires, Yellow

MFR:
Hubbell Wiring Device-Kellems
MFR #:
M4100C12R
UPC:
783585410036
Item #:
30554

Availability

Location Available Qty
Available Available to Order
$1,428.74 each

Corrosion Resistant Devices that Withstand the Most Abusive Environments - Hubbell offers a superior grade of 100A IEC Pin and Sleeve designed for use in the most demanding environments. These devices feature nickel plated solid brass pins for long life and reliable electrical contact in the most corrosive environments. They have a high visibility yellow supertough nylon housing. The heavy duty external cord clamps provide maximum cord retention to maintain secure terminations. The screws and fasteners are made from stainless steel.

Manuals and Documentation
Catalog Number M4100C12R
Manufacturer Hubbell Wiring Device-Kellems
Brand Hubbell Wiring Device - Kellems
Country of Origin United States
Made in USA Yes
Amperage Rating 100
Application Marine Wiring Devices
Color Yellow
Conductor Range #3 AWG to #1/0 AWG
Connection Pressure Screw Terminal
Insulation Insulated Body
Material Composite
Mounting Cord
Number of Conductors 4-Wire Grounding
Number of Poles 3
Special Features Reversed Service
Standard CSA Certified File LR280C;UL Classified to IEC 60309-1 IEC 60309-2;UL Listed, File E146033
UPC 783585410036
GTIN 00783585410036
Item Type Watertight Connector Body
Size Standard
Environmental Conditions Watertight
Temperature Rating Maximum Continuous: 75 Degrees C; Minimum Continuous: -40 Degrees C w/o impact, -25 Degrees with impact.
Voltage Rating 125/250
