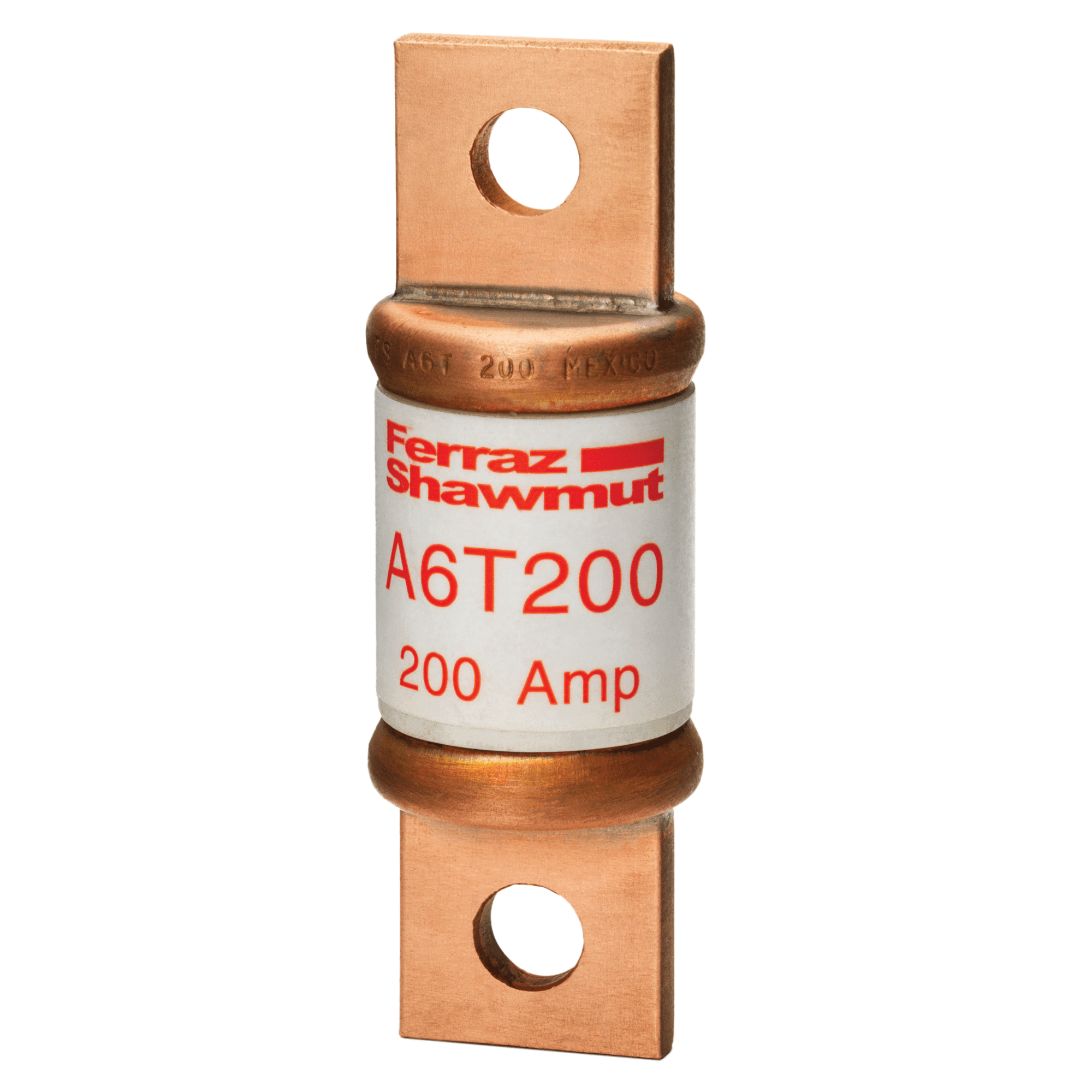

A6T200 Amp-Trap Current Limiting Low Voltage Fast Acting Fuse, 200 A, 600 V AC/300 V DC, 100/200 kA Interrupt, T Class, Cylindrical Body
- MFR:
- Mersen
- MFR #:
- A6T200
- UPC:
- 782001891480
- Item #:
- 30535
A6T200 Amp-Trap Current Limiting Low Voltage Fast Acting Fuse, 200 A, 600 V AC/300 V DC, 100/200 kA Interrupt, T Class, Cylindrical Body
- MFR #:
- A6T200
- UPC:
- 782001891480
- Item #:
- 30535
Availability
| Location | Available Qty |
|---|---|
| Available | 3 |
Fuse A6T - Class T - Fast-Acting 600VAC 300VDC 200A Blade Amp-Trap
Manuals and Documentation
| Catalog Number | A6T200 |
| Manufacturer | Mersen |
| Brand | Mersen |
| Country of Origin | Mexico |
| Made in USA | No |
| Amperage Rating | 200 |
| Application | Load centers Panelboards Switchboards Circuit breakers Metering centers |
| Connection | Blade |
| Interrupt Rating | 200 KA |
| Mounting | Bolt |
| Special Features | Extremely current-limiting for low peak let-thru current Unique dimensions prevent replacement by other fuse classes Blade-stamped catalog numbers for permanent identification Small physical size for greater design flexibility |
| Standard | UL listed to standard 248-15 File E2137 CSA certified to standard C22.2 no. 248.15 DC listed to UL standard 248 |
| UPC | 782001891480 |
| GTIN | 00782001891480 |
| Item Type | Class T |
| Size | 3.26 x 1.07 |
| Voltage Rating | 600 |
