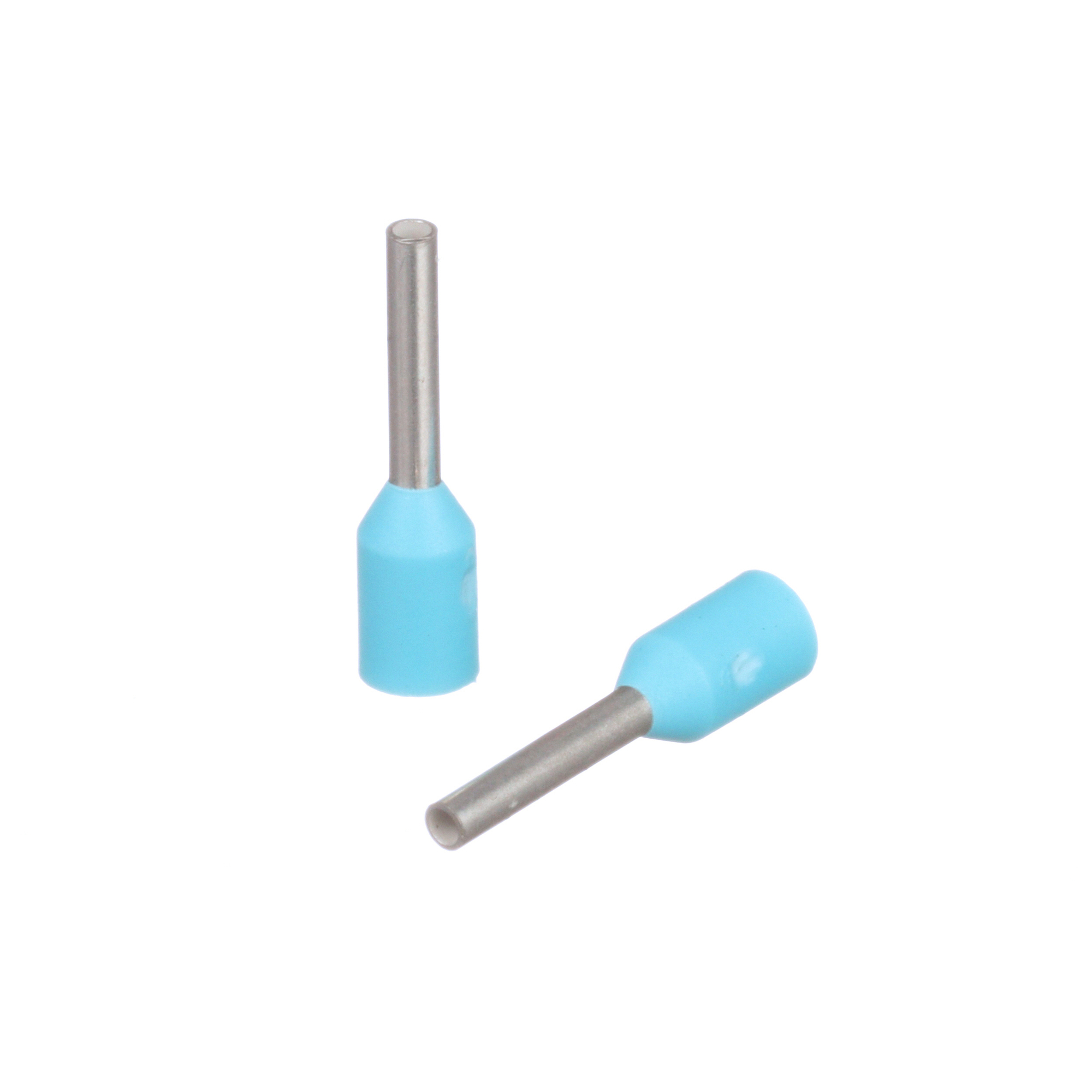

FSD74-6-D Type FSD Single Insulated Wire Ferrule, 22 AWG Stranded Conductor, 0.41 in L, Copper, Turquoise
- MFR:
- Panduit
- MFR #:
- FSD74-6-D
- UPC:
- 074983763979
- Item #:
- 305016
FSD74-6-D Type FSD Single Insulated Wire Ferrule, 22 AWG Stranded Conductor, 0.41 in L, Copper, Turquoise
- MFR #:
- FSD74-6-D
- UPC:
- 074983763979
- Item #:
- 305016
Availability
| Location | Available Qty |
|---|---|
| Available | 1,500 ea |
$0.268
each
The single wire DIN end sleeve insulated ferrule in turquoise has a funnel entry for faster insertion and lower installation cost. It is intended for American Wire Gauge (AWG) #24-22 (0.34mm) wire ferrules and supports a maximum wire insulated diameter of 0.07 (2.0mm). The insulated ferrule is 0.41 (10.5 mm) long and has a wire strip length of 0.375 (9.5mm). It comes in standard packages of 500.
Manuals and Documentation
| Catalog Number | FSD74-6-D |
| Manufacturer | Panduit |
| Brand | Panduit |
| Country of Origin | Germany |
| Made in USA | No |
| Color | Turquoise |
| Finish | Tin-Plated |
| Insulation | Polypropylene |
| Material | Copper |
| Standard | DIN 46228 Part 4, CSA C22.2 No. 291-14 |
| UPC | 074983763979 |
| GTIN | 00074983763979 |
| Item Type | Covered Single Wire Ferrule |
| Temperature Rating | 221 Degrees Fahrenheit (105 Degrees Celsius) |
| Wire Size | 22 AWG |
