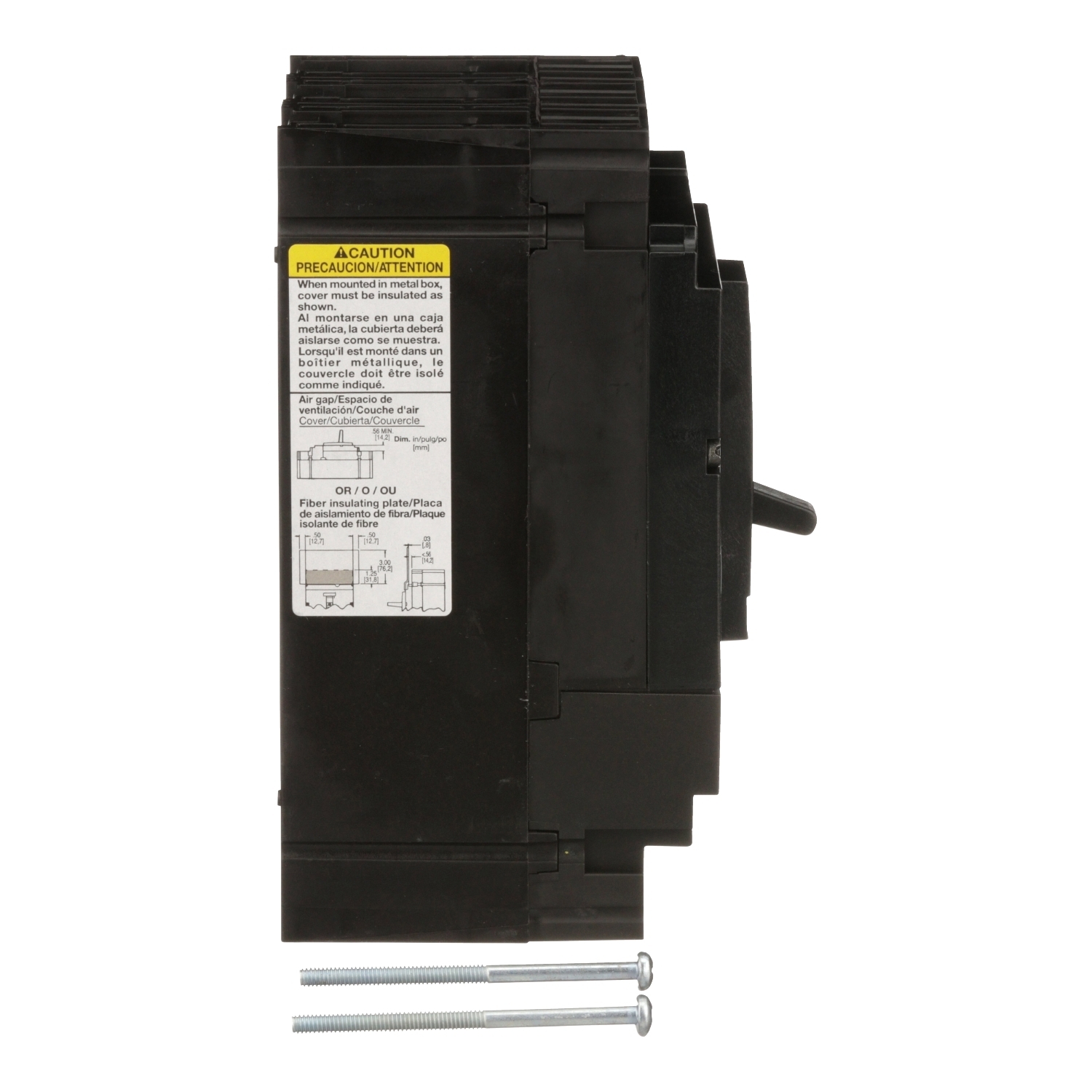

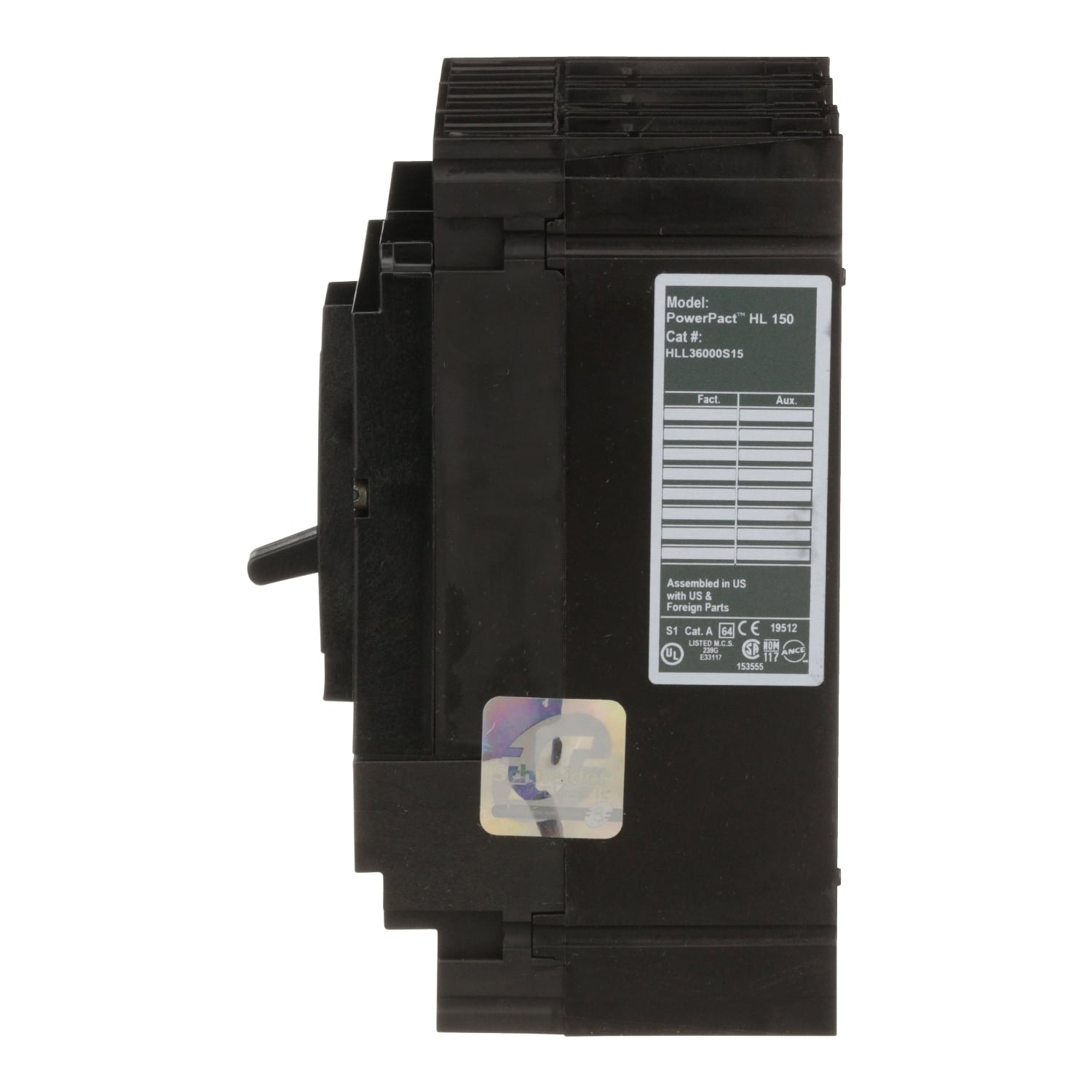

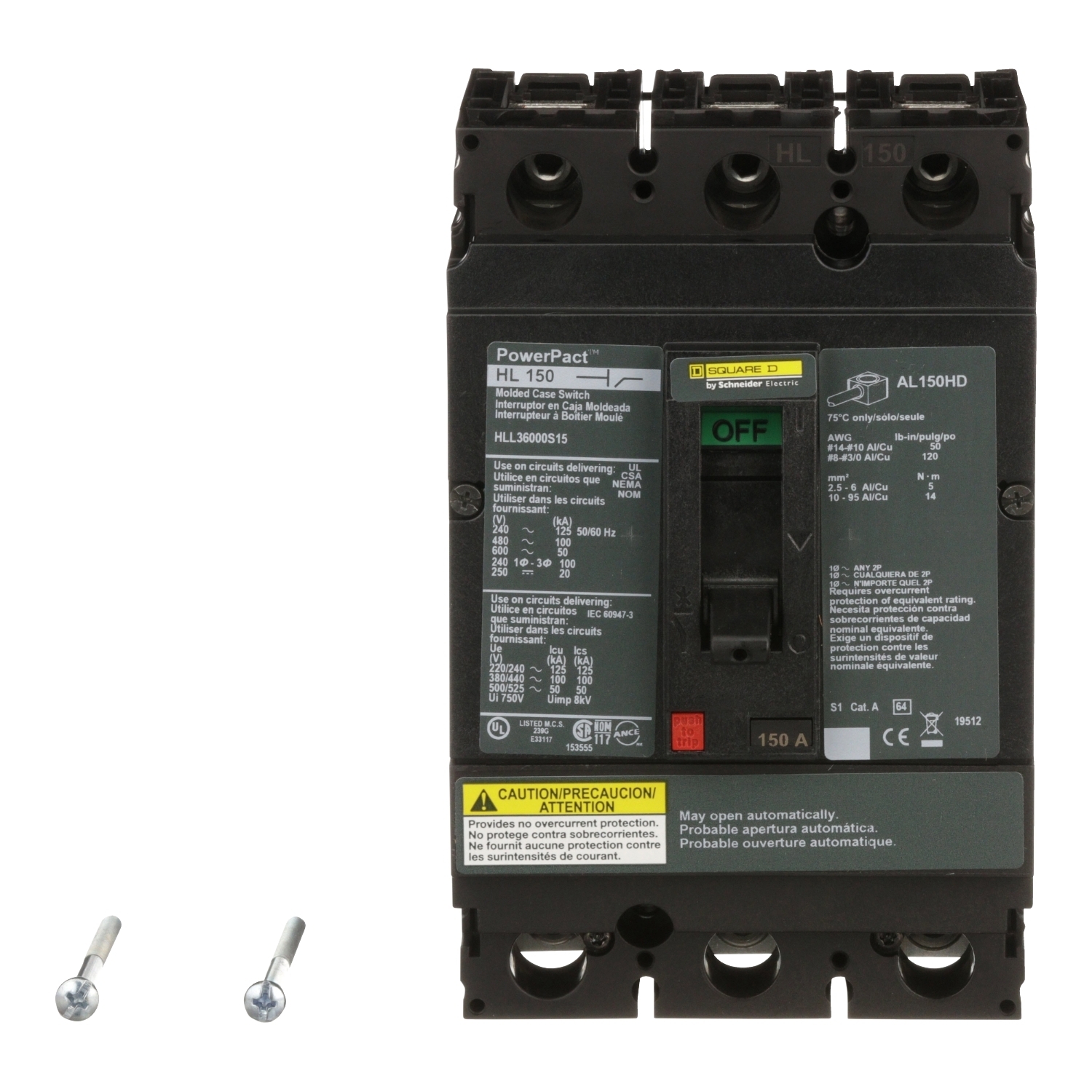

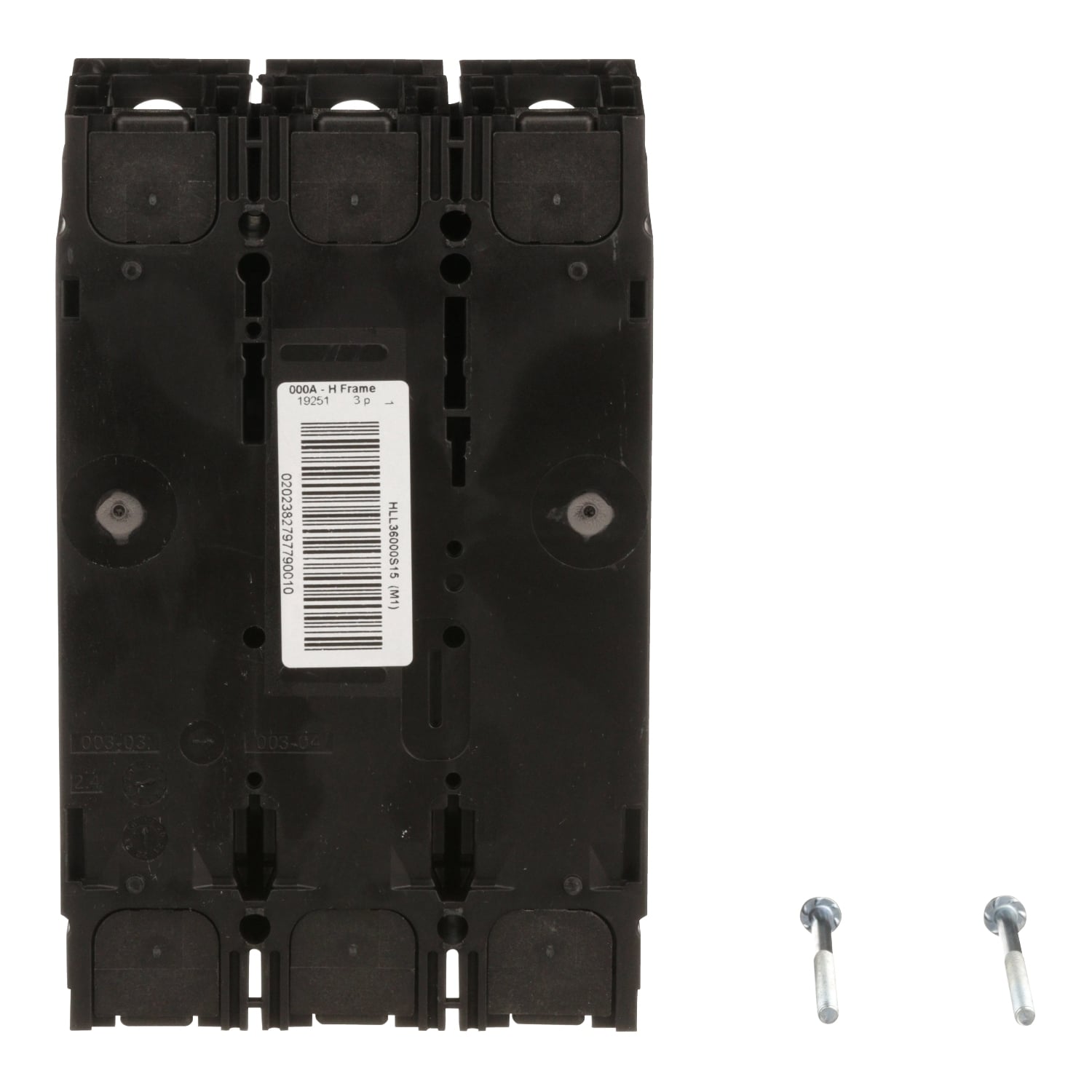

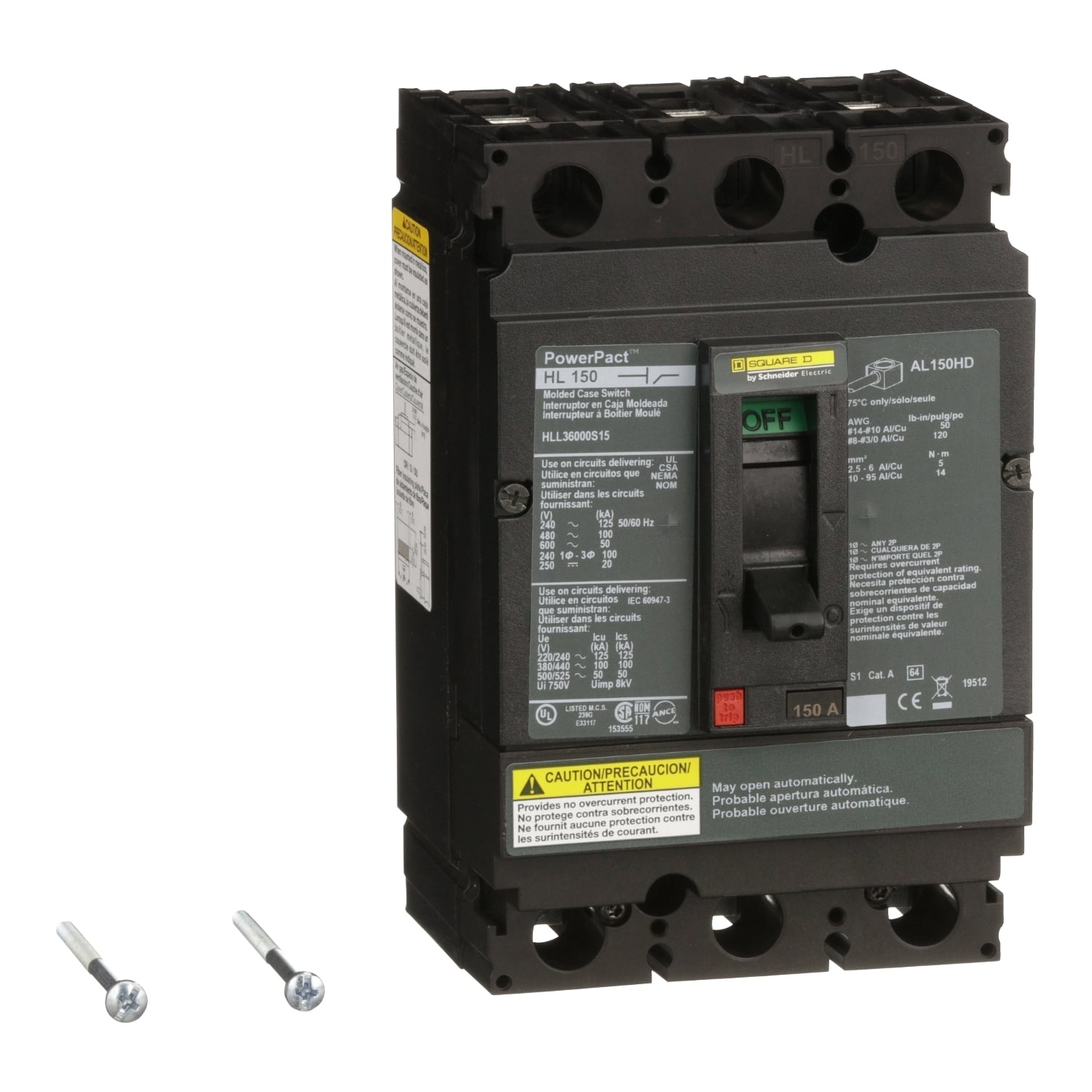

HLL36000S15 PowerPact Automatic Molded Case Switch, 600 V AC/250 to 500 V DC, 150 A, 125 kA at 240 VAC/100 kA at 480 VAC/50 kA at 600 VAC/20 kA at 250 VDC Interrupt, 3 Poles, Magnetic Trip
- MFR:
- Schneider Electric
- MFR #:
- HLL36000S15
- UPC:
- 785901683186
- Item #:
- 304321
HLL36000S15 PowerPact Automatic Molded Case Switch, 600 V AC/250 to 500 V DC, 150 A, 125 kA at 240 VAC/100 kA at 480 VAC/50 kA at 600 VAC/20 kA at 250 VDC Interrupt, 3 Poles, Magnetic Trip
- MFR #:
- HLL36000S15
- UPC:
- 785901683186
- Item #:
- 304321
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
PowerPacT H-Frame automatic switches are a disconnect device and can be used to open and close a circuit under normal operating conditions. The automatic switches are similar in construction, use the same accessories, and offer the same connection possibilities as the H-Frame circuit breaker version. The switches have a factory set, nonadjustable trip point calibrated to protect the molded case switch. The automatic switch can make and break its rated current. PowerPacT H-Frame switches are available in unit mount, I-Line, plug in, or drawout constructions. This switch is unit mount and has lugs on both line and load sides. This PowerPacT H, 150A, 3 pole, automatic switch has a short circuit withstand current rating of 50kA at 600VAC. PowerPacT H automatic switches comply to UL, CSA, ANCE, and IEC standards.
Manuals and Documentation
| Catalog Number | HLL36000S15 |
| Manufacturer | Schneider Electric |
| Brand | SQUARE D |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | United States |
| Made in USA | Yes |
| Connection | Lugs, line;lugs, load; x AWG 14...AWG 3/0 ( aluminium/copper ) |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=424509&lang=en-us |
| UPC | 785901683186 |
| GTIN | 00785901683186 |
| Width | 2.12 |
| Width UOM | Inch |
| Height | 6.4 |
| Height UOM | Inch |
| Depth | 4.36 IN |
