Legrand-Pass & Seymour

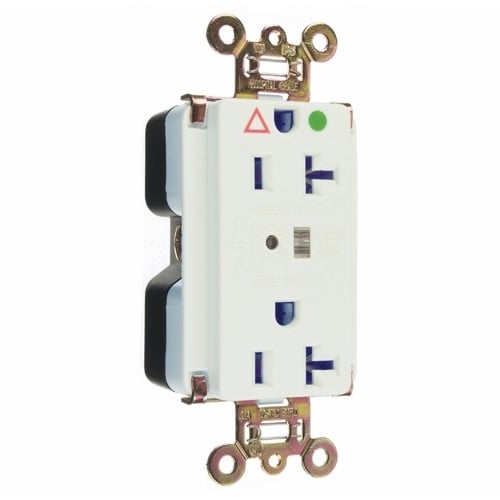

IG8300WSP Isolated Ground Surge Protective Duplex Receptacle, White

MFR:
Legrand-Pass & Seymour
MFR #:
IG8300WSP
UPC:
785007190830
Item #:
304172

Availability

Location Available Qty
Available Available to Order
$154.28

Isolated Ground Surge Protective Duplex Receptacle offers increased transient protection, reliability and protection notification (Audible Alarm with LED Indicator). Back and Side Wire, 20amp 125volt, Ivory.

Catalog Number IG8300WSP
Manufacturer Legrand-Pass & Seymour
Brand Legrand-Pass & Seymour
Country of Origin Mexico
Made in USA No
Amperage Rating 20
Application Commercial
Connection Back and side wire
Material Nylon
Mounting Wall
Special Features IG symbol and Isolated Ground markings for easy identification and circuit delineation. Plastic barrier isolates grounding terminal from mounting strap and metal boxes. Solid-state LED monitor has 25-year minimum life expectancy. A high visibility, wide-angle lens indicates protection is in place. LED Indication: steady green = protected, flashing red = not protected, OFF = no power to unit. Audible alarm alert of MOV damage. Alarm able to be turned On/Off. Wrap-around steel strap for structural integrity. Auto-ground is standard, for easier installation. Impact-resistant nylon exterior resists impacts and scrapes. Triple-wipe, copper-alloy contacts for superior, more dependable connection. External screw-pressure-plate back and side wire terminals including ground with external back wire clamps (exclusive) accept #14 - #10 AWG copper or copper-clad, solid or stranded conductors. External pressure plate feature allows two conductors to be terminated by a single screw. Thermal protection in 3 modes. 3 17mm dual pack MOVs absorb up to 340 Joules of excess energy in each leg (L-N, L-G, N-G) with 24,000 amp current handling capability for full, equal and symmetrical protection. Protection response time in less than one nanosecond.
Standard cUL UL1449, UL498; CSA C22.2 No. 42; ANSI/EEE C62.41 (Formerly IEEE 587), ANSI/IEEE C62.45 Installation Categories “A” (Ring Wave) “B” (Unidirectional Impulse).
UPC 785007190830
GTIN 00785007190830
Item Type Isolated Ground Hospital Grade Surge Protective Receptacle, Audible Alarm with LED Indicator
Size 1.70 L x 1.25 W x 3.75 H
Environmental Conditions Flammability: UL94 V2
Voltage Rating 125
