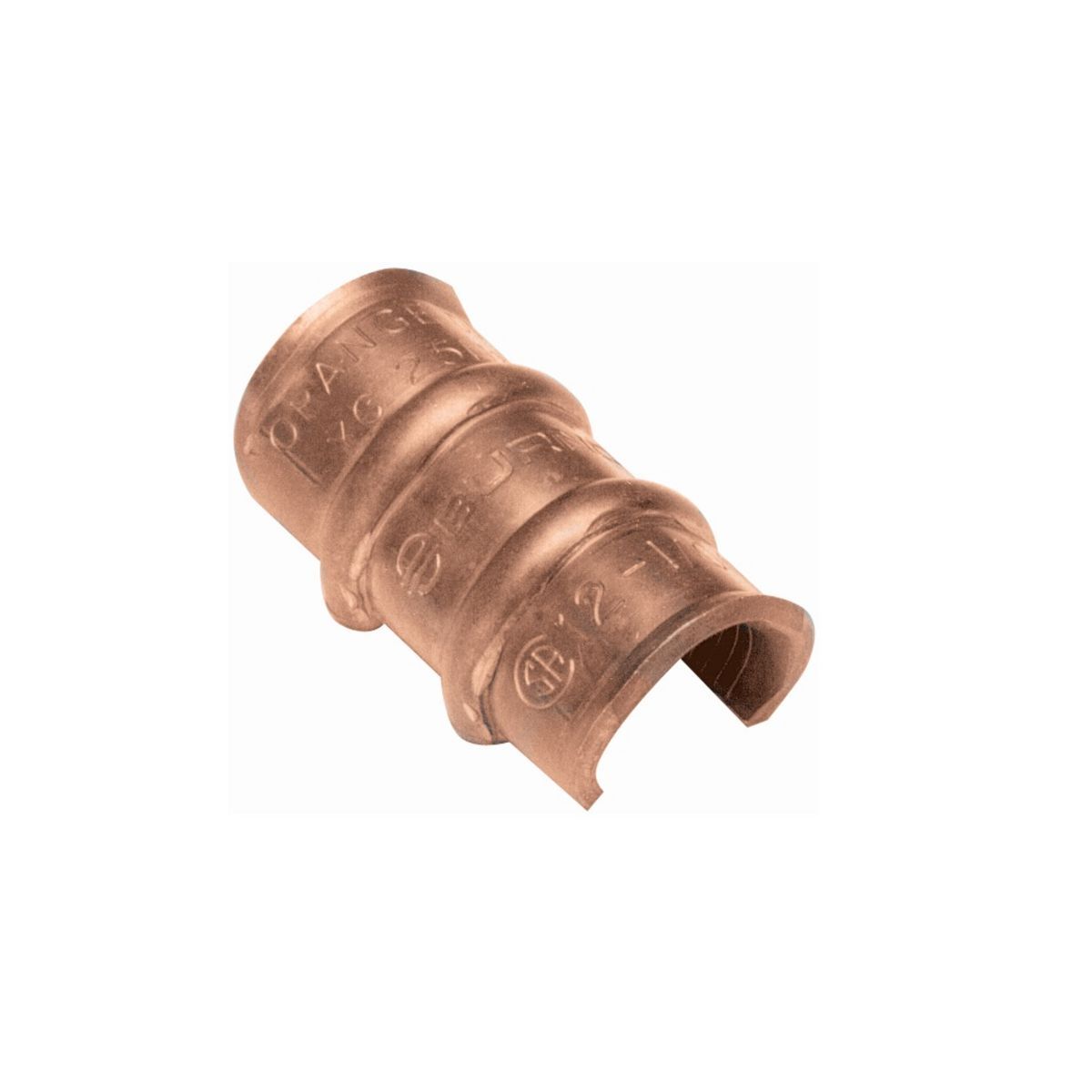

YC8L12 Type YC-L Thinwall Compression C-Tap Connector, Figure C Shape, 10 AWG Main/Run, 12 to 10 AWG Tap, Copper
- MFR:
- Burndy, a Hubbell affiliate
- MFR #:
- YC8L12
- UPC:
- 781810040119
- Item #:
- 304019
YC8L12 Type YC-L Thinwall Compression C-Tap Connector, Figure C Shape, 10 AWG Main/Run, 12 to 10 AWG Tap, Copper
- MFR #:
- YC8L12
- UPC:
- 781810040119
- Item #:
- 304019
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$9.29
each
Manuals and Documentation
| Catalog Number | YC8L12 |
| Manufacturer | Burndy, a Hubbell affiliate |
| Brand | BURNDY |
| Country of Origin | United States |
| Made in USA | Yes |
| Application | Wire Tap |
| Finish | Tin-Plated |
| Material | COPPER |
| Special Features | Features: Manufactured Form High Conductivity Wrought Copper: Provides Low Resistance And Excellent Electrical Conductivity, Range-Taking Connector: Lowers Inventory Requirements, Reinforced Ribs: Provides Maximum Pull-Out Values, Compact Size: Easy To Tape And Insulate Connection, Economical: Provides Low Installed Cost, Use PUADP-1 Adapter With U Dies In Y46 HYPRESS, Color Code: Blue, Die Index: 7 Element A, Shape: C, Tools, Die Set Catalog Number, And (number Of Crimps): Mechanical: MD6, OUR840, MD7-34R, Y2MR Tool, W5CVT Die, (1), Wire Strip Length: 5/8 IN |
| Standard | UL 486A-486B |
| UPC | 781810040119 |
| GTIN | 00781810040119 |
| Item Type | YC-L Series |
| Temperature Rating | 194 |
