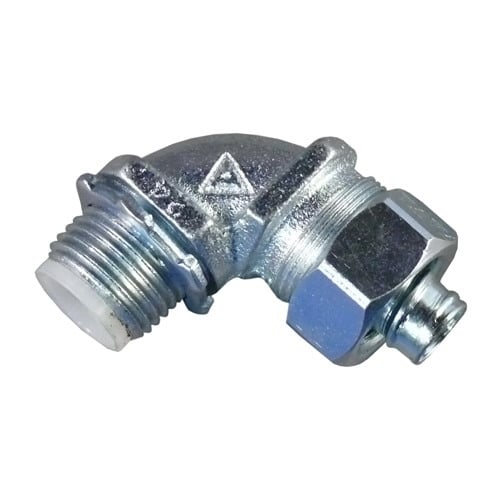

Insulated Throat 90 Degree Liquidtight Connector; 3/4 Inch, Malleable Iron Body, Steel Cap, Polypropylene Sealing Ring, Zinc Electroplate, Chromate and Epoxy Powder Coat
MFR: Appleton Electric
MFR #: STB-9075
UPC: 781381681650
Item #: 303515
Insulated Throat 90 Degree Liquidtight Connector; 3/4 Inch, Malleable Iron Body, Steel Cap, Polypropylene Sealing Ring, Zinc Electroplate, Chromate and Epoxy Powder Coat
MFR #: STB-9075
UPC: 781381681650
Item #: 303515
Availability
| Location | Available Qty |
|---|---|
| Available | 5 |
$45.08
each
STB Series 90 DEG Liquidtight Connector With Insulated Throat, Size: 3/4 IN, Connection: Threaded X Compression, Material: Malleable Iron, Finish: Chromate, Epoxy Powder Coat/Zinc Electroplated, Thread Length: 0.63 IN, Standard: Class I,
Manuals and Documentation
- Catalog Number
- STB-9075
- Manufacturer
- Appleton Electric
- Brand
- Appleton
- Country of Origin
- Mexico
- Made in USA
- No
- Application
- For Liquidtight Flexible Metal Conduit
- Connection
- Threaded X Compression
- Finish
- Chromate, Epoxy Powder Coat/Zinc Electroplated
- Material
- Malleable Iron
- Special Features
- Seals out oil, water, dust, dirt and fumes; High corrosion resistance; Unique long ferrule with more pronounced threads provides over four times UL pull-out requirements; Ferrule provides maximum surface contact for better sealing and a continuous, permanent, positive metal-to-metal ground; Polypropylene sealing ring with locknut standard; Suitable for wet locations; Compact design with small turning radius
- Standard
- Class I, Division 2; UL 514B, E14814, CSA C22.2 No. 18.3, 065178, NEMA FB-1
- UPC
- 781381681650
- GTIN
- 00781381681650
- Item Type
- STB Series 90 DEG Liquidtight Connector With Insulated Throat
- Size
- 3/4
