Telemecanique

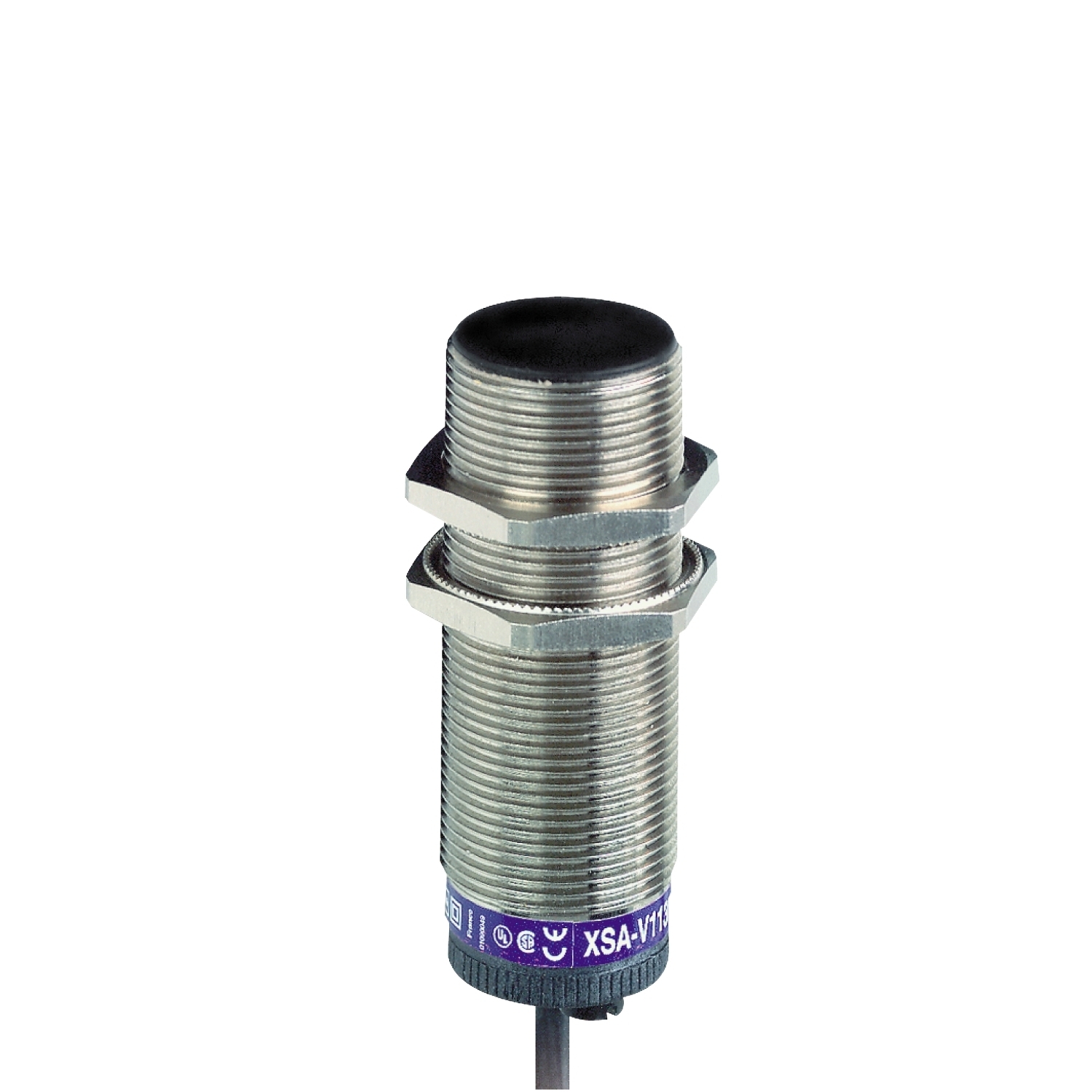

XSAV11801L05 OsiSense XSA Series Cylindrical Fixed Form Proximity Sensor, Inductive, Discrete Output, 1NC Contact, 24 to 240 V AC/24 to 210 V DC

MFR:
Telemecanique Sensors
MFR #:
XSAV11801L05
UPC:
785901401384
Item #:
303502

Availability

Location Available Qty
Available Available to Order
$332.06 each

This sensor provides an economical solution for detecting slip, belt breakage, drive shaft shear and overloading. Dedicated to rotation monitoring, it is suitable for conveyor belts, bucket elevators and Archemedian screws. And also for grinders, crushers, pumps, centrifugal driers, mixers, etc. This product is a cylindrical, flush mountable metal sensor, diameter 30mm, threaded M30 x 1.5. It features a cylindrical metal case and a 5m long cable. It has a sensing distance of 10mm. Its adjustable frequency range is 6 impluses/min to 150 impluses/min. Two-wire, AC/DC (24V to 240VAC or 24V to 210VDC), 1 NC discrete output.

Manuals and Documentation
Catalog Number XSAV11801L05
Manufacturer Telemecanique Sensors
Brand Telemecanique
Warranty Description Contractual Warranty:18 months
Country of Origin Morocco
Made in USA No
Application Rotation monitoring
Connector Cable
Enclosure Nickel Plated Brass
Indicator Output state 1 LED red)
Material Metal
Mounting Flush
Sensing Range > 0.31...0.59 in (> 8...15 mm)
Special Features IP67 CONFORMING TO IEC 60529,CABLE
Standard IP67 conforming to IEC 60529;CE
Supply Voltage 24...210 V DC;24...240 V AC 50/60 Hz
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=871108&lang=en-us
UPC 785901401384
GTIN 03389110815801
Item Type Inductive proximity sensor;Cylindrical M30
Operating Temperature -25-70 A Degrees C
