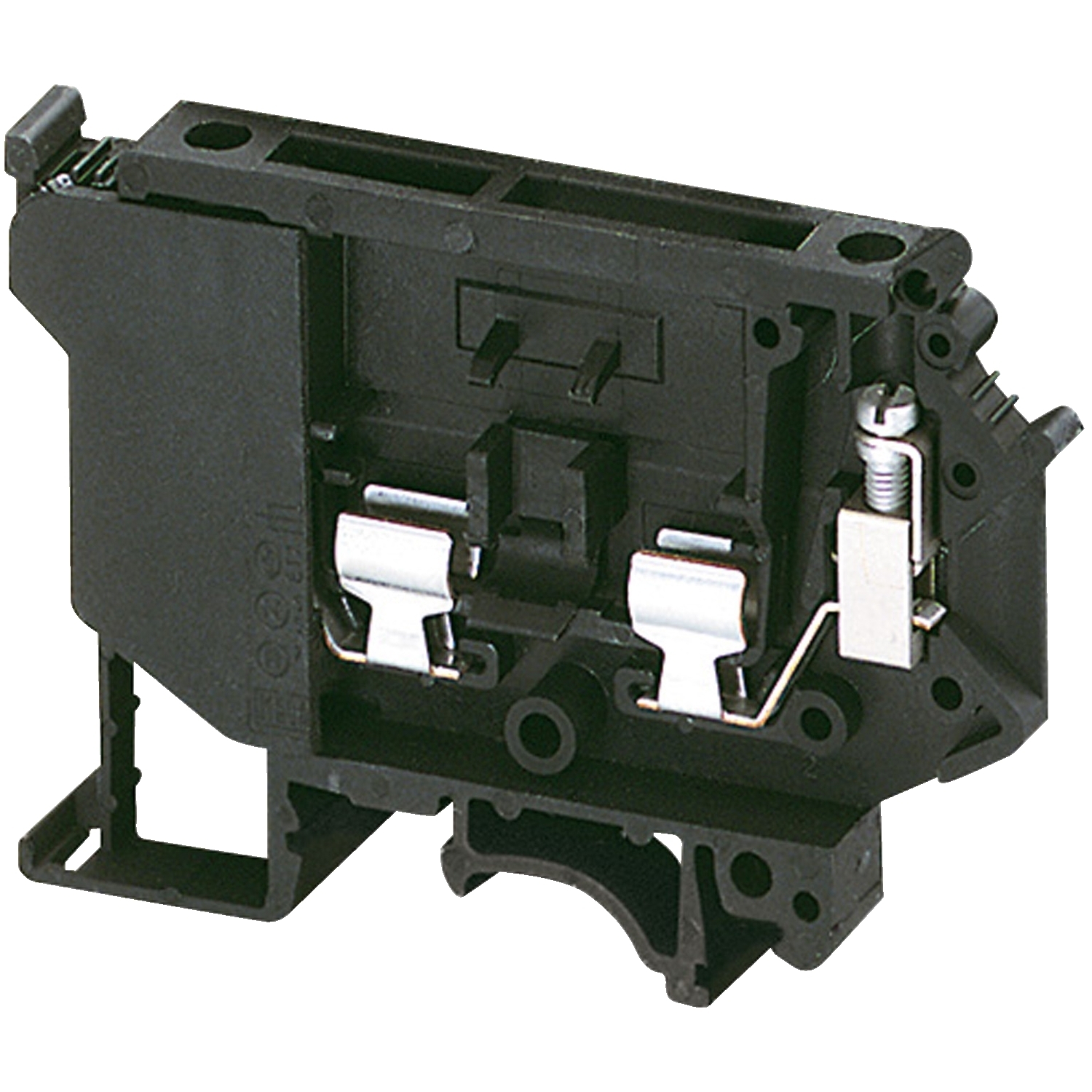

NSYTRV42SF5LD Linergy TRV Fused Terminal Block With Light Indicator, 500/600 V AC, 6.3 A, 0.2 to 4 sq-mm Wire, Clip-Fit Mount
- MFR:
- Schneider Electric
- MFR #:
- NSYTRV42SF5LD
- Item #:
- 303065
NSYTRV42SF5LD Linergy TRV Fused Terminal Block With Light Indicator, 500/600 V AC, 6.3 A, 0.2 to 4 sq-mm Wire, Clip-Fit Mount
- MFR #:
- NSYTRV42SF5LD
- Item #:
- 303065
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
Linergy TR is terminal block for Linergy. It belongs to fuse disc terminal with 4 mm nominal cross section. The rated operational voltage is 600V conforming to CSA/cURus and 500V conforming to EN/IEC 60947-7-1. The rated current is 6.3A conforming to EN/IEC 60947-7-1, 6.3A conforming to CSA and 12A cURus. It has black surface treatment. Mounting by clip-on and sideways connection with 5x20mm fuse. It could be connection and disconnection by screwdriver. It is compatible with spacial enclosures for Prisma G, Prisma P, Pragma, Prisma PH, Prisma Pack, Spacial, Kaedra, TeSys. Sold in lots of 50 units. Ambient air temperature for operation is from -40 to 130 C conforming to IEC 60216-1 and VDE 0304-T21. Multi standards certified (CSA, cURus, EAC).
Manuals and Documentation
| Catalog Number | NSYTRV42SF5LD |
| Manufacturer | Schneider Electric |
| Brand | SCHNEIDER ELECTRIC |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Turkey |
| Made in USA | No |
| Application | 5 x 20 mm |
| Color | Black |
| Connection | 1 x screw terminal upstream;1 x screw terminal downstream |
| Material | Polyamide 6/6: insulating case |
| Mounting | Clip |
| Standard | V0 0.8 mm UL 94 |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=403761568&lang=en-us |
| GTIN | 03606480532344 |
| Item Type | Fused disconnect;Terminal block;Spacial enclosures |
