Schneider Electric

XACD22A0101 Harmony Corrosion-Resistant Double Insulated Dusttight/Watertight Medium Duty Pendant Control Station, 600 V AC, 10 A, 2NO-1NC Contact, 1 Operators, NEMA 4/4X/5/IP65 NEMA Rating

MFR:
Schneider Electric
MFR #:
XACD22A0101
Item #:
301174

Availability

Location Available Qty
Available Available to Order
$152.50 each

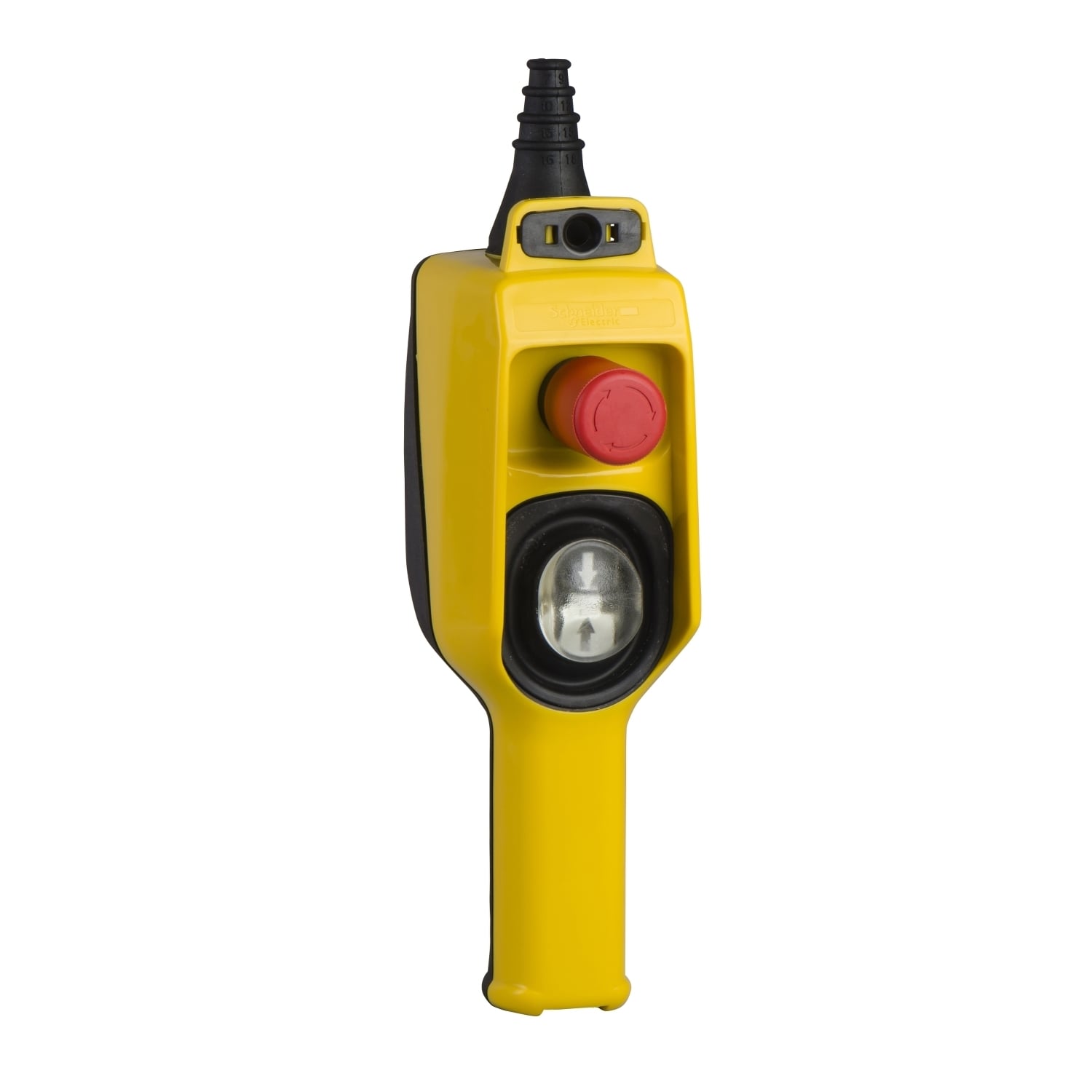

This Harmony XACD22A0101 is a pendant station 1 rocker lever Emergency stop. This yellow control station is double insulated. It is part of the range Harmony XAC pendant control stations for diameter 22mm plastic signaling units.

Manuals and Documentation
Catalog Number XACD22A0101
Manufacturer Schneider Electric
Brand Schneider Electric
Warranty Description Contractual Warranty:18 months
Country of Origin France
Made in USA No
Application Control of single speed hoist motor;ZB2BE101 for each direction;ZB2BE102 for emergency stop;Control circuit
Cable Entry Rubber sleeve with stepped entry 7-18 mm
Connection Screw clamp terminals, 1 x 2.5 mm² with or without cable end;screw clamp terminals, 2 x 1.5 mm² with or without cable end
Contact Rating Slow-break
Enclosure Polypropylene
Special Features Complete ready for use;With mechanical interlocking
Standard IK08 conforming to EN 50102;CSA C22.2 No 14;UL 508;EN/IEC 60204-32;EN/IEC 60947-5-1;70 gn IEC 60068-2-27;15 gn 10-500 Hz)IEC 60068-2-6;IP65 conforming to IEC 60529
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=673384&lang=en-us
GTIN 03389110655926
Item Type Pendant control station;Double insulated;Intuitive;Reversing
