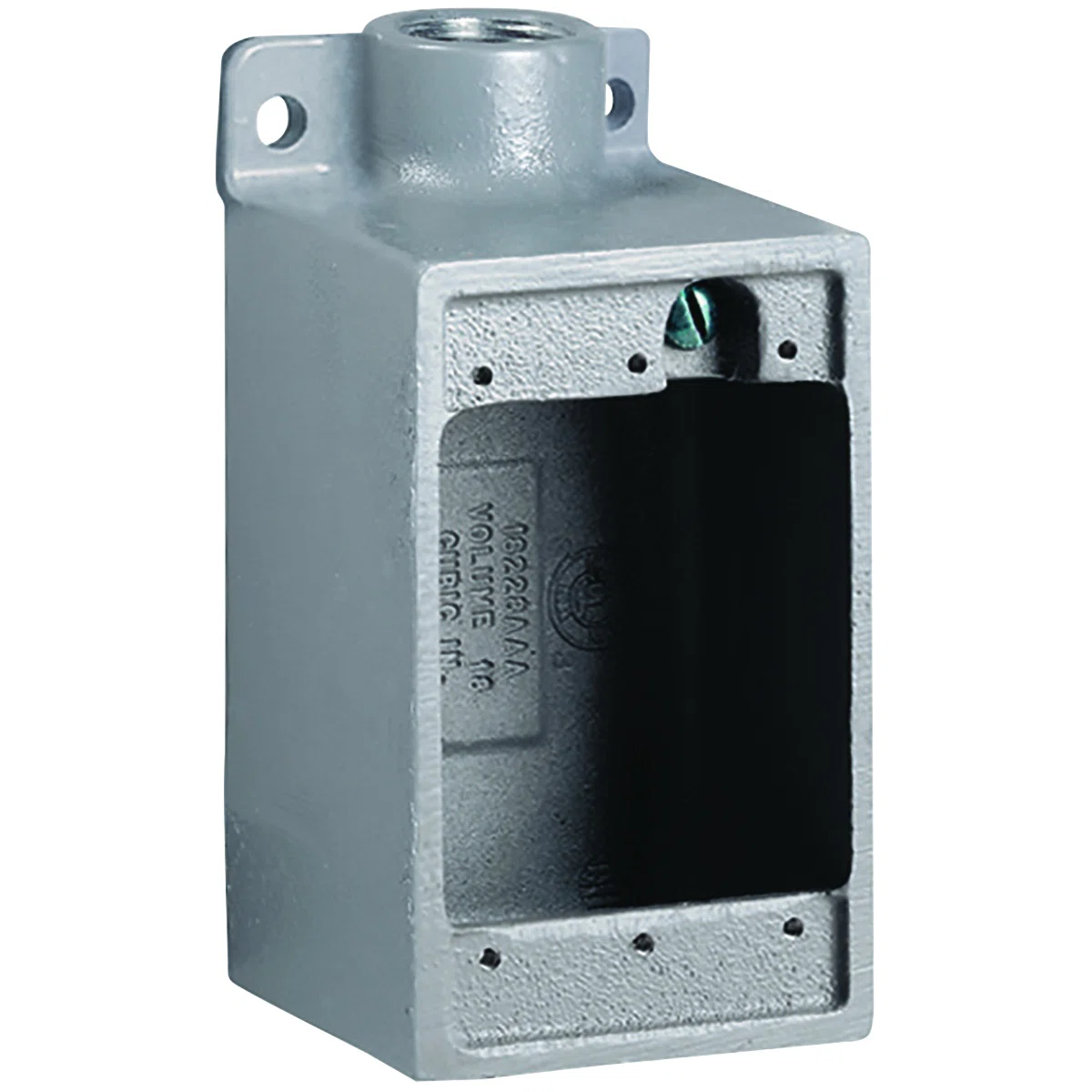

FD-2 FD Series Dead End Cast Device Box, Copper Free Aluminum, 28 cu-in Capacity, 1 Gang, 1 Outlet, 5-1/2 in H x 2-7/8 in W x 2-7/8 in D
- MFR:
- Hubbell
- MFR #:
- FD-2
- UPC:
- 783936150024
- Item #:
- 30100
FD-2 FD Series Dead End Cast Device Box, Copper Free Aluminum, 28 cu-in Capacity, 1 Gang, 1 Outlet, 5-1/2 in H x 2-7/8 in W x 2-7/8 in D
- MFR #:
- FD-2
- UPC:
- 783936150024
- Item #:
- 30100
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$168.87
each
F series device boxes accommodate wiring devices and provides opening to splice, tap or pull conductors. It provides access to conductors for maintenance and future system changes. Suitable for use in wet locations when used with gasket covers. All devices are offered in our copper-free aluminum with electro-statically applied powder coating. Some devices are configured for our tri-coat protected iron.
Manuals and Documentation
Features
- Tapered threads (NPT with integral bushings)
- Internal grounding screw
- Mounting feet are provided as standard
- Suitable for use in wet locations when used with gasket covers
| Manufacturer Part Number | FD-2 |
| Stripped Manufacturer Part Number | FD2 |
| Brand | Killark® |
| Manufacturer | Hubbell |
| UPC | 783936150024 |
| EAN | 0783936150024 |
| Country Of Origin | US |
| Capacity | 28 cu-in |
| Color | Gray |
| Dimensions | 5-1/2 in H x 2-7/8 in W x 2-7/8 in D |
| Enclosure Type | NEMA FB-1 |
| Finish | Powder Coated |
| Material | Copper Free Aluminum |
| Mounting Type | Lug |
| Series | FD Series |
| Type | Dead End |
| Number Of Outlets | 1 |
| Alternative Part Number | 11832890 | 8440099 |
| Manufacturer Item Status | Active |
| Country | USA/Canada |
| Standards Approvals | CSA C22.2 No. 18 File No. LR11852 | Federal Specification No. W-C-586D | UL 514A File No. E3397 | PROP65: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov | NEMA FB-1 |
| Application | For providing access to conductors for maintenance and future system changes |
| Hub Size | 3/4 in |
| Hub Style | Tapered Threaded |
| Number Of Gangs | 1 |
