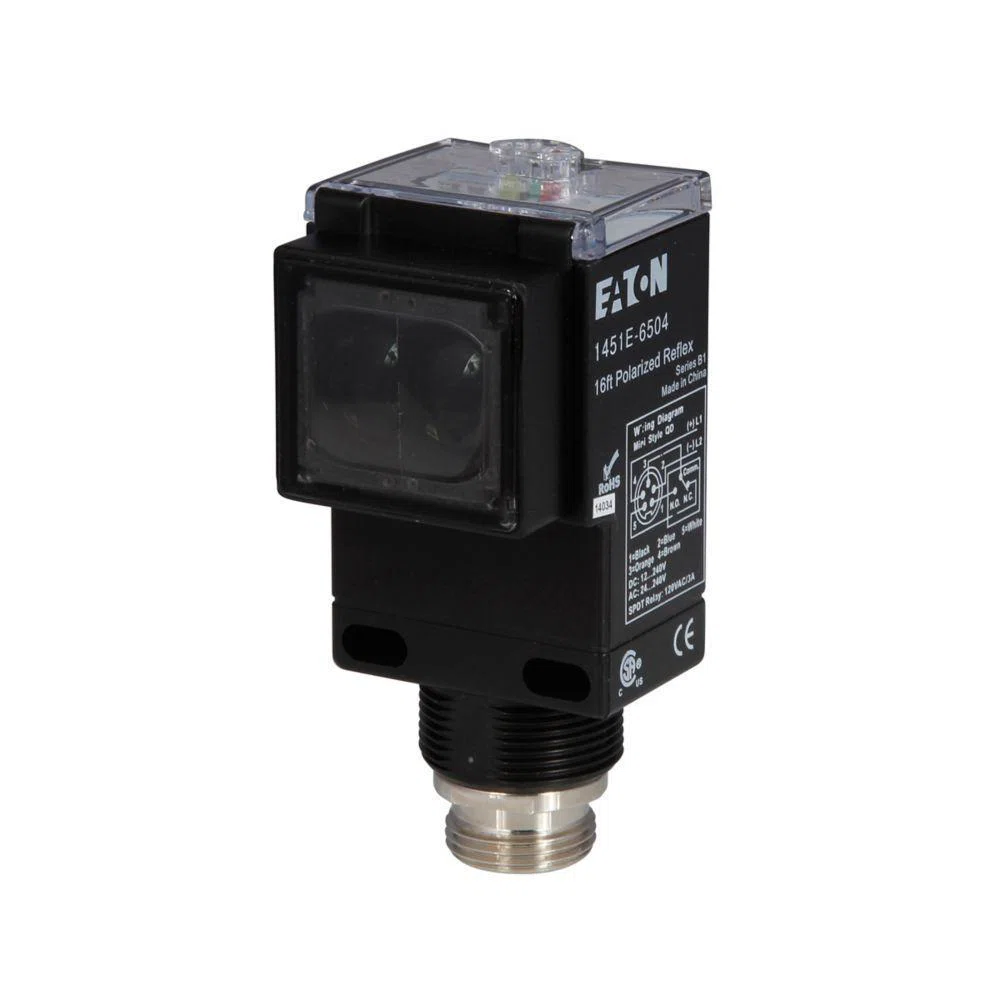

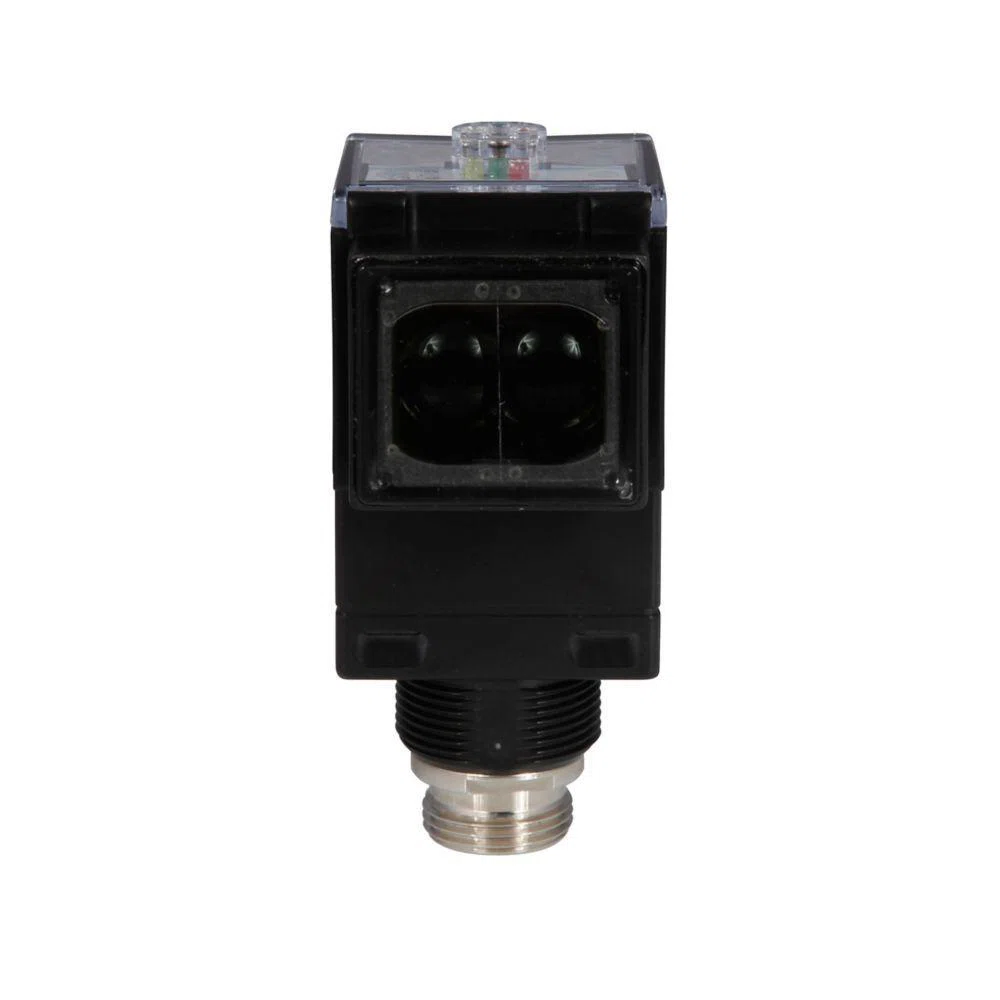

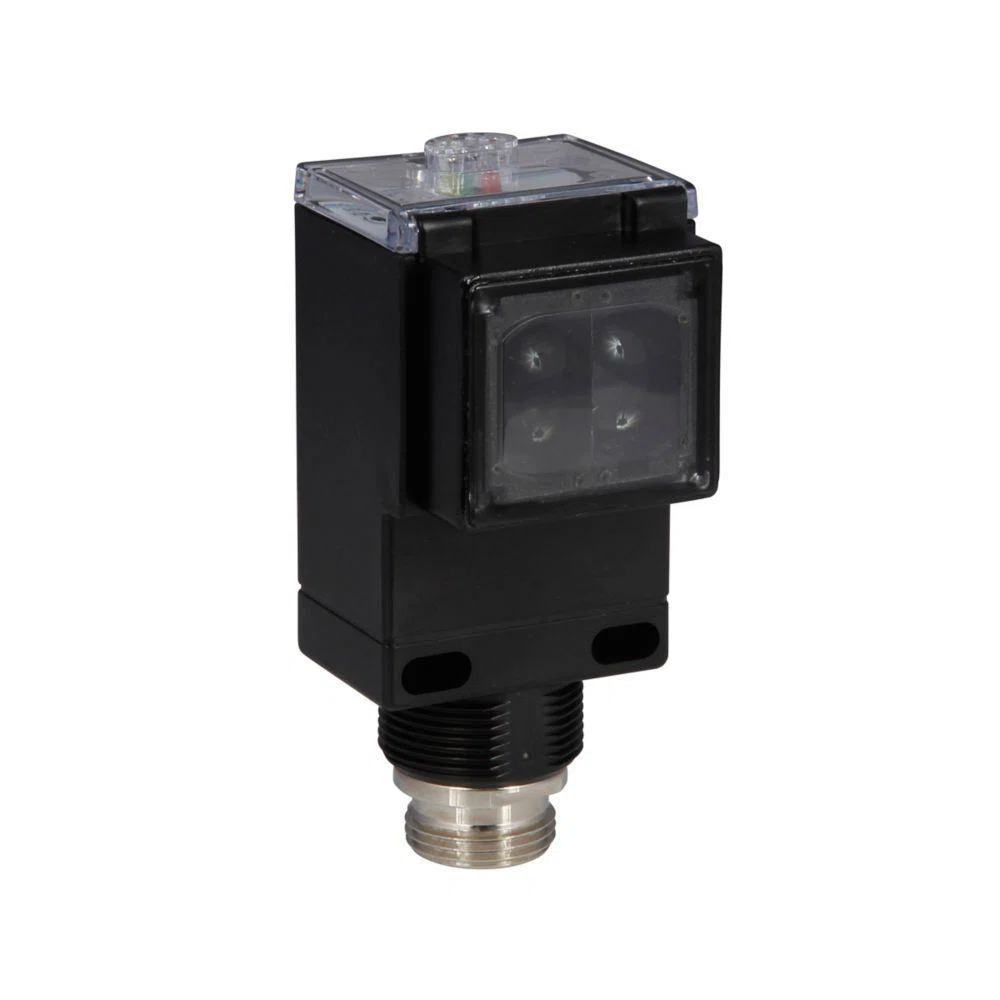

1451E-6504 Enhanced 50 Forward Viewing Photoelectric Sensor, Rectangle Shape, 16 ft, Visible Red Sensing Beam, 15 ms Response, SPDT Relay Output
- MFR:
- Eaton
- MFR #:
- 1451E-6504
- UPC:
- 782116111336
- Item #:
- 30041
1451E-6504 Enhanced 50 Forward Viewing Photoelectric Sensor, Rectangle Shape, 16 ft, Visible Red Sensing Beam, 15 ms Response, SPDT Relay Output
- MFR #:
- 1451E-6504
- UPC:
- 782116111336
- Item #:
- 30041
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$614.05
each
Enhanced 50 series high-performance sensors offer flexibility, durability and high optical performance with a fully potted construction that makes these sensors ideal for use in areas subject to washdown, high shock and high vibration. Three output types, four time-delay functions, six sensing modes and four connection styles allow you to tailor the sensor to meet your exact needs
Manuals and Documentation
Features
- All units offer light/dark selection
- Fiberglass reinforced plastic case and acrylic lens
- Fully potted construction for use in areas subject to wash-down, high shock and/or vibration
- Choice of pre-wired power cable, built-in mini-connector, built-in micro-connector and pigtail micro-connector versions, standard pre-wired cable length is 6 ft
- High optical performance models including a 500 ft thru-beam and a 10 ft diffuse reflective unit
| Manufacturer Part Number | 1451E-6504 |
| Brand | EATON |
| Manufacturer | Eaton |
| UPC | 782116111336 |
| Country Of Origin | CN |
| Amperage Rating | 3 A |
| Enclosure Type | NEMA IP67/IP69K |
| Series | Enhanced 50 |
| Shape | Rectangle |
| Type | Forward Viewing |
| Voltage Rating | 24 to 240 V AC/12 to 240 V DC |
| Size | 4.01 in L x 1.91 in W x 1.81 in H |
| Alternative Part Number | 7438784 |
| Manufacturer Item Status | Active |
| Country | USA |
| Warranty | 3 years |
| Standards Approvals | CSA Certified,CE Marked |
| Application | Electrical Assemblies, Panels and EOEMs Applications |
| Connection Type | 5-Pin Mini |
| Environmental Conditions | 95% Non-Condensing Relative Humidity |
| Frequency Rating | 60 Hz |
| Light Source | LED |
| Operating Temperature | -13 to 131 deg F |
| Output Type | SPDT Relay |
| Response Time | 15 ms |
| Sensing Beam | Visible Red |
| Sensing Method | Polarized Retroreflective |
| Sensing Range | 16 ft |
