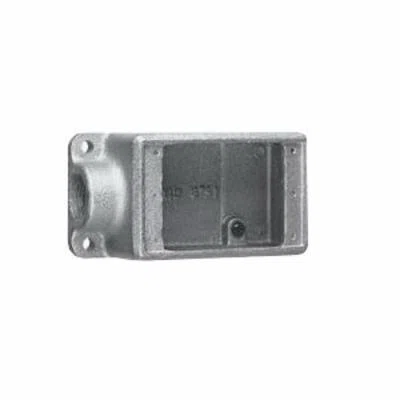

FD1-SA Cast Device Box, Aluminum, 23 cu-in, 1 Gang, 1 Outlet, 4-9/32 in H x 2-3/4 in W x 2-11/16 in D
- MFR:
- Eaton
- MFR #:
- FD1-SA
- UPC:
- 782274099989
- Item #:
- 299700
FD1-SA Cast Device Box, Aluminum, 23 cu-in, 1 Gang, 1 Outlet, 4-9/32 in H x 2-3/4 in W x 2-11/16 in D
- MFR #:
- FD1-SA
- UPC:
- 782274099989
- Item #:
- 299700
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
Crouse-Hinds series FS and FD device boxes are installed in non-hazardous area conduit systems to accommodate wiring devices, act as pull boxes or provide openings for taps and splices. They are suitable for use in wet locations when used with gasketed covers. FS and FD device boxes are available in two box depths with a wide variety of gang configurations, hub configurations and hub sizes. They are manufactured in cast iron, aluminum, stainless steel and malleable iron. Malleable iron boxes are also available with a hot dip galvanized finish for added corrosion protection against road salt and other harsh environmental factors.
Manuals and Documentation
Features
- Internal green ground screw standard on boxes
- Suitable for wet locations when used with gasketed covers
- Mounting lugs standard on most boxes
- Tapered threaded hubs (NPT) with integral bushing
- Ample wiring room provided in either FS/FD configuration
- Covers for flush mounting extend to conceal the rough plaster line
| Manufacturer Part Number | FD1-SA |
| Stripped Manufacturer Part Number | FD1SA |
| Brand | Cutler-Hammer |
| Manufacturer | Eaton |
| UPC | 782274099989 |
| Country Of Origin | MX |
| Capacity | 23 cu-in |
| Dimensions | 4-9/32 in H x 2-3/4 in W x 2-11/16 in D |
| Finish | Natural |
| Material | Aluminum |
| Mounting Type | Flush |
| Series | FD Series |
| Type | Type FD Deep |
| Number Of Outlets | 1 |
| Manufacturer Item Status | Active |
| Country | USA |
| Standards Approvals | UL 514 | ANSI C33.84 | CSA C22.2 No. 18 |
| Application | For Providing openings to make splices and taps in conductors, Act as pull boxes for conductors in a conduit system and Accommodate wiring devices |
| Cable Entry Size | (1) End |
| Hub Size | 1/2 in |
| Number Of Gangs | 1 |
