Telemecanique

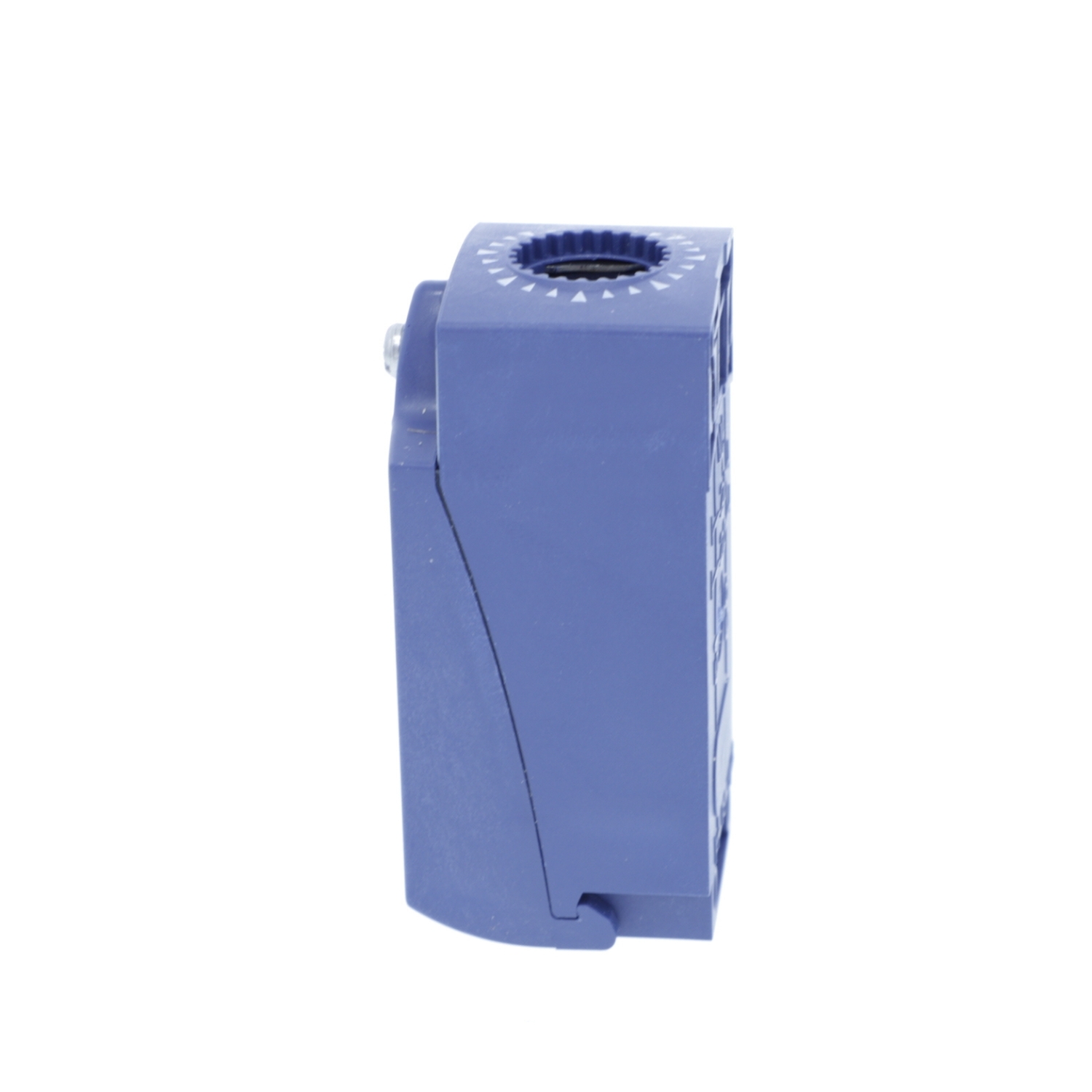

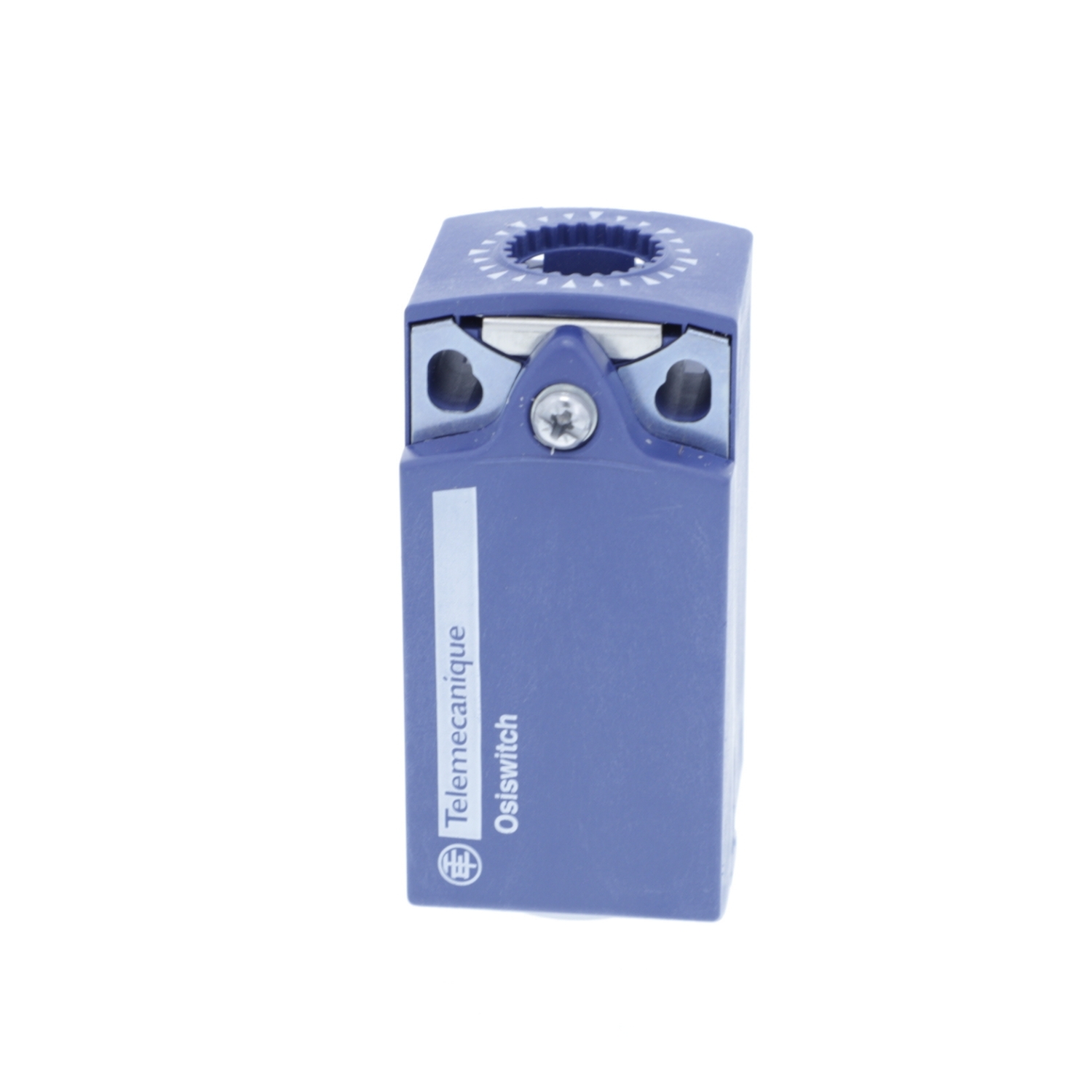

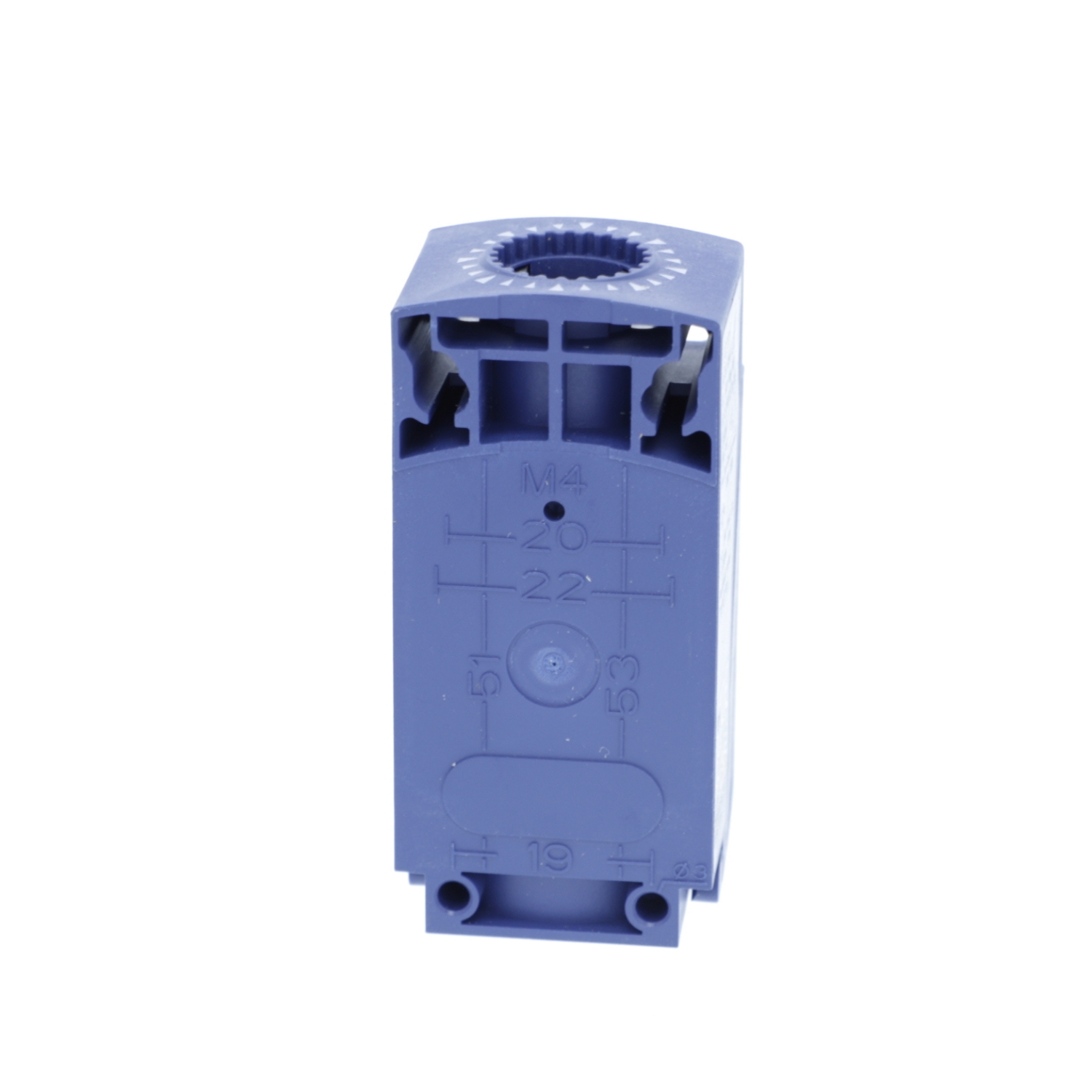

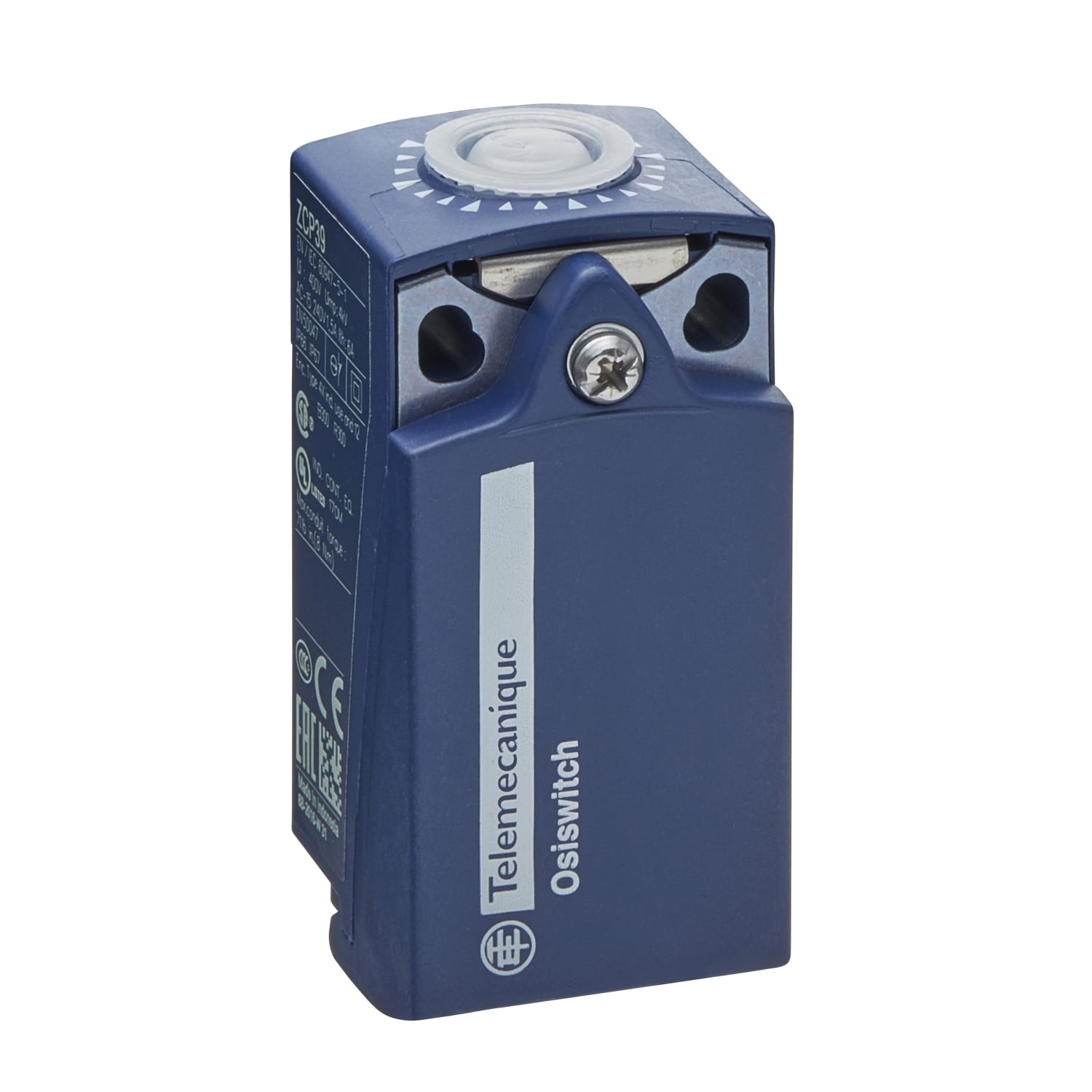

ZCP39 OsiSense 3-Pole Fixed Limit Switch Body With XCKP Standard Compact Limit Switch, 1NO-2NC Contact, For Use With XCKP Standard Compact Limit Switch, 0.75 A at 240 V AC, 0.1 A at 250 V DC Contact

MFR:
Telemecanique Sensors
MFR #:
ZCP39
UPC:
785901420859
Item #:
296459

Availability

Location Available Qty
Available Available to Order
$73.96 each

This ZCP body/contact assembly has standard contacts and a plastic body. It has 1 x NO + 2 x NC snap action contacts. It can be matched with any head, actuator or connector from the XCKD, XCKP and XCKT ranges.

Manuals and Documentation
Catalog Number ZCP39
Manufacturer Telemecanique Sensors
Brand Telemecanique
Warranty Description Contractual Warranty:18 months
Country of Origin Unknown
Made in USA No
Action Snap action
Amperage Rating 10
Application XCKP
Connection Screw-clamp terminals 1 x 0.34...2 x 0.75 mm²
Contact Configuration 2 NC + 1 NO
Number of Poles 3
Operating Cycles 5000000 CYCLES, DC-13 120 V, 1 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13 24 V, 3 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13 48 V, 2 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C
Special Features FIXED
Standard IEC, UL LISTED, CSA
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=880414&lang=en-us
UPC 785901420859
GTIN 03389110180497
Item Type Limit switch body
Size 1.18
Operating Temperature -25-70 A Degrees C
