Square D

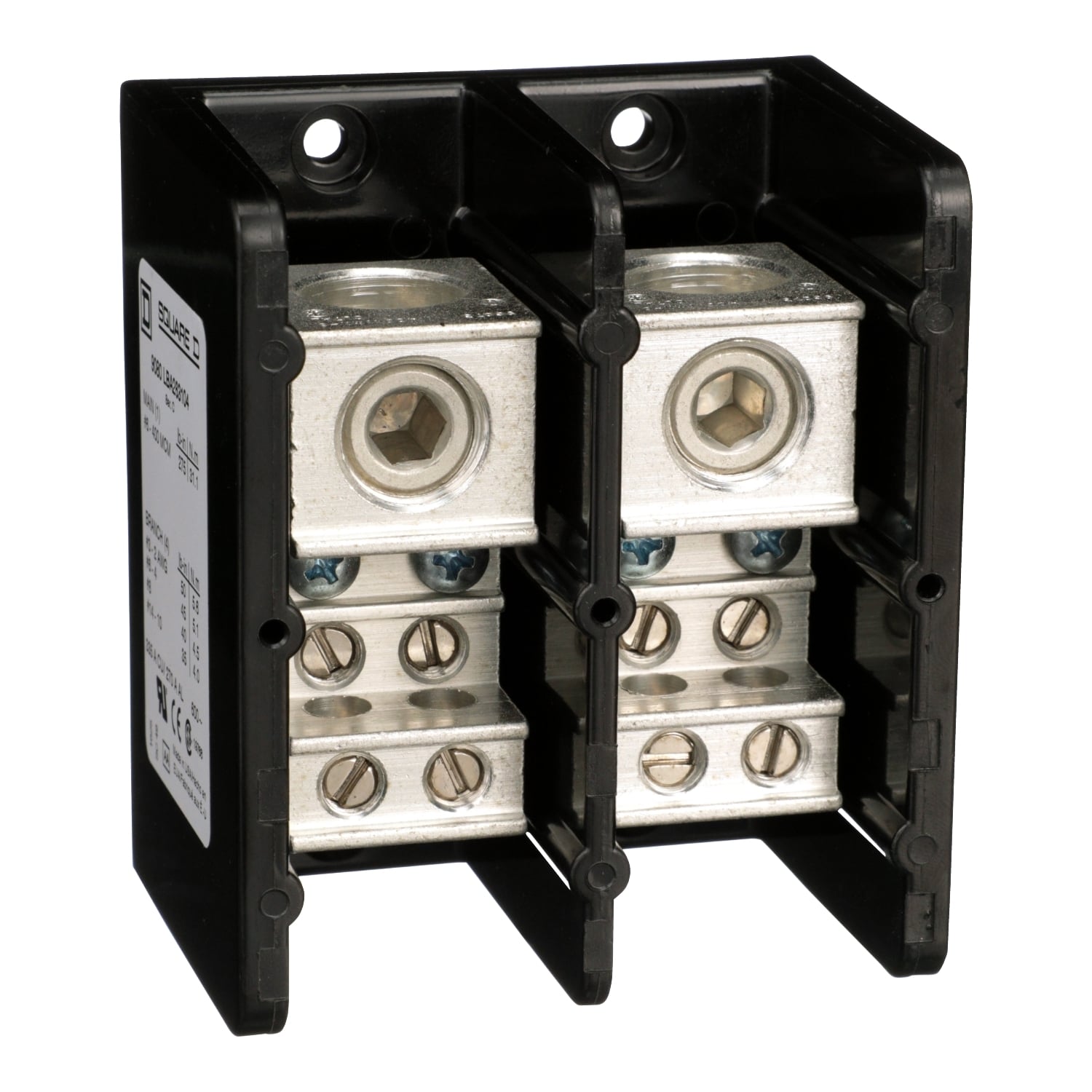

9080LBA263104 TeSys General Purpose Standard Multi-Pole Distribution Block, 600 V AC/DC, 335/270 A, 2 Poles, 6 AWG to 400 kcmil Al/Cu, 14 to 2 AWG Al/Cu Wire, Phenolic

MFR:
Schneider Electric
MFR #:
9080LBA263104
UPC:
785901156994
Item #:
295598

Availability

Location Available Qty
Available Available to Order
$202.93 each

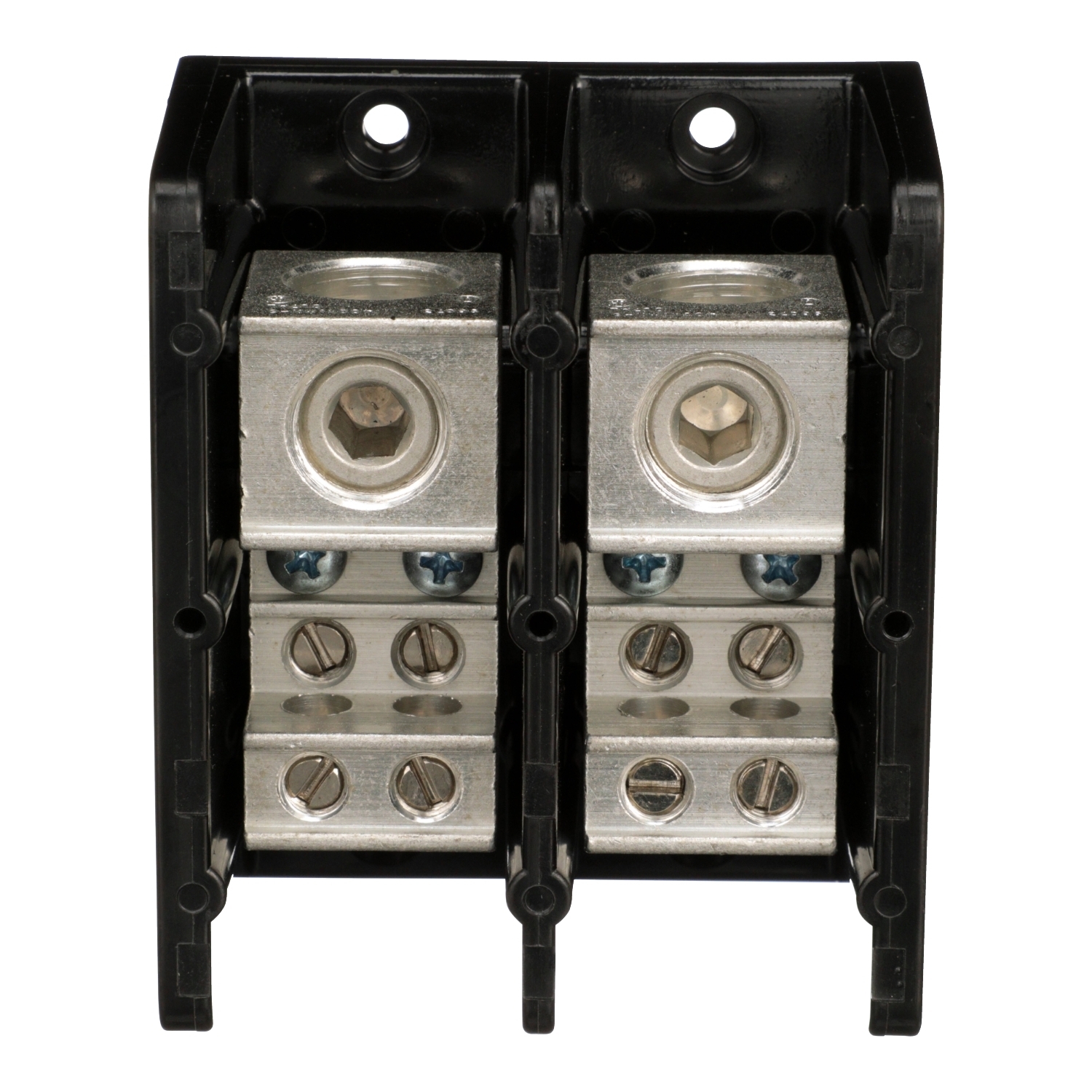

Linergy power distribution blocks are for terminating wires and are designed to NEMA standards. This two pole block has one lug opening on the line (main) side and four lug openings on the load (branch) side. The line side lug is rated to accept one #6 to 400 kcmil copper or aluminum wire. Each load side lug is rated to accept one #14 to #2 copper or aluminum wire. The lugs are made of aluminum. The lugs are rated for 335 amperes with copper wire and 270 amperes with aluminum wire. The lugs are rated to 600 volts. The housing is made of general purpose phenolic. These Linergy power distribution blocks are UL component recognized and CSA certified.

Manuals and Documentation
Catalog Number 9080LBA263104
Manufacturer Schneider Electric
Brand Square D
Warranty Description Contractual Warranty:18 months
Country of Origin United States
Made in USA Yes
Connection Tin plated aluminium lugs;Load lug 45 lbf.in AWG 6...AWG 4 copper or aluminium;load lug 40 lbf.in AWG 8 copper or aluminium;load lug 35 lbf.in AWG 14 copper;line lug 275 lbf.in AWG 6...350 kcmil copper or aluminium;load lug 50 lbf.in AWG 2 copper or aluminium;load lug 35 lbf.in AWG 12...AWG10 copper or aluminium
Material Phenolic: block
Mounting Surface
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=372959&lang=en-us
UPC 785901156994
GTIN 00785901156994
Item Type Power Distribution Block;9080LB32
Width 1.94
Width UOM Inch
Height 3.38
Height UOM Inch
Depth 2.61 IN
