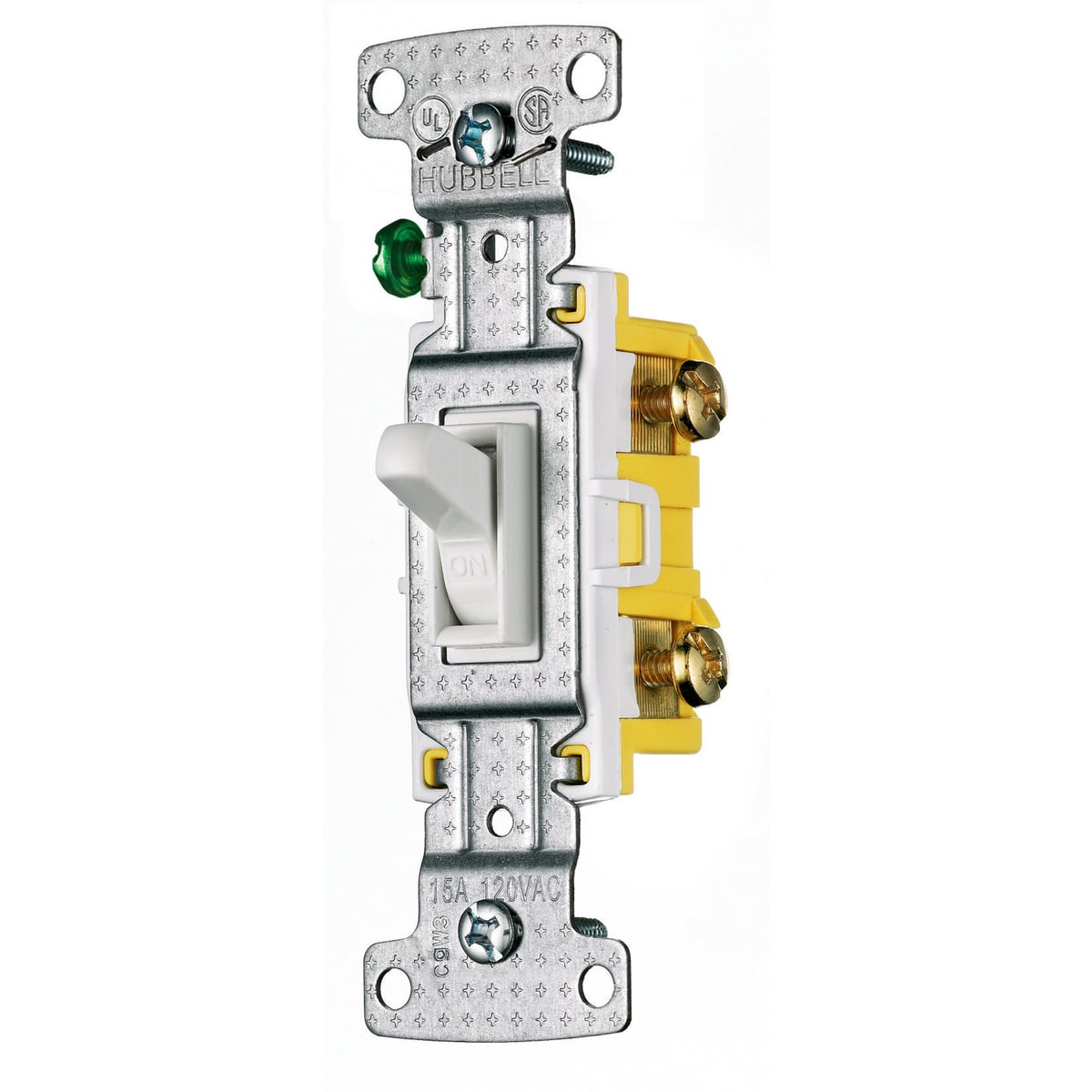

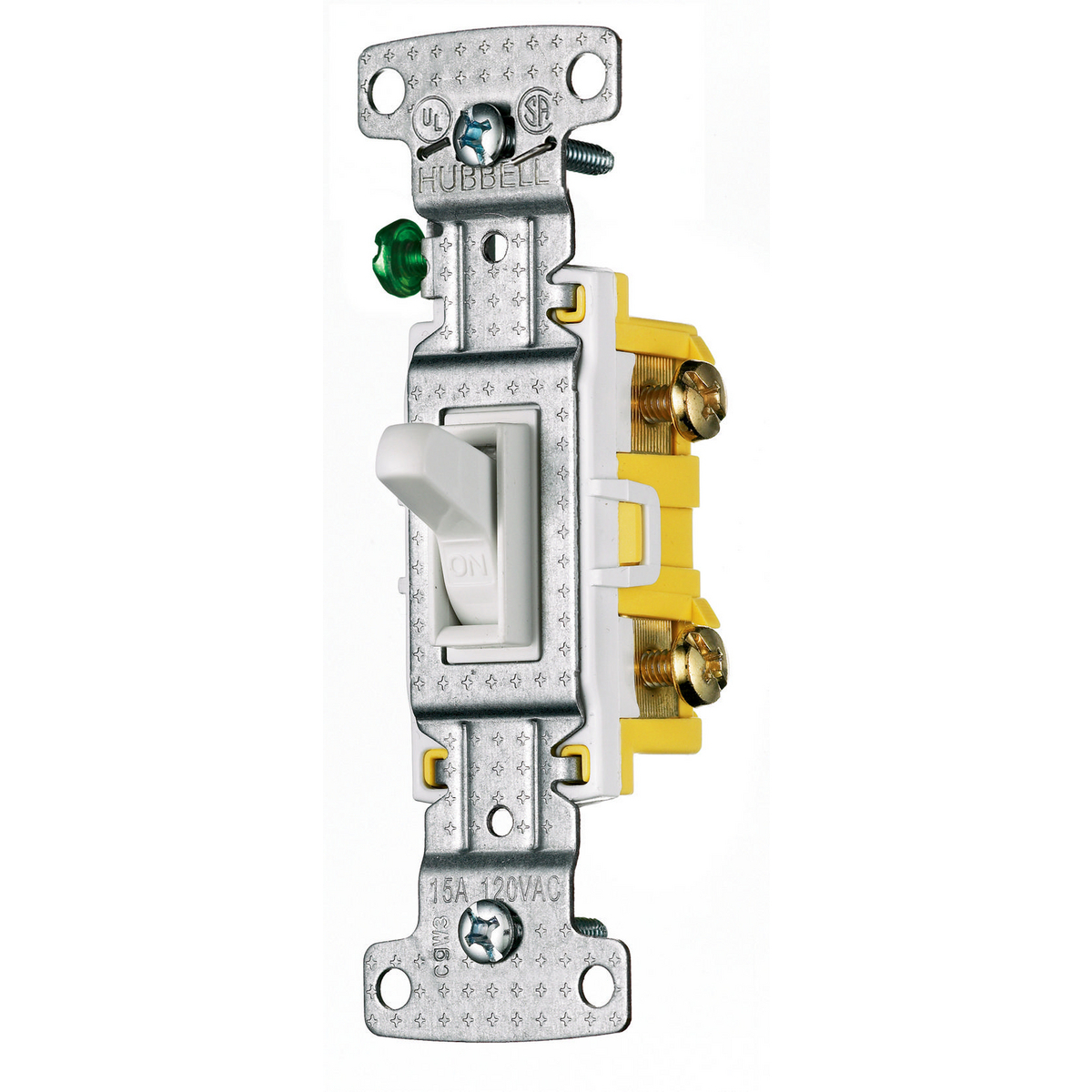

RS115SW 2-Position Compact Residential Grade Self-Grounding Standard Toggle Switch, 120 V, 15 A, 1800 W Power Rating, 2-Position Contact
- MFR:
- Hubbell Wiring Device-Kellems
- MFR #:
- RS115SW
- UPC:
- 883778101052
- Item #:
- 295101
RS115SW 2-Position Compact Residential Grade Self-Grounding Standard Toggle Switch, 120 V, 15 A, 1800 W Power Rating, 2-Position Contact
- MFR #:
- RS115SW
- UPC:
- 883778101052
- Item #:
- 295101
Manuals and Documentation
| Catalog Number | RS115SW |
| Manufacturer | Hubbell Wiring Device-Kellems |
| Brand | Hubbell Wiring Device - Kellems |
| Country of Origin | China |
| Made in USA | No |
| Action | Positive Snap |
| Actuator | Toggle |
| Amperage Rating | 15 |
| Application | Residential Toggle Switches |
| Color | White |
| Connection | Push and Side Wired |
| Contact Configuration | Two Position |
| Contact Rating | Per UL 20 |
| Mounting | Screw |
| Number of Poles | 1 |
| Operating Cycles | 10,000 Cycles |
| Special Features | Standard Product |
| Standard | CSA Certified;UL Listed E3896 |
| UPC | 883778101052 |
| GTIN | 00883778101052 |
| Item Type | General Purpose Switches |
| Size | Compact |
| Environmental Conditions | Indoor Dry unless protected by additional means |
| Operating Temperature | Max Continuous- 60 Degrees C, Minimum- -20 Without Impact |
| Voltage Rating | 120 |
| Wattage | 1800 W |
