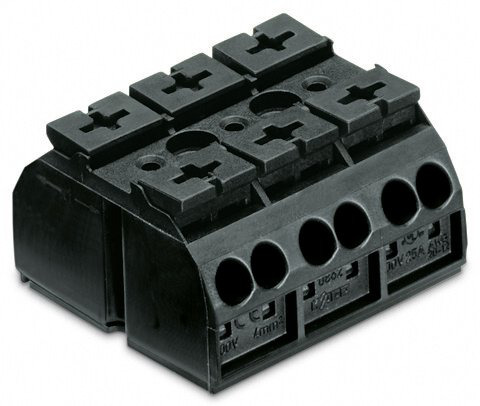

Feed-through/thru chassis-mount terminal strip with 1-deck/level - Wago (862 series) - Black - 3 feed-through poles (3P) / 12-wires (6 push-in + 6 push-in) (6+6) - for 0.5mm2...4mm2 / for #20AWG...#12AWG - Rated current 32A - with Push-in CAGE CLAMP spring connections - 3mm screw+nut mounting
- MFR:
- WAGO
- MFR #:
- 862-503
- UPC:
- 4044918509008
- Item #:
- 29478
Feed-through/thru chassis-mount terminal strip with 1-deck/level - Wago (862 series) - Black - 3 feed-through poles (3P) / 12-wires (6 push-in + 6 push-in) (6+6) - for 0.5mm2...4mm2 / for #20AWG...#12AWG - Rated current 32A - with Push-in CAGE CLAMP spring connections - 3mm screw+nut mounting
- MFR #:
- 862-503
- UPC:
- 4044918509008
- Item #:
- 29478
Availability
| Location | Available Qty |
|---|---|
| Available | 17 ea |
$1.92
each
| Catalog Number | 862-503 |
| Manufacturer | WAGO |
| Brand | WAGO |
| Country of Origin | Germany |
| Made in USA | No |
| Actuator | Push-button |
| Color | black |
| Conductor Material | Copper |
| Conductor Range | 12-20 AWG Conductor Range |
| Connection | Terminals (Cage-clamp) |
| Current Rating | 32 A |
| Material | Polyamide (PA66) |
| RoHS Indicator | Yes |
| UPC | 4044918509008 |
| GTIN | 4044918509008 |
| Item Type | Terminal strip |
| Dimensions | H22.3mm x W36mm x D35mm |
| Width | 1.417 |
| Width UOM | Inch |
| Depth | 35 mm / 1.378 inches |
| Depth UOM | Inch |
| Weight | 20.488 |
| Weight UOM | Grams |
| Voltage Rating | 500 |
