Telemecanique

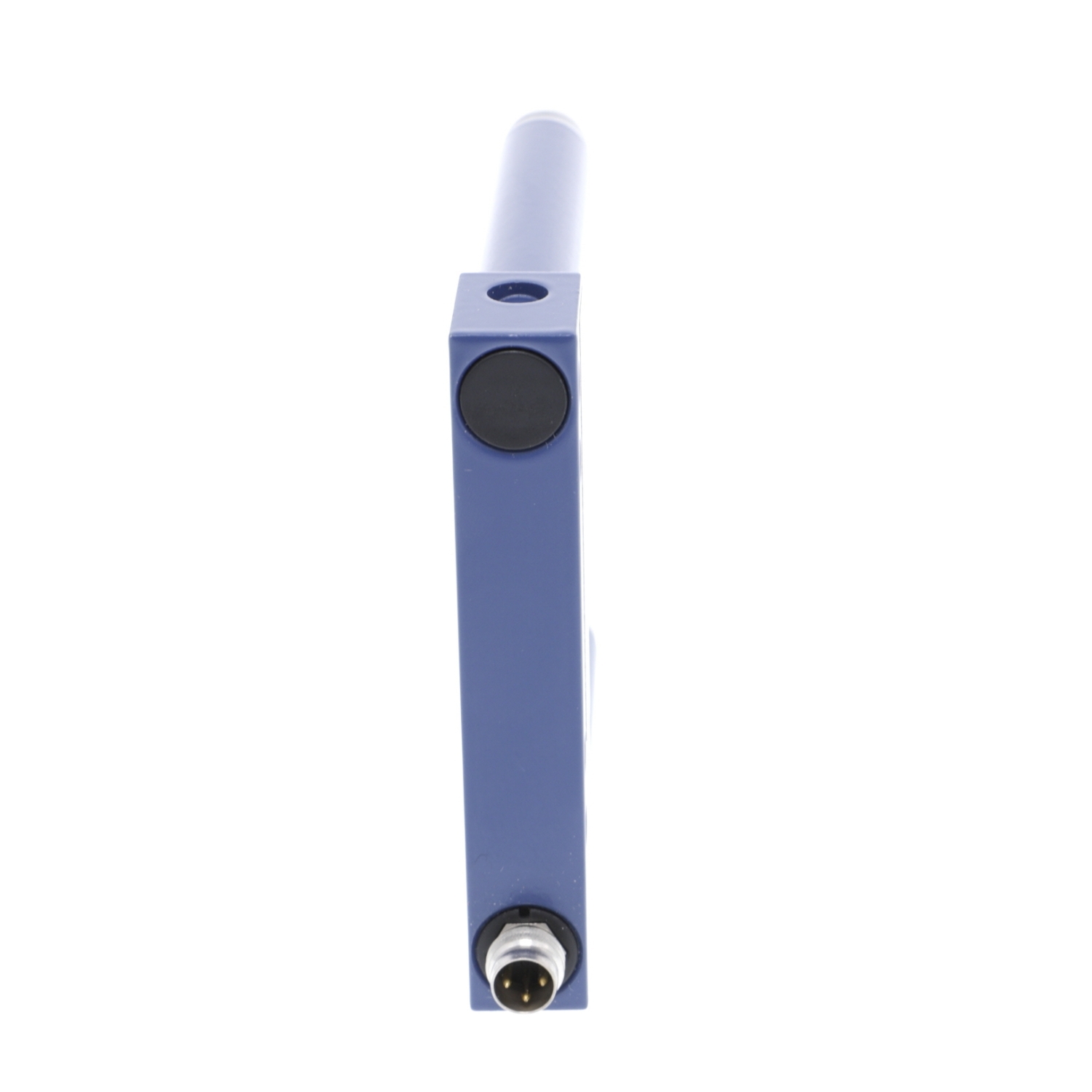

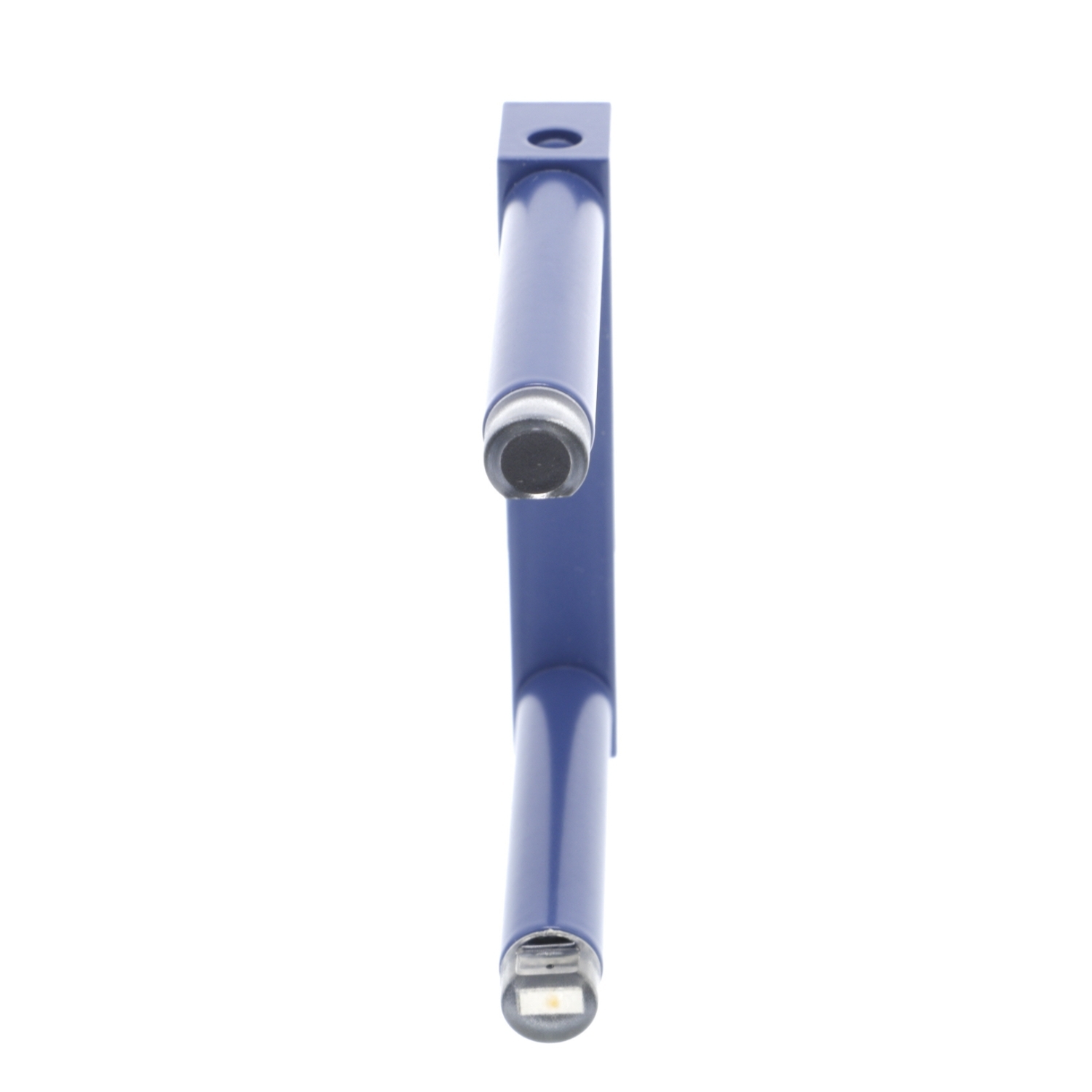

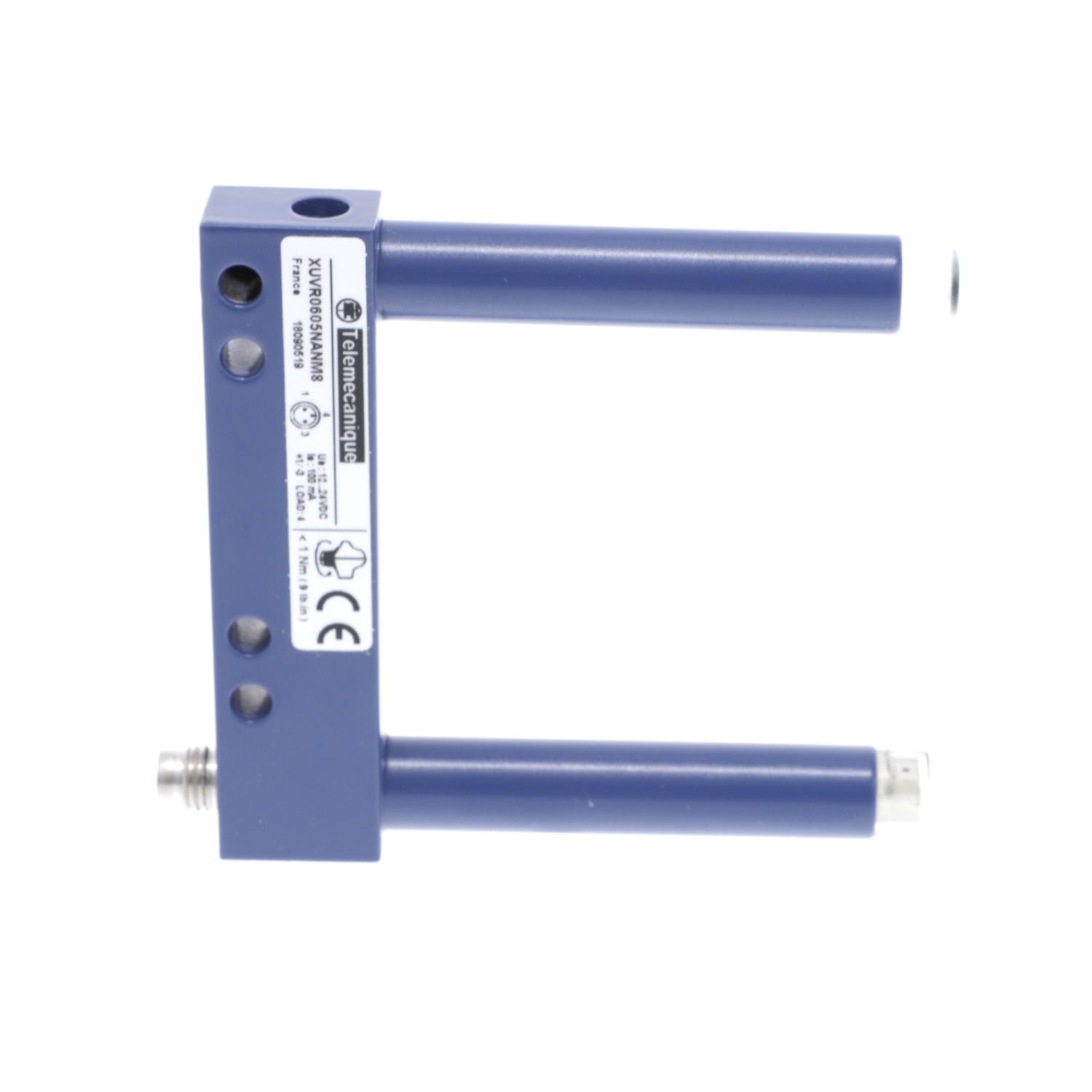

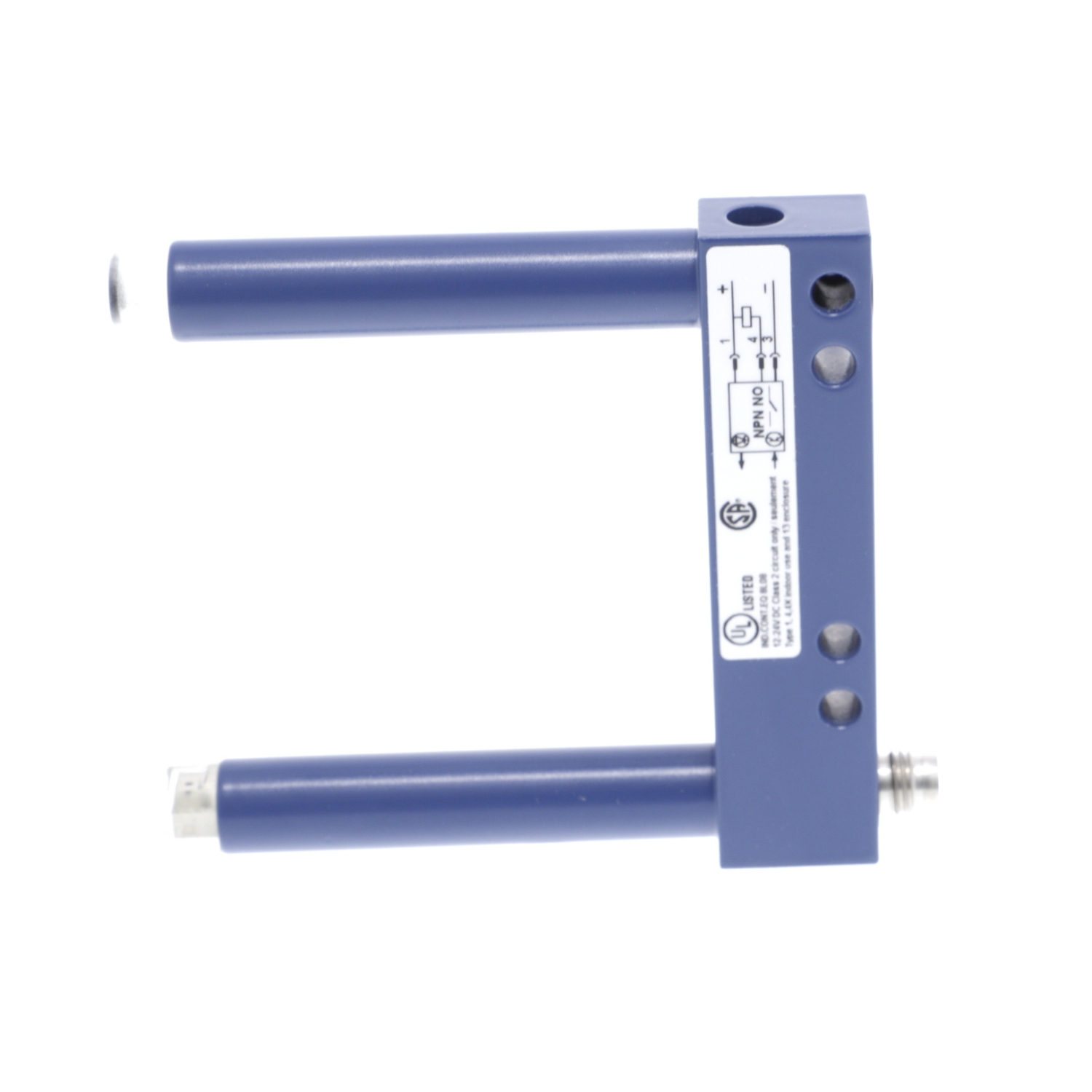

XUVR0605PANM8 OsiSense XU 3-Wire Optical Fork Photoelectric Sensor, 1.97 in, Infrared Sensing Beam, PNP 1NO Output

MFR:
Telemecanique Sensors
MFR #:
XUVR0605PANM8
UPC:
785901943310
Item #:
293451

Availability

Location Available Qty
Available Available to Order
$243.89 each

This single mode (thru-beam system) optical fork has a painted aluminium and polyamide (case). It has a supply voltage of 12V to 24V DC. This optical thru-beam non-adjustable fork has a painted aluminium and polyamide construction, is mountable directly on a surface or bracket, thanks to its 4 fixing points. It has a corrosion resistant and non magnetic painted aluminium casing. 1 LED display allows to identify status of the sensor. IP65 and IP67 protection makes this product ready for the harshest environments. It can operate in very cold (-25C) and hot environments (+55C). It has a standard M8 connector, compatible with all existing market sensor cabling. It provides high immunity to ambient light up to 10,000 lux. It is CSA and UL certified.

Manuals and Documentation
Catalog Number XUVR0605PANM8
Manufacturer Telemecanique Sensors
Brand Telemecanique
Warranty Description Contractual Warranty:18 months
Country of Origin France
Made in USA No
Application Detection on small conveyor
Connection 1 male connector M8, 3 pins
Enclosure IP65-IP67,PAINTED ALUMINIUM AND POLYAMIDE/GLASS
Output PNP;1 NO;Discrete;Solid state
Sensing Range 50-50 MM
Special Features Output state 1 LED yellow)
Standard IP65-IP67,UL-CSA-CE
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=876088&lang=en-us
UPC 785901943310
GTIN 03389119040723
Item Type General purpose;Thru beam;Fork;Photo-electric sensor
Size FORK
Operating Temperature -10-60 A�C
Voltage Rating 12...24 V DC reverse polarity protection
