Telemecanique

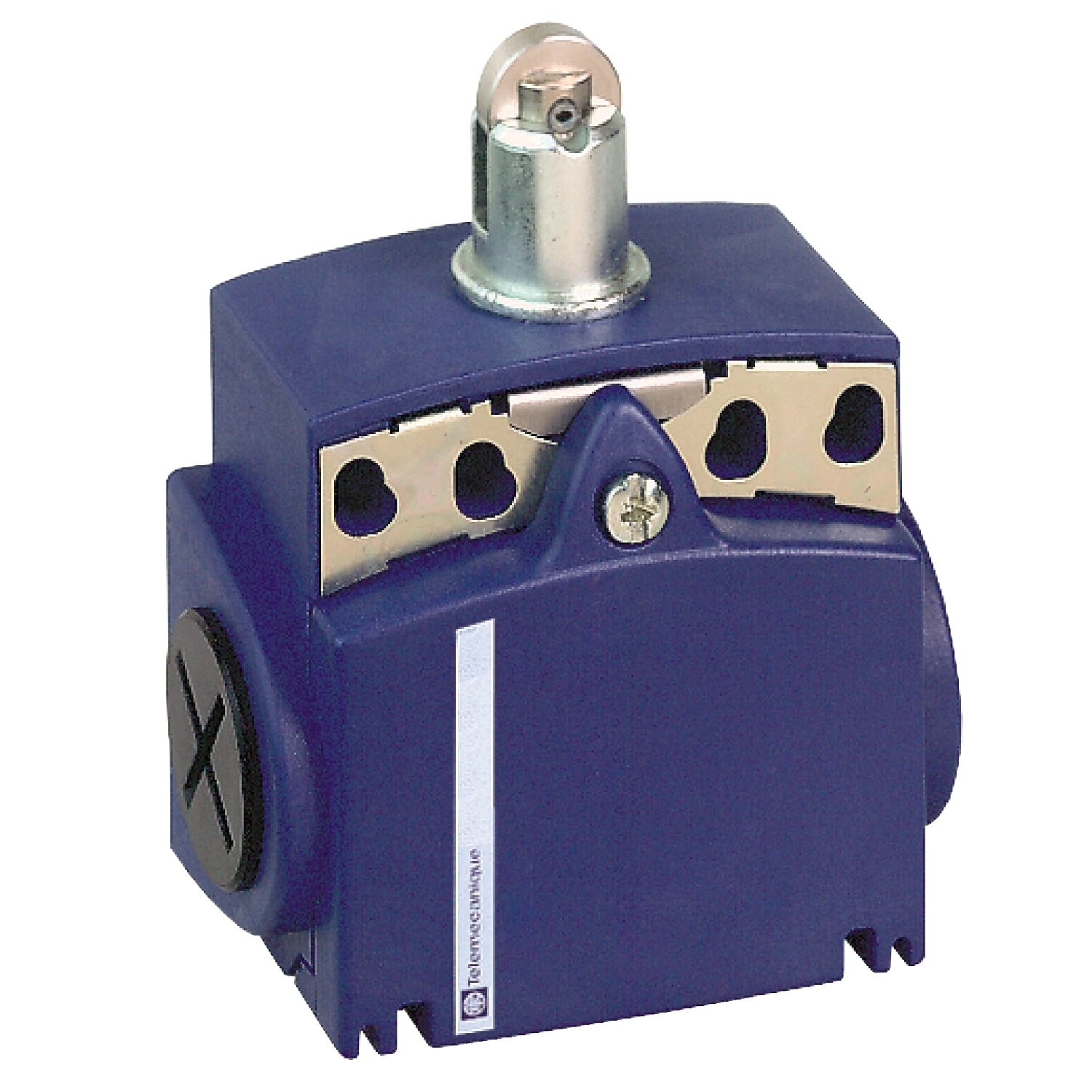

XCKT2102N12 XCKT Standard Plunger Actuated Limit Switch, 300 V AC, 10 A, Spring Return Roller Plunger Actuator, 1NO-1NC Contact, 2 Poles

MFR:
Telemecanique Sensors
MFR #:
XCKT2102N12
UPC:
785901269618
Item #:
29317

Availability

Location Available Qty
Available Available to Order
$163.76 each

limit switch XCKT - steel roller plunger - 1NC+1NO - snap - 1/2NPT

Manuals and Documentation
Catalog Number XCKT2102N12
Manufacturer Telemecanique Sensors
Brand Telemecanique
Warranty Description Contractual Warranty:18 months
Country of Origin Indonesia
Made in USA No
Action Lateral approach, 2 directions;Snap action;By 30 Degrees cam
Actuator Spring return roller plunger metal
Amperage Rating 10
Application COMPACT VARIABLE
Connection Screw-clamp terminals 1 x 0.34...2 x 1.5 mm²
Contact Configuration 1 NC + 1 NO
Enclosure NEMA 1/2/4/6/12/13 IP66/67
Mounting By The Body
Number of Poles 2
Operating Cycles 5000000 CYCLES, DC-13, 120 V, 4 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13, 24 V, 10 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13, 48 V, 7 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C
Special Features FIXED,PLASTIC
Standard 25 GN 10-500 HZ)IEC 60068-2-6,50 GN 11 MS IEC 60068-2-27,EN 60947-5-1-IEC 60204-1-UL 508-EN 60204-1-CSA C22.2 NO 14-IEC 60947-5-1,IK04 EN 50102,IP66 IEC 60529-IP67 IEC 60529,UL-CCC-CSA,CLASS II IEC 61140-CLASS II NF C 20-030
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=857450&lang=en-us
UPC 785901269618
GTIN 03389110305678
Item Type Limit switch
Size 2 ENTRIES TAPPED FOR 1/2 NPT CABLE GLAND,COMPACT FORM C CONFORMING TO CENELEC EN 50047,FIXED
Operating Temperature -25-70 A Degrees C
Voltage Rating 240VAC/250VDC
