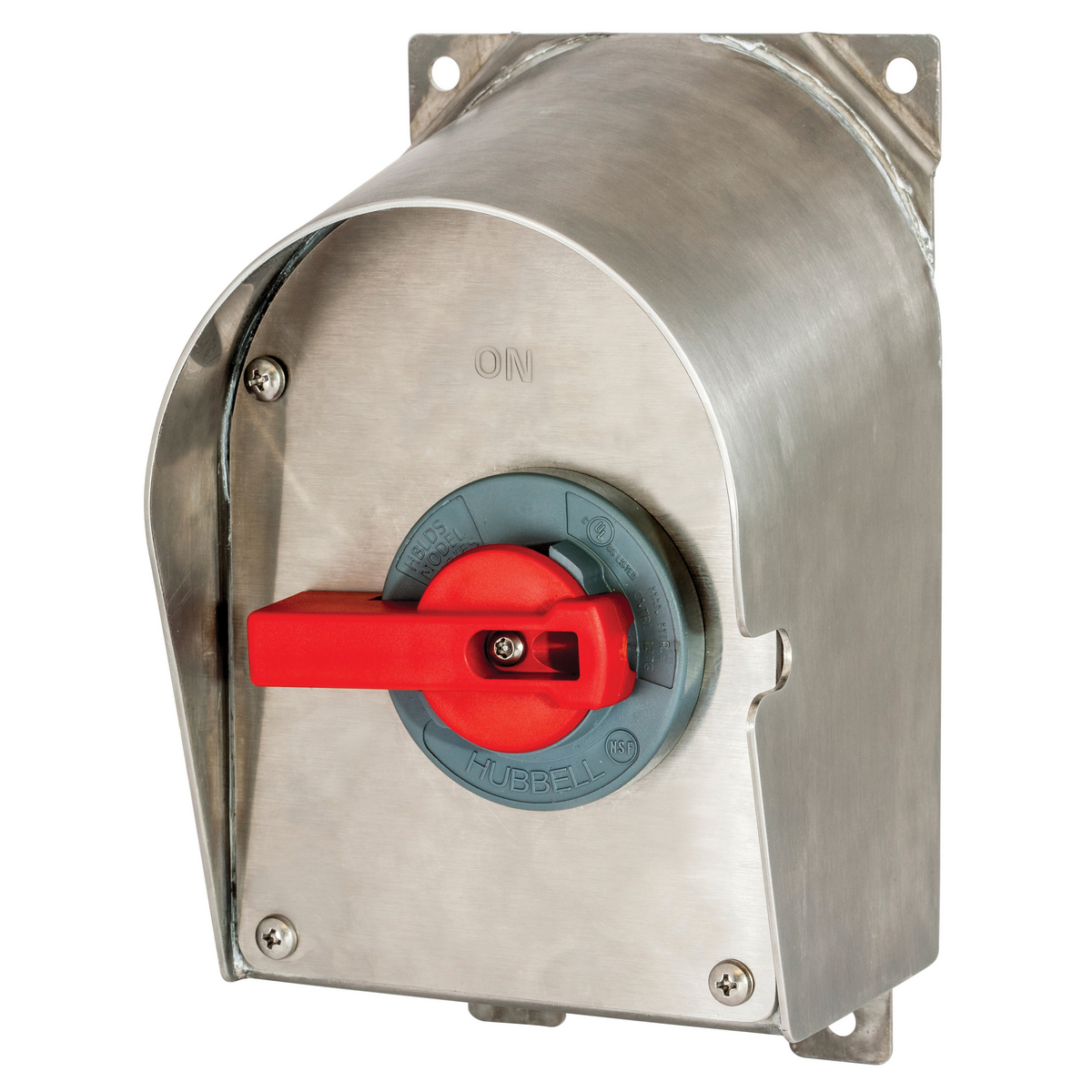

HBLDS3SSR Sloped Top Standard Unfused Enclosed Disconnect Switch, 600 V, 30 A, 15 hp, 3 Poles
- MFR:
- Hubbell Wiring Device-Kellems
- MFR #:
- HBLDS3SSR
- UPC:
- 783585541549
- Item #:
- 291115
HBLDS3SSR Sloped Top Standard Unfused Enclosed Disconnect Switch, 600 V, 30 A, 15 hp, 3 Poles
- MFR #:
- HBLDS3SSR
- UPC:
- 783585541549
- Item #:
- 291115
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$943.99
each
NEC section 430.102(B) requires each motor controller to have a disconnect within line of sight from the motor and driven equipment. Hubbells Circuit-Lock Unfused Disconnect Switches are UL listed as a manual motor controller and also suitable as a motor disconnect and meet these code requirements.
Manuals and Documentation
| Catalog Number | HBLDS3SSR |
| Manufacturer | Hubbell Wiring Device-Kellems |
| Brand | Hubbell Wiring Device - Kellems |
| Country of Origin | Poland |
| Made in USA | No |
| Application | Labelless |
| Connection | Pressure Screw Terminals |
| Current Rating | 30 AMPS |
| Enclosure Type | Type 4X, IP69k |
| Mounting | Screw |
| Number of Poles | 3 |
| Power Rating | 18000 W |
| Special Features | Sloped Version |
| Standard | UL508 |
| UPC | 783585541549 |
| GTIN | 00783585541549 |
| Item Type | Disconnect Switches |
| Size | 8.6 in x 5.41 in x 4.92 in |
| Temperature Rating | Minimum Continuous -40 Deg C without Impact |
| Terminals | Terminal Screws |
| Voltage Rating | 600 |
