EATON

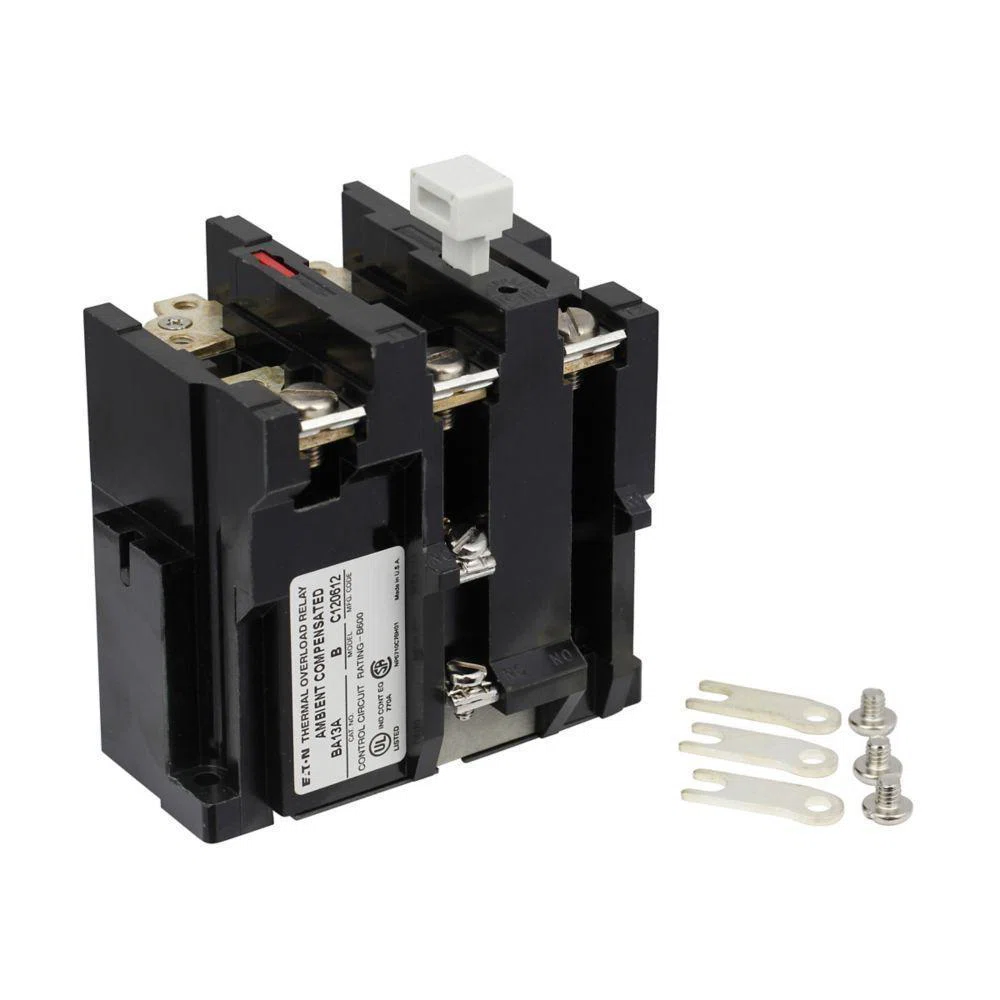

BA13JP A200 Type B Class 20 Thermal Overload Relay, 0.25/26.2 A, 1NC 1 Form B Contact

MFR:
Eaton
MFR #:
BA13JP
UPC:
786678002972
Item #:
288847

Availability

Location Available Qty
Available Available to Order
$803.10 each

Eaton's Freedom starters and contactors feature a compact, space-saving design, using state-of-the-art technology and the latest in high strength, impact and temperature resistant insulating materials. In addition to the bimetallic overload, Eaton also offers a series of electronic overload relay (C440) available as a standalone unit and assembled with Freedom contactor.

Manuals and Documentation

Features

  • Heaters required
  • Inverse time delay trip
  • Alarm contact field mountable
  • Test trip device for weld check
  • High visibility up front trip indication
  • 3-poles type B overload relay is a suitable alternative to a 3-poles type A overload relay in manual reset mode
  • Ambient compensation standard
  • The type B overload relay is designed to protect industrial motors against overload conditions, using modern block-type, bimetallic design, this relay will provide class 20 operation in either 1 phase or 3-phase applications
  • Trip-free reset mechanism
Manufacturer Part Number BA13JP
Brand EATON
Manufacturer Eaton
UPC 786678002972
Country Of Origin US
Amperage Rating 0.25/26.2 A
Dimensions 5 x 3.6 x 3.4 in
Enclosure Type NEMA 5
Mounting Type Panel
Series A200
Temperature Rating 40 to 75 deg C
Type Type B Class 20
Alternative Part Number 7438825
Manufacturer Item Status Active
Country USA
Warranty 1 year
Standards Approvals UL Listed,CSA Certified
Application Contactors, Motor and Power Control Equipment, Industrial Facilities and Factories Facility Applications
Contact Form 1NC 1 Form B
Number Of Poles 3
Terminal Type Threaded
