Discontinued
Square D

AL800M23K PowerPact MasterPact Mechanical Lug Kit, 8 to 1/0 AWG, 14 to 1/0 AWG, For Use With 800 A M and P Frame Circuit Breaker

MFR:
Schneider Electric
MFR #:
9013GHR2J63
UPC:
785901188728
Item #:
288664

Availability

Location Available Qty
Available Available to Order

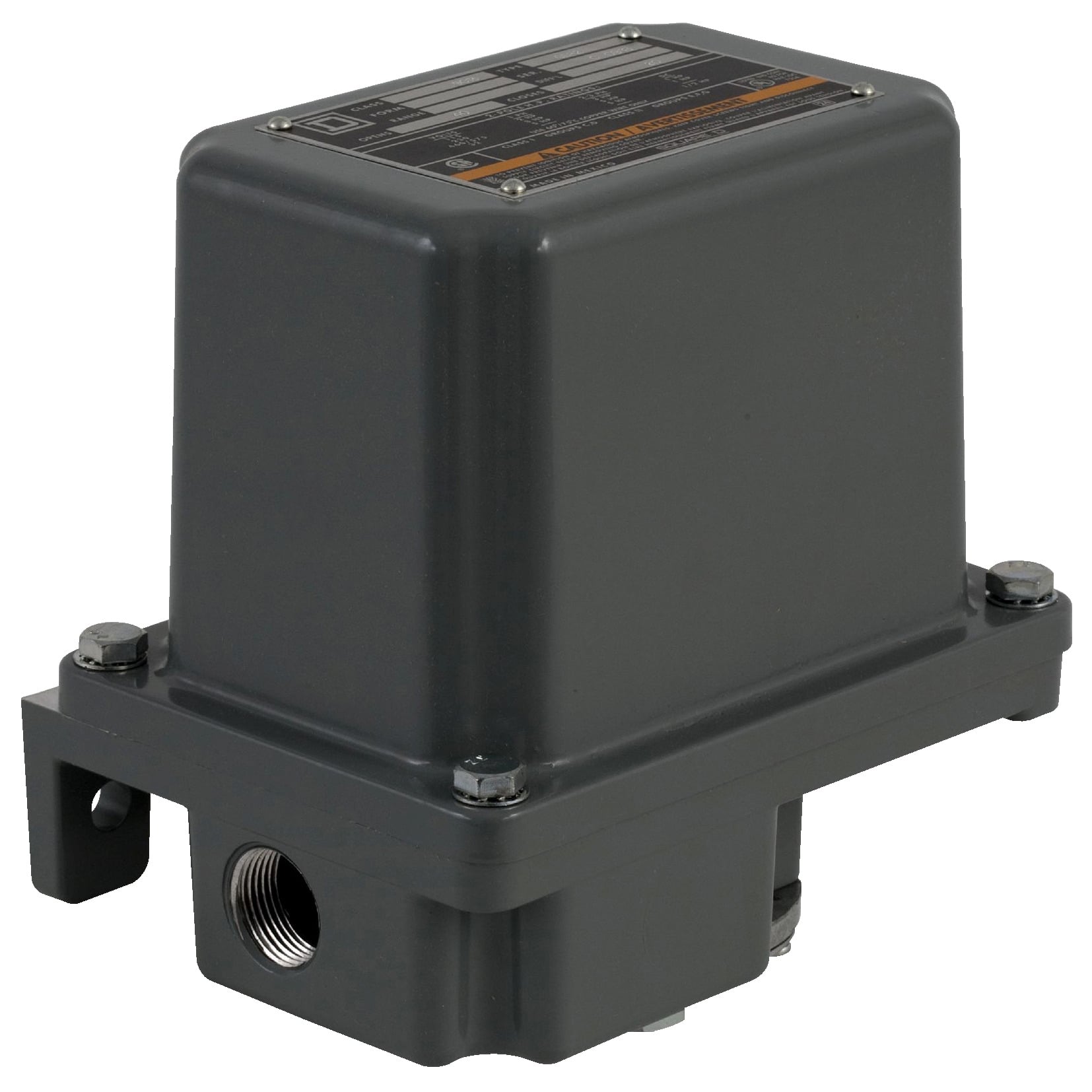

pump or compressor switch 9013GH - adjustable diff. - 145-175 psi

Manuals and Documentation
Catalog Number 9013GHR2J63
Manufacturer Schneider Electric
Brand Square D
Country of Origin Mexico
Made in USA No
Application 1.5 KW 2 HP)115 V AC, 1 PHASE-3.7 KW 5 HP)575 V AC, 3 PHASE-2.2 KW 3 HP)115 V AC, 3 PHASE-2.2 KW 3 HP)230 V AC, 1 PHASE-0.75 KW 1 HP)115 V DC-0.75 KW 1 HP)230 V DC-3.75 KW 5 HP)230 V AC, 3 PHASE-3.7 KW 5 HP)460 V AC, 1 PHASE-3.7 KW 5 HP)460 V AC, 3 PHASE-3.7 KW 5 HP)575 V AC, 1 PHASE,CONTROL ELECTRICALLY DRIVEN WATER PUMPS AND AIR COMPRESSORS,REGULATION BETWEEN 2 THRESHOLDS
Contact Configuration 2 NC, SNAP ACTION, DPST-DB, FORM YY
Enclosure NEMA 7 UL 698-NEMA 9
Operating Cycles 10 CYC/MN
Process Connection 0.25 INCH NPSF INTERNAL UL 508
Special Features -
Standard CSA FILE LR26817-UL LISTED FILE E12443,IP20 IEC 60529,UL 508-CE-NSF ANSI 372
UPC 785901188728
GTIN 00785901188728
Item Type ADJUSTABLE DIFFERENTIAL,ELECTROMECHANICAL PRESSURE SWITCH
Environmental Conditions FOR HAZARDOUS LOCATION USAGE - EXPLOSION PROOF (INDOOR)
Operating Temperature -33-257 A Degrees C
System Pressure 200 PSI 35-150 PSI)
